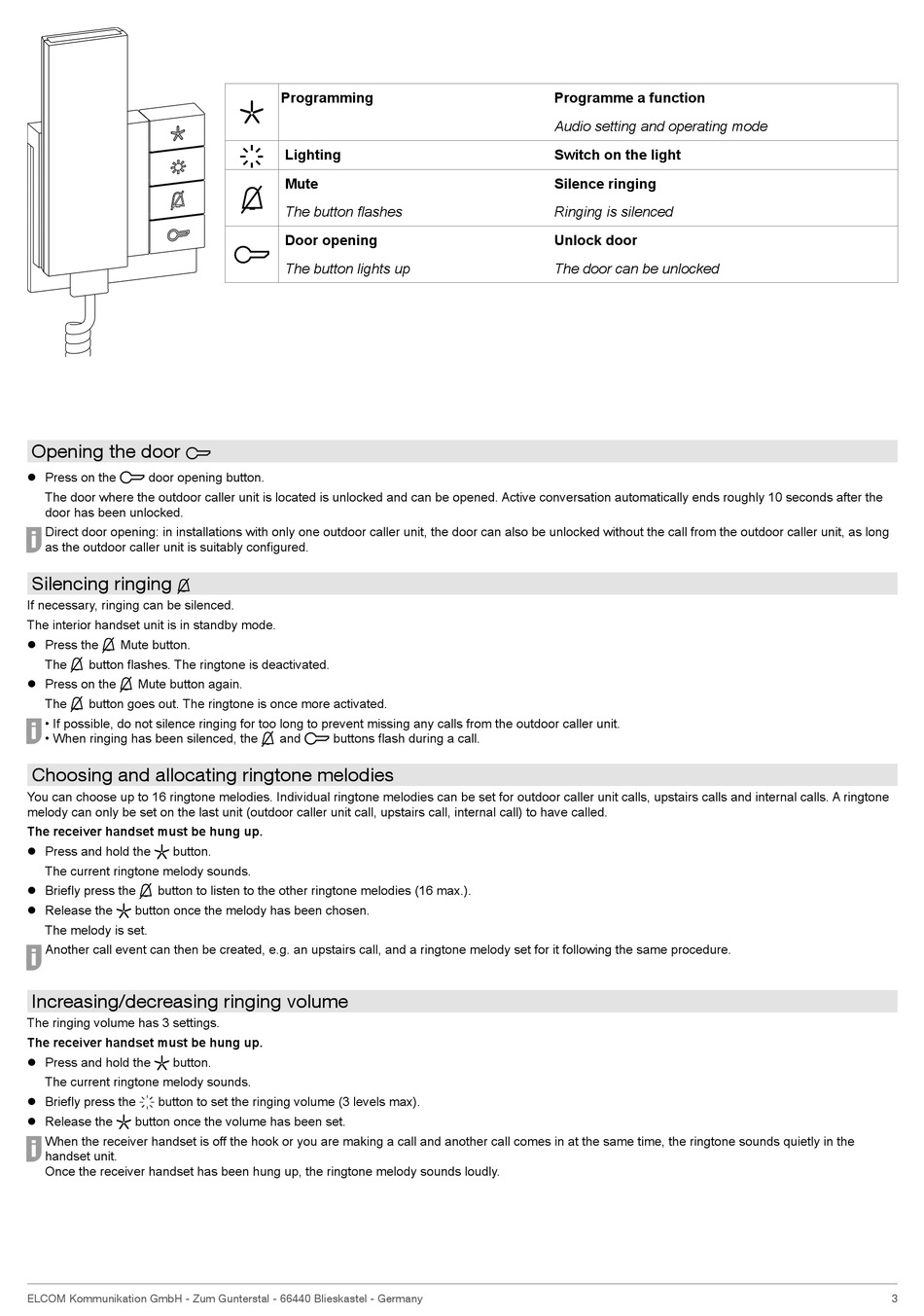

Programming; Audio Setting And Operating Mode; Lighting; Mute - ELCOM REK241Y User Manual

Opening the door

z Press on the door opening button.
The door where the outdoor caller unit is located is unlocked and can be opened. Active conversation automatically ends roughly 10 seconds after the
door has been unlocked.
Direct door opening: in installations with only one outdoor caller unit, the door can also be unlocked without the call from the outdoor caller unit, as long
P
as the outdoor caller unit is suitably configured.

Silencing ringing

If necessary, ringing can be silenced.
The interior handset unit is in standby mode.
z Press the Mute button.
The button flashes. The ringtone is deactivated.
z Press on the Mute button again.
The button goes out. The ringtone is once more activated.
• If possible, do not silence ringing for too long to prevent missing any calls from the outdoor caller unit.
P
• When ringing has been silenced, the

Choosing and allocating ringtone melodies

You can choose up to 16 ringtone melodies. Individual ringtone melodies can be set for outdoor caller unit calls, upstairs calls and internal calls. A ringtone
melody can only be set on the last unit (outdoor caller unit call, upstairs call, internal call) to have called.
The receiver handset must be hung up.
z Press and hold the button.
The current ringtone melody sounds.
z Briefly press the button to listen to the other ringtone melodies (16 max.).
z Release the button once the melody has been chosen.
The melody is set.
Another call event can then be created, e.g. an upstairs call, and a ringtone melody set for it following the same procedure.
P

Increasing/decreasing ringing volume

The ringing volume has 3 settings.
The receiver handset must be hung up.
z Press and hold the button.
The current ringtone melody sounds.
z Briefly press the button to set the ringing volume (3 levels max).
z Release the button once the volume has been set.
When the receiver handset is off the hook or you are making a call and another call comes in at the same time, the ringtone sounds quietly in the
P
handset unit.
Once the receiver handset has been hung up, the ringtone melody sounds loudly.
ELCOM Kommunikation GmbH - Zum Gunterstal - 66440 Blieskastel - Germany

Programming

Lighting

Mute

The button flashes

Door opening

The button lights up
and buttons flash during a call.
Programme a function

Audio setting and operating mode

Switch on the light
Silence ringing
Ringing is silenced
Unlock door
The door can be unlocked
3
