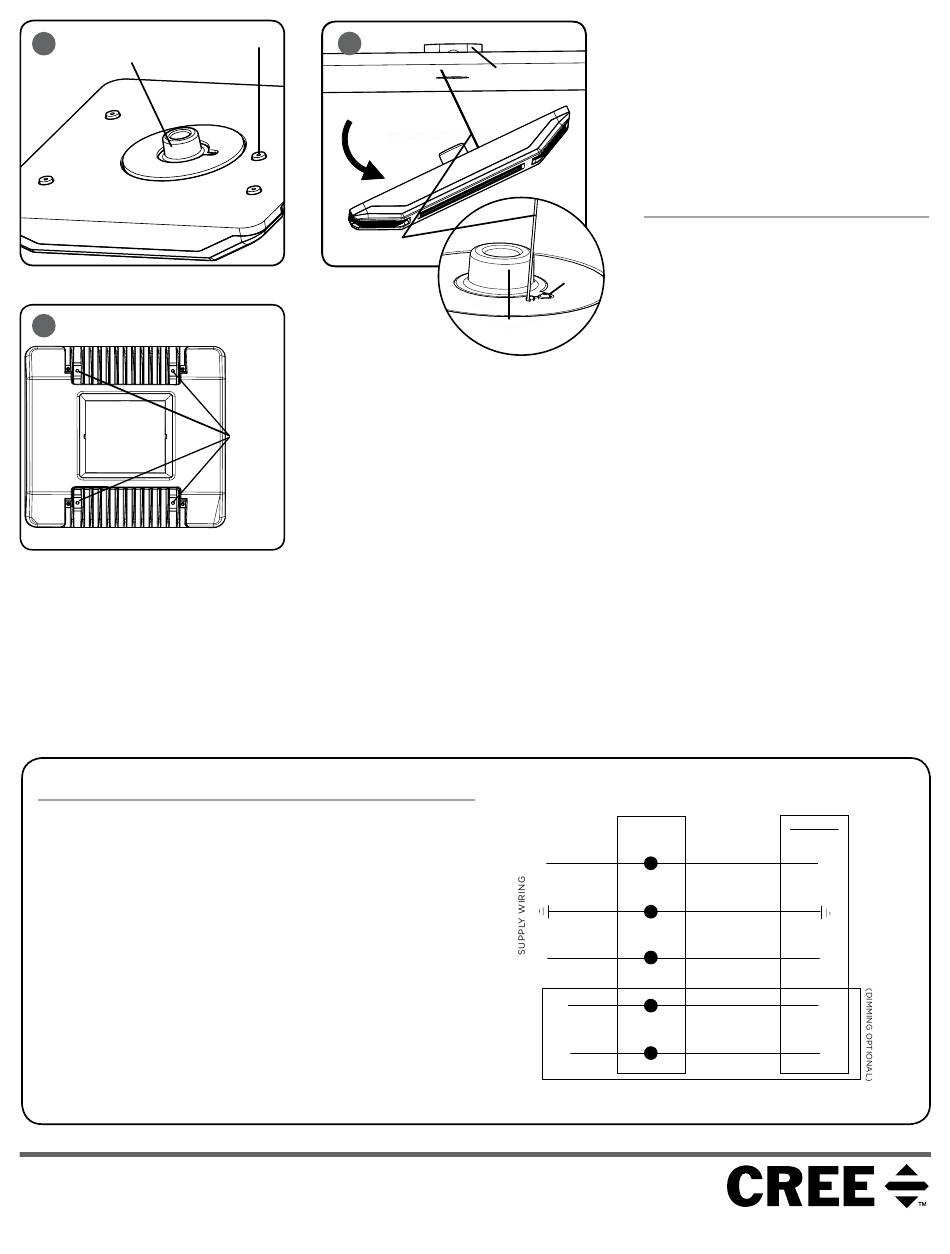

Cree CPY Series Installation Instructions page 2

4
Alignment Hole
Threaded Hub
6
ELECTRICAL CONNECTIONS
STEP 1:
Make the following Electrical Connections :
a. Connect the black fixture lead to the voltage supply position
of the terminal block or Hot 1 (for 208/240V wiring).
b. Connect the white fixture lead to the neutral supply position
of the terminal block or Hot 2 (for 208/240V wiring).
c. Connect the green or green/yellow ground lead to the green
wire position of the terminal block.
d. If Dimming is an option; connect the violet dimming positive
lead to the supply dimming positive lead.
e. If Dimming is an option; connect the grey dimming negative
lead to the supply dimming negative lead.
© 2015 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change.
See www.cree.com/lighting/products/warranty for warranty and specifications. Cree® is a registered
trademark, and the Cree logo is a trademark of Cree, Inc.
2 of 2
5
Air Craft
Cable
Insert
Mounting
Screws
STEP 4:
Bring luminaire to canopy and insert threaded
hub into the 2.0" Stem Hole that was cut in Step
Junction Box 2. Rotate luminaire until alignment screw seats
into the 0.325" Alignment Hole that was cut in
Step 3. See Figure 4.
STEP 5:
Continue to Step 2 in "Direct Mount - Canopy
Applications" section.
DIRECT MOUNT OVER JUNCTION BOX
NOTE:
junction box. Junction box must be 4" square or
octagon.
Cable
Hole
STEP 1:
Attach Air Craft Cable, provided in the hardware
Threaded bag, using supplied #8 pan head screw to
Hub
luminaire near the threaded hub as shown in
Figure 5.
STEP 2:
Attach other end of the Air Craft Cable to the
customer supplied junction box using supplied
#8 pan head screw. Then carefully let the
fixture hang down for wiring. See
STEP 3:
Make wiring connections into junction box per
"Electrical Connections" section.
STEP 4:
To mount luminaire to ceiling, feed the
threaded hub into the junction box, making sure
no wires are pinched and luminaire is flushed
with ceiling.
STEP 5:
Insert and tighten (4) supplied sheet metal
screws to metal ceiling. If ceiling isn't metal
use appropriate customer supplied hardware.
See
TERMINAL
BLOCK
LINE
OR HOT 1
GREEN
NEUTRAL
OR HOT 2
VIOLET
GREY
For use with customer supplied
Figure 5.
Figure 6.
LUMINAIRE
LINE-BLACK
GROUND-GREEN
NEUTRAL-WHITE
DIM (+) VIOLET
DIM (-) GREY
www.cree.com/lighting
CI391X01R2
