Procedure

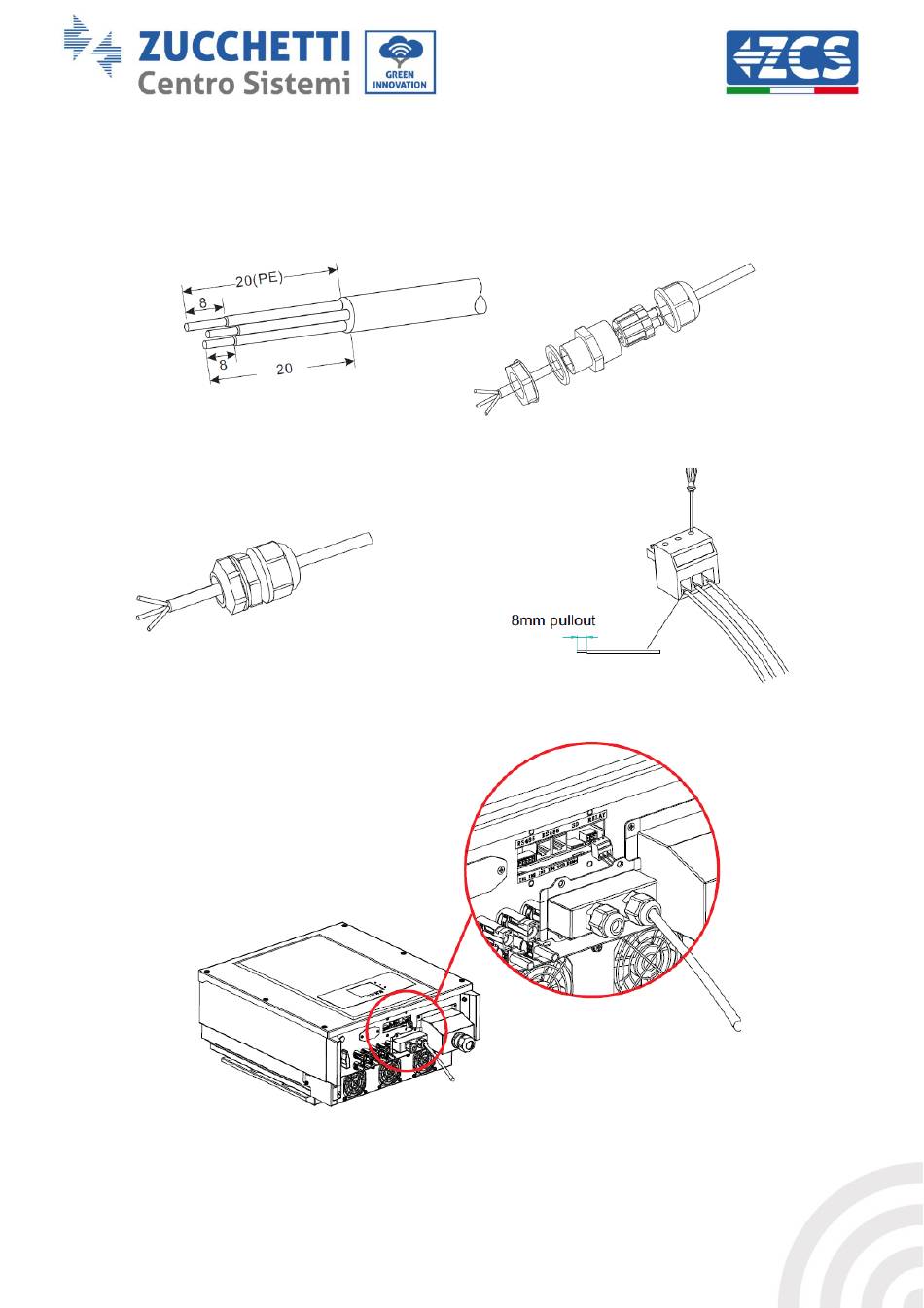

1) Prepare the appropriate cable. Remove the insulating sheath, as shown in the figure below; then pass
the cable through the waterproof nut.
2) Insert the sealing cap and tighten the nut.
3) Connect the stripped cable into the appropriate terminal of the terminal block.
Manual of 07/06/2019 Rev. 1.1 "User Manual for 20K-33KTL"
Identificazione: MD-AL-GI-00
Rev. 4.0 del 31.01.18 - Applicazione: GID
Connecting the relay cable
43 / 74
