Dynabrade 53514 Manual

3" extension flapper

Advertisement

Quick Links

Models:
53514 — 18,000 RPM
Index Key
No. Part
Description
1
01484 Collet Cap
4
51078 Bearing (3)
5
53558 Housing Spindle
6
53556 Spindle
7
51075 Wavy Washer
8
53551 Coupling Nut
9
53550 Adapter
10 51072 Coupler
11 53175 Collar
12 95711 Snap Ring
13 51066 Rotor Nut
14 01007 Bearing
15 01121 Shim (as req.)
16 01121 Shim (as req.)
17 01010 Spacer
18 01008 Front Bearing Plate
19 50767 Pin (2)
20 01011 Blades (4/pkg.)
21 01148 Rotor
22 01013 Cylinder
23 01245 Rear Bearing Plate
24 01015 Bearing
25 01477 Valve Stem
26 57344 Throttle Lever Assembly
27 53499 Housing - 53514
28 01017 Spring Pin
29 95558 Retaining Ring
30 95730 O-Ring
31 01247 Speed Regulator
32 01024 O-Ring
33 01464 Seal
34 01472 Tip Valve
35 01468 Spring
36 01642 Air Control Ring
37 95711 Retaining Ring
38 95438 O-Ring
39 94521 Muffler Base
40 94528 Muffler
41 94522 Muffler Cap
42 95375 O-Ring
43 94526 Spacer
44 94523 Inlet Adapter
45 94519 Muffler Assembly
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
6
18
16
14
15
34
33
Oil
O
Loctite/Hernon: L
L
L
= Loctite #380, L
3
Torque: N•m x 8.85 = In. - lbs.
T
T
= 8.5 N•m, T
2
T
= 28 N•m, T
5

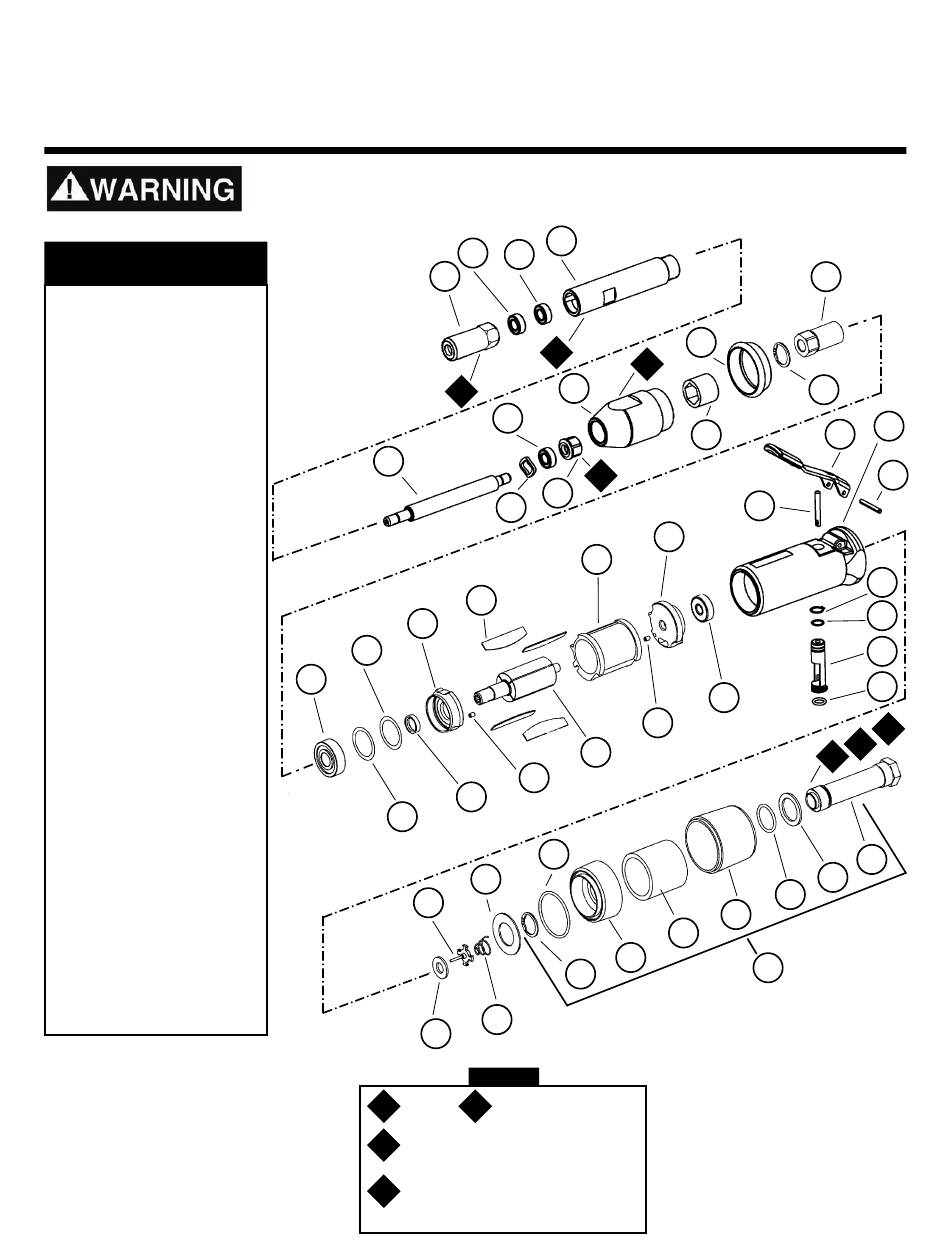

3" Extension Flapper
5
4
4
1
T
6
9
T
3
4
T
3
8
7
22
20
21
19
17
38
36
37
35
KEY
Grease
G
= Loctite #271
2
= Loctite #567
4
= 17 N•m, T
= 23N•m,
3
4
= 34 N•m
6
Parts Page Reorder No. PD98•26
Effective June, 1998
Air Motor and Machine Parts
11
T
6
10
25
23
24
19
42
41
40
39
45
13
12
27
26
28
29
30
31
32
O
L
2
T
4
44
43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53514 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynabrade 53514

  • Page 1 53514 — 18,000 RPM Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
  • Page 2: Operating Instructions

    2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example : if the tool specification state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
  • Page 3 2-4 with different shim if necessary. 6. Once proper rotor gap clearance is achieved, install well lubricated 01001 Blades (4) into rotor slots. Dynabrade recommends using their 95842 Air Lube. 7. Install cylinder over rotor. Be sure air inlet holes of cylinder face away from 01008 Front Bearing Plate.
  • Page 4: Optional Accessories

    DYNABRADE Visit our new Web Site at http://www.dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 • Fax: 352 76 84 95 ©...
