Dynabrade Dynisher 50730 Important Operating, Maintenance And Safety Instructions

Models:

50730 – Standard Duty
50760 – Versatility Kit
WARNING
!
Index Key
No. Part # Description
1 95179 Bolt
2 95023 Bolt
3 95167 Washer (3)
4 95166 Washer (2)
5 50733 Handle Bracket
6 50734 U Handle Bracket
7 50753 Handle Grip Assembly
(Incl. 50752 Rod, 95169 Grip)
8 95158 Bolt
9 50749 Wheel Guard
10 95227 Washer (3)
11 95207 Screw (2)
12 50745 Handle Locking Nut
13 95594 Spring
14 95405 Screw
15 95146 Washer (2)
16 95407 O-Ring
17 95309 Screw (2)
18 50748 Silencer
19 95168 Screw (4)
20 50744 Handle Mounting Stud
21 50732 Cover
22 95350 Drive Belt
23 95178 Screw
24 50740 Driven Pulley
25 95364 Washer
26 95210 Screw (5)
27 50743 Bearing Plate
28 50741 Spacer
29 50722 Bearing (2)
30 95446 Washer (2)
31 11813 Bearing (2)
32 95447 Washer (2)
33 50762 Driven Gear
34 50761 Drive Gear
35 50766 Nut
36 11013 Bearing
37 50759 Tension Arm
38 50747 Tension Spring
39 95515 Screw (4)
40 50731 Housing
41 95365 Woodruff Key (2)
42 50736 Wheel Arbor
43 50716 Washer
44 50737 Arbor Locking Screw
45 95406 View Port Screw
46 95097 Grease Fitting
47 50751 Spring Mount
48 95163 Screw
49 95368 Woodruff Key
50 50763 Drive Gear Shaft
51 07101 Air Motor
52 95746 Air Regulator
53 50719 Wheel Wrench
54 50679 Wrench
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
2
1
T 8 N•m
13
12
A
2
23 22
A
24
A
2
A
1
26
10
25
8 N•m T
27
A
2
A
31
32
G
1
41
A
1
42
54
53
See reverse side for Air Motor Assembly.
Dynisher
3 4 5
14
16
15
18
19
2
21
20
28
A
1
35
29
36
37
30
1
33
34
43
Parts Page Reorder No. PD01•10
Effective February, 2001
Supercedes PD92•12

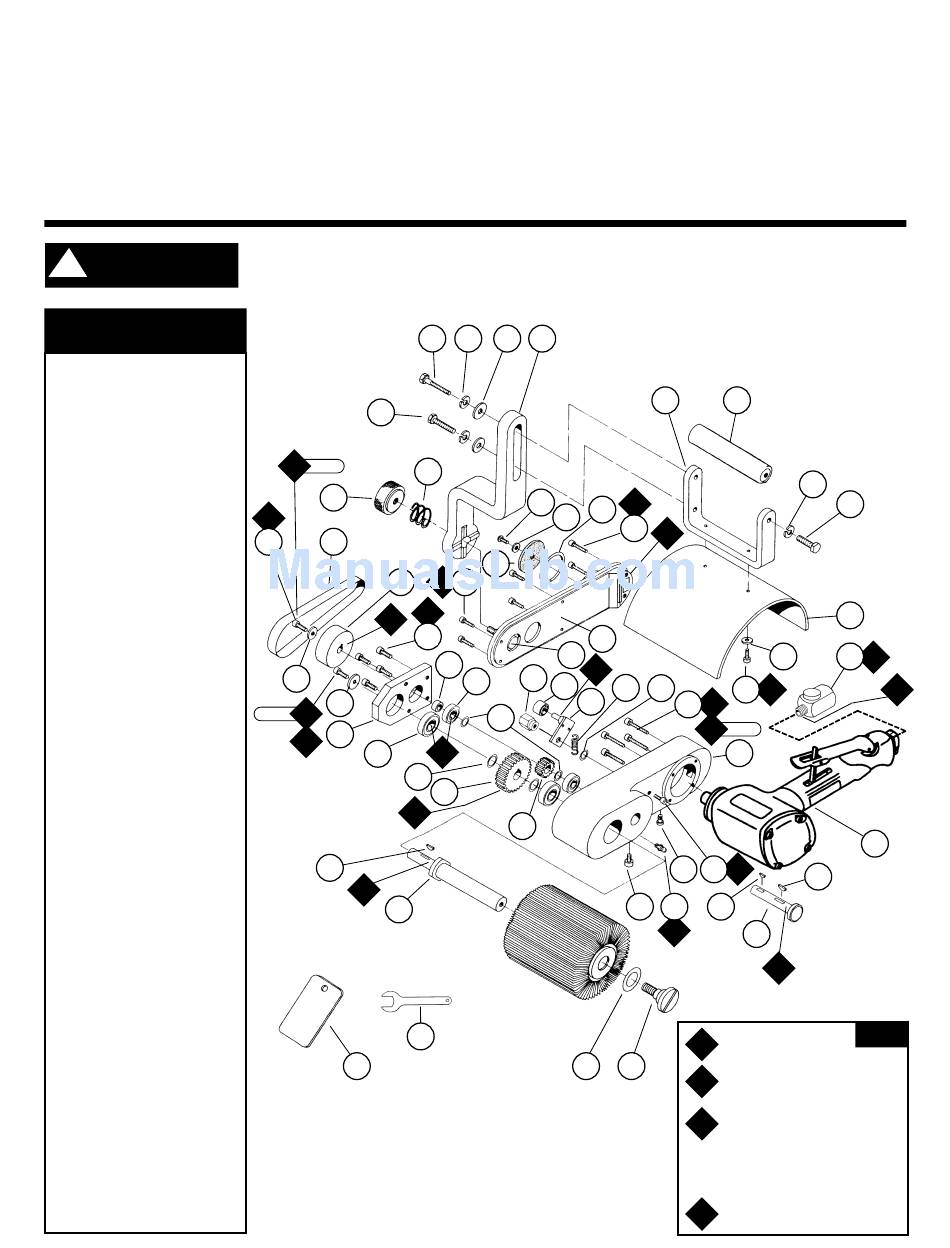

Machine and Motor Parts.
6 7
A
2
17
A
9
10
A
38 15
11
2
A
39
2
8 N•m
T
40
A
47 48
2
45 49
46
G
1
50
A
1
Oil: O = Air Lube
O
1
44
G
Grease: G = Lubriplate 630AA
1
Adhesive: A = Loctite #609
A
1
A = Loctite #271
2
A = Loctite #380
6
A = Loctite #567
8
A = Loctite #587
9
T Torque: N•m x 8.85 = In. - lbs.
3
8
9
O
52
1
A
8
51
41
KEY
