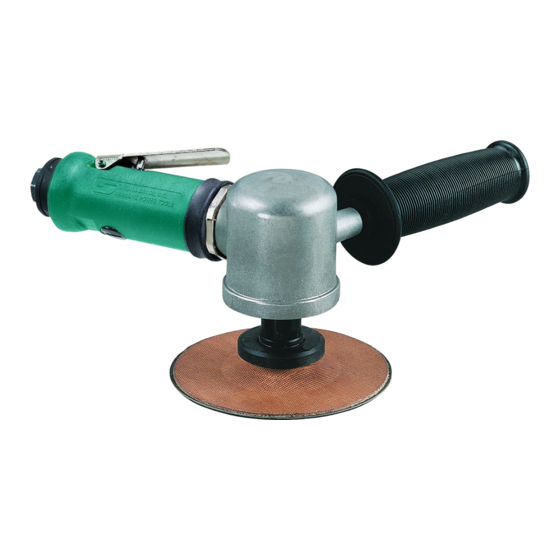

Dynabrade 51735 Manual

For Serial No. 0H1000 and Higher
Models:
51735 - Versatility Kit
52515 - 4-1/2" Fibre Disc Sander
52557 - 3" Disc Sander w/94519 Muffler Assy.
52558 - 3" Disc Sander w/94535 Muffler Assy.
57127 - Depressed Center Wheel Grinder
! WARNING
Key
O Oil: O = Air Lube
1
A Adhesive: A = Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
Index Key
No. Part # Description
1 56046 Lock Ring
2 02092 Shield
3 02695 Bearing
4 54680 Front Bearing Plate
5 02091 Rotor Shaft 3/8"-24
02094 Rotor Shaft 5/8"-11
6 54673 Shaft Key
7 54705 Rotor/Blade Set
8 54670 Cylinder Assembly
(Incl. 95865 Pin)
9 54679 Rear Bearing Plate
10 01206 Bearing
11 53163 Side Handle (Optional)
12 02097 Housing
13 01548 Gasket
14 01461 Lock Nut
15 01547 Collar
16 95523 O-Ring
17 01470 Insert Assembly
18 01448 Throttle Lever
01462 Safety Lock Lever
19 12132 Spring Pin
20 01449 Valve Stem
21 95558 Retaining Ring
22 52586 Housing – 52515
52587 Housing – 52557
52589 Housing – 52558
52588 Housing – 57127
23 95730 O-Ring
24 01024 O-Ring
25 01469 Speed Reg. Assembly
26 01464 Seal
27 01472 Tip Valve
28 01468 Conical Spring
29 01564 Air Control Ring
30 95711 Retaining Ring
31 95438 O-Ring
32 94521 Muffler Base
33 94528 Felt Muffler
34 94522 Muffler Cap
35 95375 O-Ring
36 94526 Spacer
37 94523 Inlet Adapter
38 94519 Muffler Assembly
39 01578 Inlet Adapter
40 01486 Felt Silencer (4)
41 01379 Bronze Muffler
42 96065 O-Ring
43 01446 Air Deflector
44 95620 Retaining Ring
45 94535 Muffler Assembly
46 50113 3" Roloc ® Pad
47 50264 Disc Mount
48 50267 Fiber Plate
49 50268 Flange
50 02055 Guard Assembly
51 50093 Backing Flange
52 50081 Flange
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
T
12 13
10
9
8
7
O
1
5
6
4
3
2
1
A
8
T
23 N•m
.55 Horsepower Tools
34 N•m
14 15 16 17
A
8
A
8
32
31
30
A
T
23 N•m
8
O
39
30 1

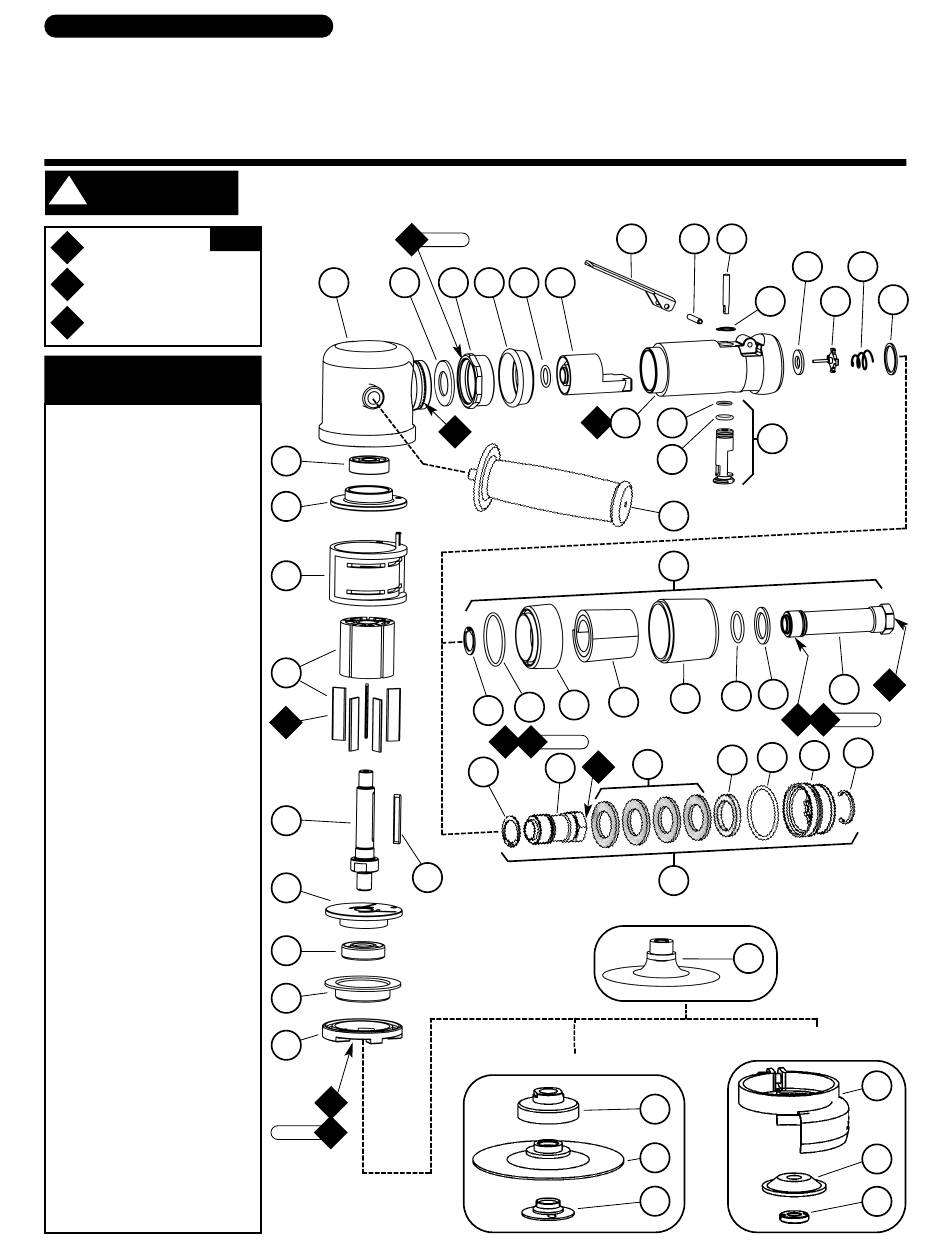

4-1/2" Fibre Disc Sander
Parts Page Reorder No. PD00•75
