For Serial No. 9J1264 and Higher
Model:
13300 – 3,200 RPM
13310 – Versatility Kit
WARNING
!
1
14
11
12
13
10
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and
any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for
more complete safety information. See inside for Important Operating, Maintenance and Safety Instructions.
9

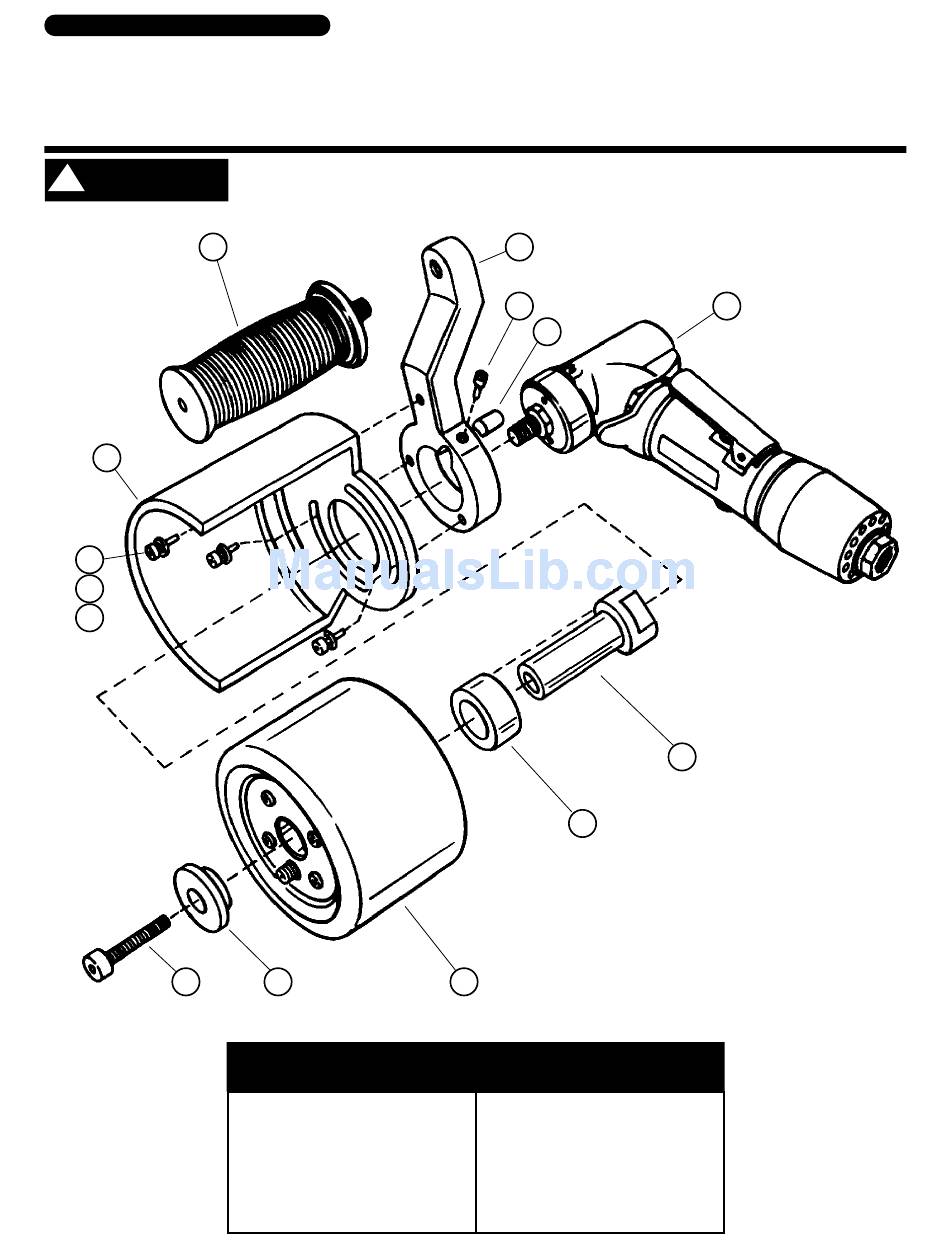

Index Key
No. Part# Description
1 53163 Handle Assembly
2 53156 Handle Support
3 01678 Lock Screw
4 40029 Cam Lock
6 53154 Spindle
7 13063 Spacer

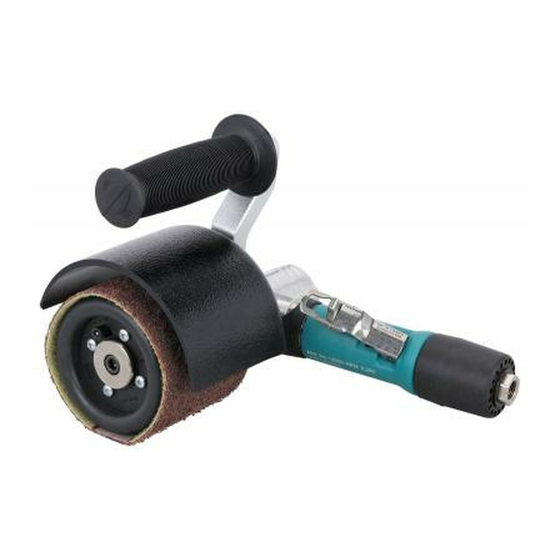

Mini-Dynisher
Air Motor and Machine Parts, 3200 RPM
2
3
4
7
8
8 94507 Pneumatic Wheel (not included)
9 13066 Flange
10 96133 Screw
11 95146 Flat Washer (3)
12 01211 Lock Washer (3)
13 97010 Screw (3)
14 53157 Shroud
Parts Page Reorder No. PD01•89
Effective October, 2001
Supersedes PD97•62
5
6
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade Mini-Dynisher 13300
Summary of Contents for Dynabrade Mini-Dynisher 13300
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and WARNING any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information. See inside for Important Operating, Maintenance and Safety Instructions.
-
Page 2: Motor Assembly
Important: Manufacturer’s warranty is void if tool is disassembled before warranty expires. Notice: Dynabrade strongly recommends the use of their 52296 Repair Collar (sold separately) during assembly/disassembly activities. Failure to use this collar will highly increase the risk of damage to the valve body of this tool. Please refer to parts breakdown for part identification. - Page 3 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool...
-
Page 4: Operating Instructions
2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
