Dynabrade 52196 Important Operating Instructions

For Serial No. 08A1000 and Higher

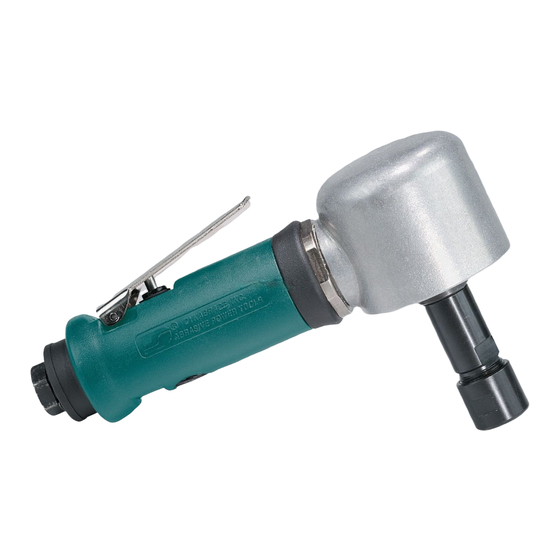

Models:
52196 - 1/4" Die Grinder
52590 - 2"-3" Disc Sander
(3/8"-24 Thread)

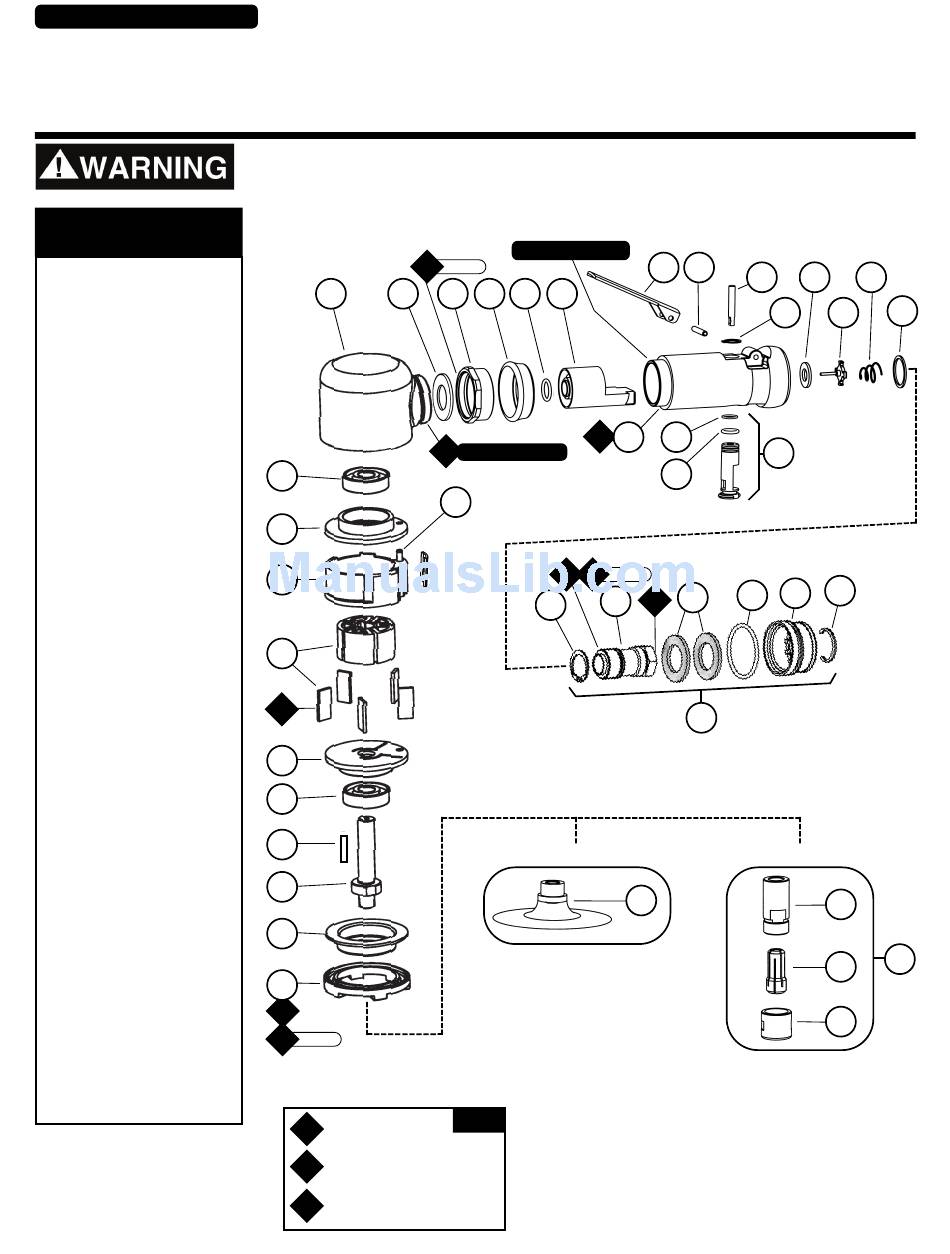

Index Key
No. Part # Description
1 56046 Lock Ring
2 02092 Shield
3 Rotor Shaft
54808 Models: 52196, 52590
52594 Model 52595
4 56047 Shaft Key
5 58368 Bearing (2)
6 54809 Front Bearing Plate
7 57113 Rotor/Blade Set (5)
8 58358 Cylinder Assembly
(Incl. 58367 Seal)
9 98462 Pin
10 58359 Rear Bearing Plate
11 02098 Housing
12 01548 Gasket
13 01461 Lock Nut
14 01547 Collar
15 95523 O-Ring
16 01470 Insert Assembly
17 01448 Throttle Lever
01462 Safety Lock Lever
18 12132 Spring Pin
19 01449 Valve Stem
20 95558 Retaining Ring
21 52606 Housing – 52196
52607 Housing – 52590
22 95730 O-Ring
23 01024 O-Ring
24 01469 Speed Reg. Assembly
25 01464 Seal
26 01472 Tip Valve
27 01468 Conical Spring
28 01564 Air Control Ring
29 95711 Retaining Ring
30 01578 Inlet Adapter
31 01486 Felt Silencer (2)
32 96065 O-Ring
33 01446 Air Deflector
34 95620 Retaining Ring
35 94537 Muffler Assembly
36 Back–Up Pad
51345 Model 52590
51344 Model 52595
37 50011 Collet Body
38 50013 1/4" Insert
39 50012 Collet Cap
40 50010 Collet Assembly
.33 hp, 15,000 RPM Tools
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
