42630 – Standard Machine
42631 – Versatility Kit
40365 Belt Guard
(Incl. 40371 Gasket)
40371 Gasket
40314
95425 Screw
Button Latch
40025 Button
Assembly
42638 Housing
95929 Fitting
95931 Valve
95943 Coupling
95928 Fitting
04037 Air Motor
42655 Shrink Tubing
54529 Shim Packet (as req.)
54515 Spacer
01009 Pin
02649 Bearing
01042 Pin
54516 Front Bearing Plate
(with 01009 Pin and 01042 Pin)
42637 Lock Ring
42639 Seal
02654 Drive Wheel
42636 Spindle
Oil
O
L
Loctite/Hernon: L
Torque: N•m x 8.85 = In. - lbs.
T
T
= 22.5 N•m, T
2
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
95217 Screw
L
2
95311 Screw
40029 Motor Lock
40366 Guide
95816 Air Line
04037 Air Motor
54514 Blade (4) (4/pkg.)
06212 Rotor
01009 Pin
54511 Bearing Plate
54512 Cylinder
54520 Bearing
06213 Gear
06214 Carrier
54522 Ring Gear
See inside for Important Operating, Maintenance and Safety Instructions.
KEY
Grease
G
Wet Dynafile
= Loctite #271
2
= 28 N•m
3
40362 Support Rod
40367 Dust Cover
L
2
11040 Spring
40361 Tension Arm
95218 Knob
L
95427 Screw
2
95717 Hose Clamp
95956 Cuff
95962 Male Disconnect
04014 Lock Screw
O
11016 Bearing
*01016 Lever
01017 Pin
42648 Housing
01041 Grease Fitting
01033 Bearing (2)
54518 Shaft
54520 Bearing
54517 Spacer
Parts Page Reorder No. PD97•99
Effective March, 1996

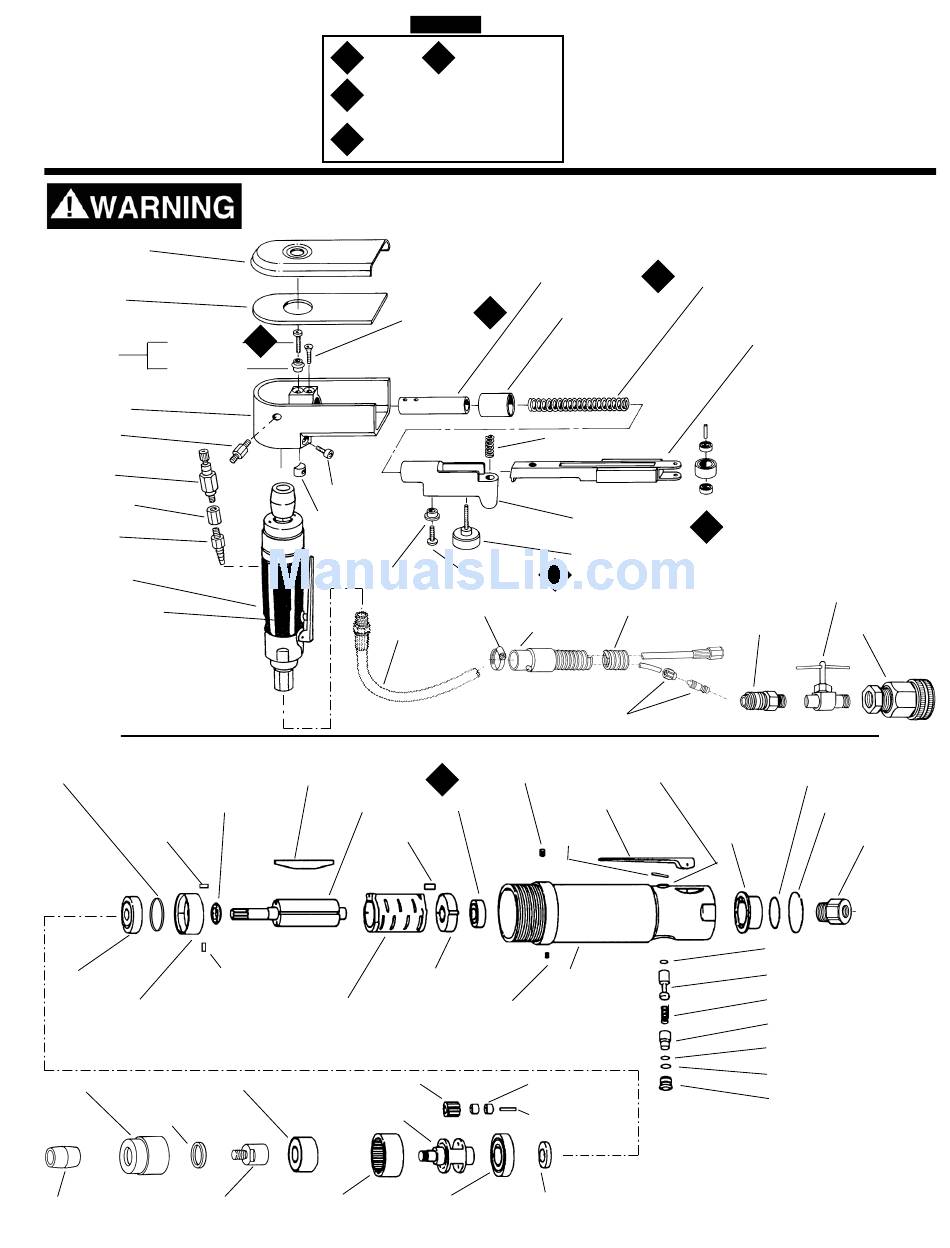

Motor and Machine Parts
95426 Spring
G
Contact Arm Assembly
see page 4.
G
95958 Hose
95963 Female
Disconnect
01004 Valve Bushing
95584 O- Ring
04020 Muffler
54508 O-Ring
54507 Valve Stem
01022 Valve Spring
54506 Speed Regulator
01024 "O" Ring
01025 "O" Ring
54505 Regulator Plug
II
®
95965
Needle
Valve
95964 Hose Bib
04027 Retaining Ring
95713 Adapter
