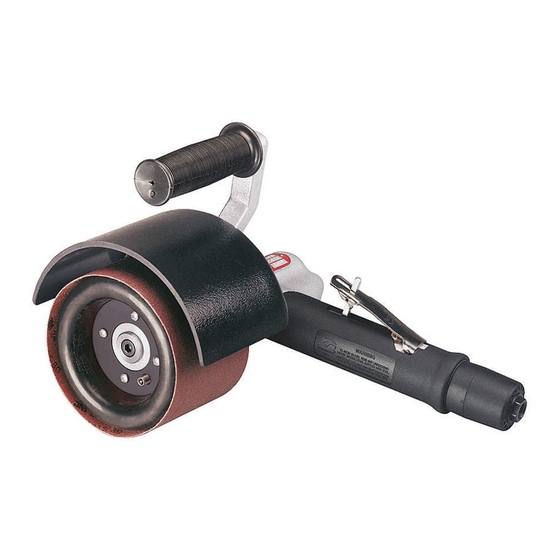

13400 – 3,400 RPM
13410 – 3,400 Versatility Kit
13411 – 3,400 Versatility Kit
WARNING
!

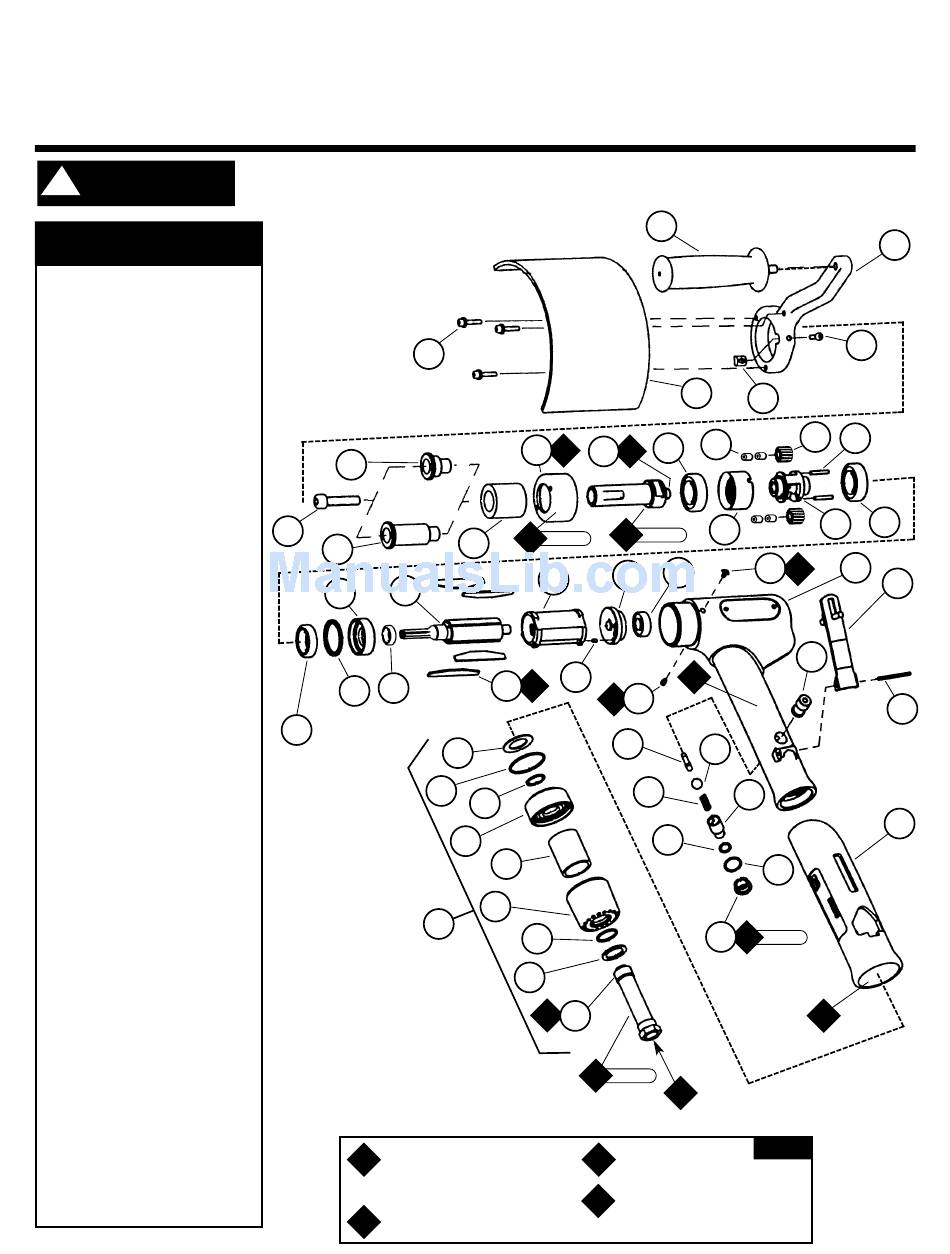

Index Key
No. Part #
Description
1 53163 Handle Assembly
2 96278 Screw Assembly (3)
3 13442 Shroud
4 40029 Cam Lock
5 01678 Screw
6 53167 Handle Support
7 02552 Bearing (2)
8 53182 Gear Shaft (2)
9 53180 Planetary Carrier
10 53193 Gear (2)
11 04026 Bearing (4)
12 53191 Ring Gear
13 13433 Arbor Adapter
14 13432 Spindle Cover
15 50750 Spacer
16 13434 Flange
17 13441 Flange
18 96264 Screw
19 01007 Bearing
20 01121 Shim Pack
21 53183 Front End Plate
22 01010 Spacer
23 04017 Rotor
24 01185 Blades (4/pkg.)
25 01028 Cylinder
26 50767 Pin
27 13440 Rear End Plate
28 02649 Bearing
29 04014 Screw
30 01041 Grease Fitting
31 13430 Housing Assy.
(includes 13436 Bushing
& 01041 Grease Fitting)
32 01089 Safety Throttle Lever
33 13436 Bushing
34 01017 Pin
35 13438 Handle Grip
36 13435 Valve Stem
37 13439 Ball
38 07145 Spring
39 13437 Speed Regulator
40 01024 O-Ring
41 13428 Packing
42 13427 Regulator Plug
43 01565 Air Control Ring
44 95438 O-Ring
45 95711 Retaining Ring
46 94521 Muffler Base
47 94528 Muffler
48 94522 Muffler Cap
49 95375 O-Ring
50 94526 Spacer
51 94523 Inlet Adapter
52 94519 Muffler Assembly
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
2
16
18
17
23
21
22
20
19
A
Adhesive: A
Torque: N•m x 8.85 = In. - lbs.
T
.7 Hp Dynisher
A
14
13
8
28 N•m
T
15
25
26
O
24
1
G
43
44
45
46
47
48
52
49
50
A
51
8
T
= Loctite #271
O
2
A
= Loctite #380
6
A
= Loctite #567
G
8
Parts Page Reorder No. PD01•40
Effective April, 2001
Supersedes PD98•17
Air Motor and Machine Parts
1
3
4
11
7
A
2
12
T
17 N•m
29
A
28
27
A
6
30
1
36
37
38
39
40
41
42
8.5 N•m
T
23 N•m
O
1
KEY
Oil: O
= Air Lube
1
Grease: G
= Lubriplate 630AA
1
6
5
10
8
7
9
31
8
32
33
34
35
A
6
Advertisement
Table of Contents
Related Manuals for Dynabrade 13400 3
Summary of Contents for Dynabrade 13400 3
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air WARNING tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade’s Warning/Safety Operating Instructions for more complete safety information. Index Key No. Part #...
-
Page 2: Operating Instructions
2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade rotary vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute). - Page 3 5. Check clearance between rotor and bearing plate by using a .001" feeler gauge. Clearance should be at .001" to .0015". Adjust clearance by repeating steps 2-4 with different shim if necessary. 6. Once proper rotor gap clearance is achieved, install well lubricated 01185 Blades (4) into rotor slots. Dynabrade recommends using their 95842 Air Lube.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
