Dynabrade 52576 User Manual

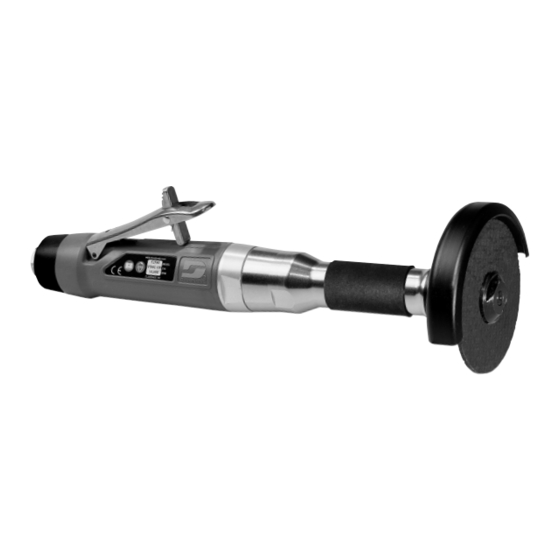

1 hp Cut-Off Tools
6" Extension, Governor Controlled
Models:
52576 – 15,000 RPM, 3" Cut-Off
52577 – 18,000 RPM, 3" Cut-Off
52578 – 20,000 RPM, 3" Cut-Off
52579 – 15,000 RPM, 4" Cut-Off
52580 – 18,000 RPM, 4" Cut-Off
52581 – 20,000 RPM, 4" Cut-Off
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety Institute
(ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the Use, Care
and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards
(EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed written consent from Dynabrade, Inc.
Tool Intent: Abrasive Cut-Off Tools are ideal for cutting off all types of materials, metals and steel, including stainless and steel alloys.
This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide cut-off tool operators with safety instructions and training for safe use of tools and accessories.
Accessory Selection:
• DO NOT use – non-reinforced cut-off wheels.
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Mount only recommended accessories. See back page of manual and Dynabrade catalog.
• Follow tool specifications before choosing size and type of accessory
• Only use recommended fittings and air line sizes. Air supply hoes and air hose assemblies must have a minimum working pressure rating of 150 PSIG (10 bars, g) or 150
percent of the maximum pressure in the system, whichever is higher. (See tool Machine Specifications table.)
Warning: Always wear eye protection. Operator of tool is responsible for following: accepted eye, face, respiratory, hearing and body protection. Always use wheel guard.
Make sure it is positioned to best protect the operator and make sure it is fastened. Wheel guards that have been subject to a wheel breaking must be replaced.
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
WARNING

SAFETY LEGEND

WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

®
Do Not Use Tool For Anything Other Than Its Intended Applications.

OPERATING INSTRUCTIONS

Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexi-
ble hoses can cause serious injury. Do not use dam-
aged, frayed or deteriorated air hoses and fittings.
Abrasive Power Tool.
Parts Page Reorder No. PD04•33R
Effective June, 2004
Supersedes PD04•33
WARNING
WARNING
WARNING
