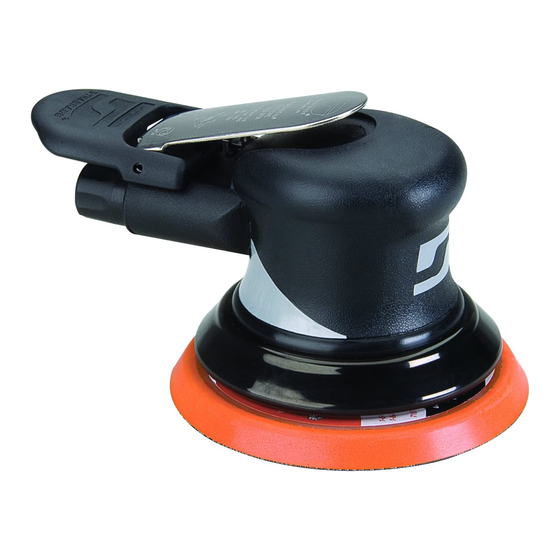

Models:
57500 – 5,000 RPM
57501 – Versatility Kit
57502 – 7,500 RPM
57503 – 5,000 RPM
57504 – 7,500 RPM
KEY
Adhesive:
A
A
= Loctite #271
2
A
= Loctite #567
8
Oil: O
= Air Lube
1
O
Torque: N•m x 8.85 = In. - lbs.
T
Index Key
No. Part #
Description
1 54033 Pad (For 54035 Assy.)
54018 Pad (For 54034 Assy.)

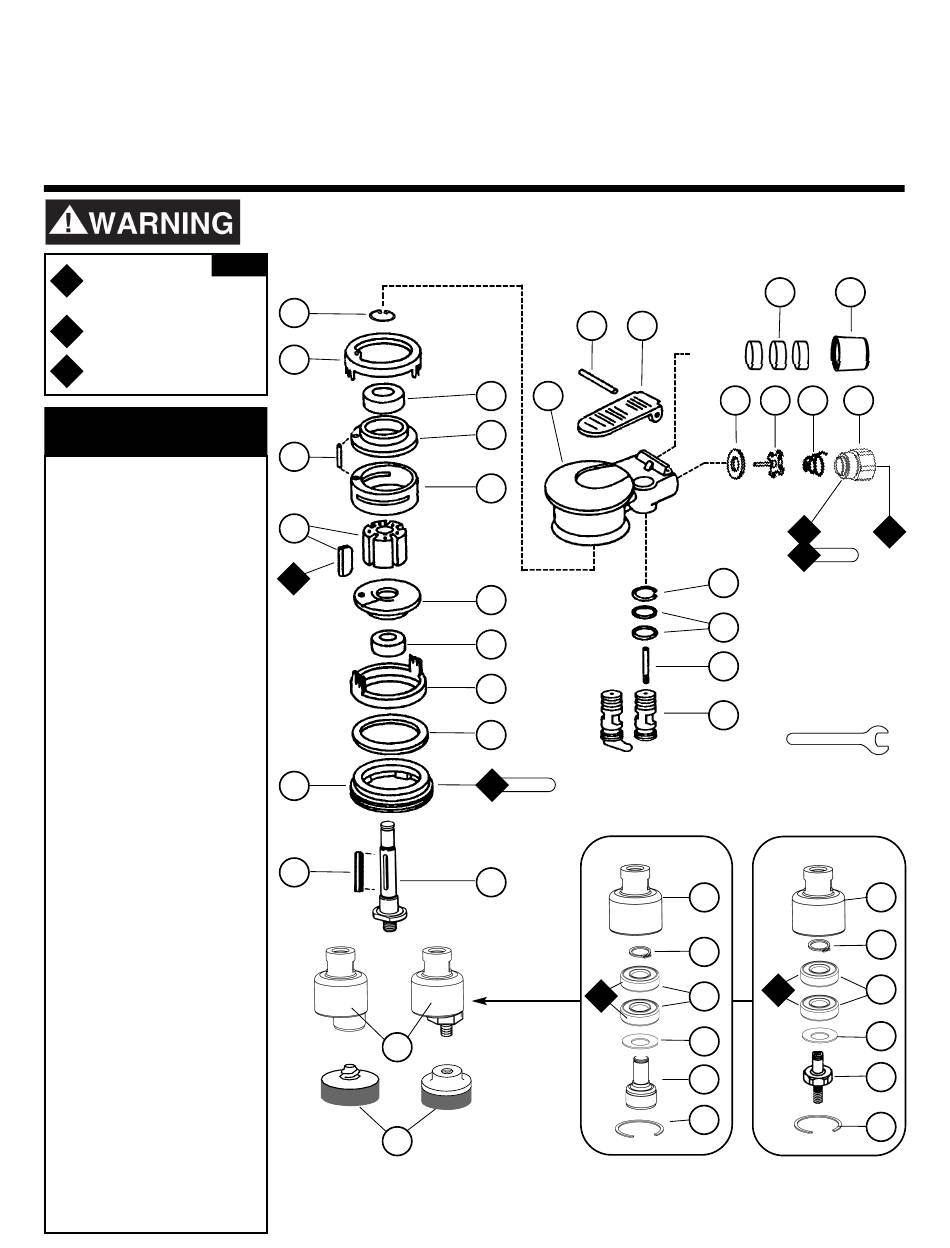

2 Mini-Orbital Head Assemblies
54034 1/4"-20 Tread-Type
54035 Locking-Type
3 95613 Retaining Ring
4 54145 Roloc Sub Assembly
5 95612 Bearing Shield
6 50722 Balancer Bearing (2)
7 95558 Retaining Ring
8 54036 Counterweight
9 54124 Balancer Shaft
10 57528 Motor Shaft
11 56047 Key
12 57059 Lock Ring
13 95973 Washer
14 57055 Front Ring
15 57088 Bearing
16 57057 Front Bearing Plate
17 57113
Rotor/Blade Set
18 57058 Cylinder (Incl. 95971 Pin)
19 95971 Pin
20 57056 Rear Bearing Plate
21 01206 Bearing
22 57054 Rear Ring
23 95626 Retaining Ring
24 95979 Pin
25 56846 Lever
26 57529 Housing - Model 57500
57523 Housing - Model 57502
57533 Housing - Model 57503
57520 Housing - Model 57504
27 95697 Retaining Ring
28 01025 O-Ring (2)
29 01477 Valve Stem
30 Speed Regulators Plugs
57531 Non Reg. Plug
57064 Regulator Plug (Optional)
57053 Recessed Plug (Optional)
31 56027 Muffler Insert (3)
32 69359 Muffler Body
33 01464 Seal
34 01472 Tip Valve
35 01468 Conical Spring
36 01494 Inlet Bushing
Mini-Dynorbital
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
23
22
19
17
O
1
12
11
2
1
Note: To order replacement parts specify the model and serial number of your machine.
Air Motor and Machine Parts
24
25
21
26
20
18
16
15
14
13
T
28 N•m
54035 Head Assembly
10
A
2
PD07•03R
May, 2017
Supersedes PD04•15, PD01•02
Supreme
®
31
32
33
34
35
A
8
T
23 N•m
27
28
29
30
95262 14mm Wrench
95263 17mm Wrench
95281 19mm Wrench
54034 Head Assembly
8
7
A
2
6
5
4
3
36
O
1
8
7
6
5
9
3
