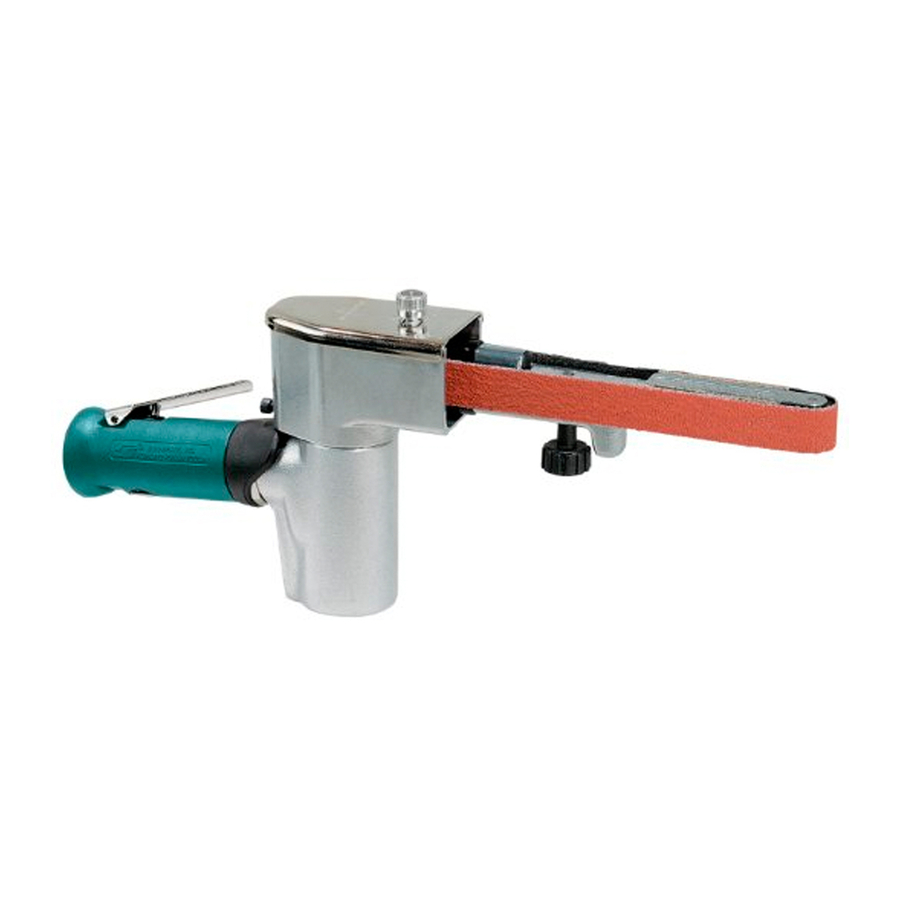

Disassembly Instructions - 0.5 hp. Dynafile II
Models: 40320, 40321, 40324, 40326, 40330, 40335
Important: Use these instructions along with the tool parts page or manual.
Notice: Shut off the air supply and depress throttle lever to deplete remaining air.
• Carefully disconnect the tool from the air supply hose. • Remove the abrasive belt and contact
arm assembly. • Use the Special Repair Tools designed for the disassembly and assembly of
this motor.
Motor Disassembly:

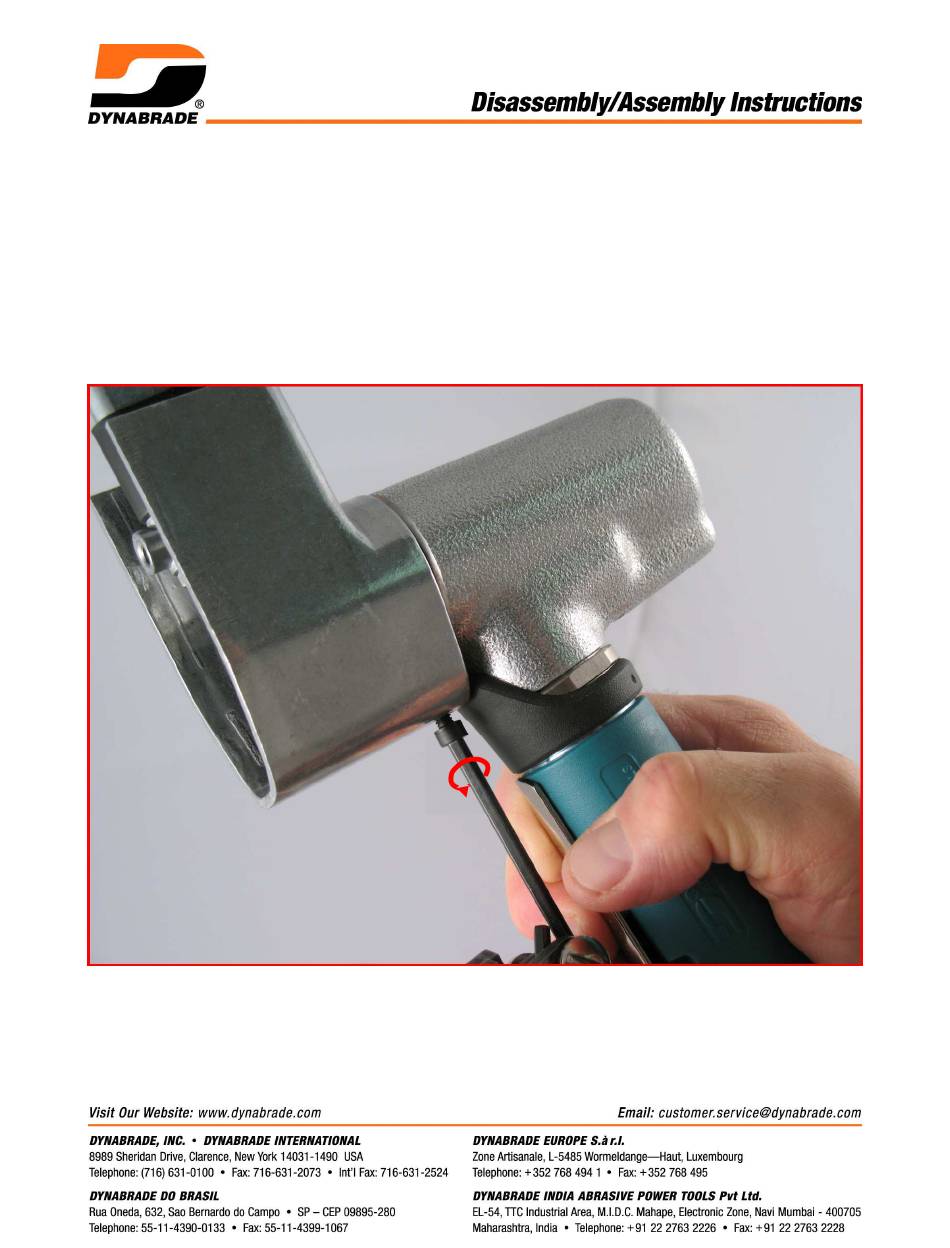

1. Use a 9/64" hex key to loosen the 95311 Screw. Remove the motor from the belt housing.
Use a 9/64" hex key to
loosen the 95311 Screw.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade 40324
Summary of Contents for Dynabrade 40324
- Page 1 Disassembly Instructions - 0.5 hp. Dynafile II Models: 40320, 40321, 40324, 40326, 40330, 40335 Important: Use these instructions along with the tool parts page or manual. Notice: Shut off the air supply and depress throttle lever to deplete remaining air.
- Page 2 2. Carefully hold the 01447 Housing in a vise with aluminum or bronze jaws so that the drive wheel is pointing up. Notice: Over tightening vise will damage housing. Insert a 3/16" hex key through drive wheel and into the end of the 01120 Rotor. Use groove pliers to grasp the drive wheel and remove.
- Page 3 3. Use the 50971 Lock Ring Wrench to remove the motor lock ring. Turn counterclockwise. Remove the exhaust control spacer.
- Page 4 Pull the motor out of the housing.
- Page 5 96346 Bearing Separator 4. Fasten the 96346 Bearing Separator (2") around the 01013 Cylinder. Place the separator and the motor in the 96232 Arbor Press (#2) so that the rotor spindle is pointing down. Use a 3/16" or 5 mm diameter flat end drive punch to push the rotor out of the 01015 Bearing.
- Page 6 96211 Bearing Removal Tool 96346 Bearing Separator 5. Use the 96211 Bearing Removal Tool and the arbor press to remove the 01015 Bearing from the rear bearing plate.
- Page 7 6. Fasten the 01120 Rotor in the vise with aluminum or bronze jaws and use an adjustable wrench to remove the 04081 Rotor Nut. Turn counterclockwise. Remove the 01007 Bearing, 01008 Bearing Plate, shims, and 01010 Spacer. Motor Disassembly Completed. Clean and inspect parts before assembling.
- Page 8 Assembly Instructions - 0.5 hp. Dynafile II .003" (~0.80 mm) shim thickness 01010 Spacer Motor Assembly: Install the 01010 Spacer onto the rotor. Install .003" (~0.80 mm) shim thickness into the 01008 Front Bearing Plate. Install the 01007 Bearing into the front bearing plate. Install the bearing and plate onto the rotor.
- Page 9 .001"-.0015" (~0.03-0.04 mm) 2. By hand, install the 04081 Rotor Nut. Pull the front bearing plate forward to take movement out of the bearing. Check the clearance between the rotor and plate. Use a .001" (~0.03 mm) thick feeler gauge. Notice: The clearance should be .001"-.0015"...
- Page 10 T to 17 N•m/~150 in. lbs. 3. Use a 17 mm socket or crowfoot, and a torque wrench to tighten the 04081 Rotor Nut. (T to 17 N•m/~150 in. lbs.)
- Page 11 4. Apply the 95842 Dynabrade Air Lube, 10W/NR or equivalent to the 01011 Vanes and install them into the rotor.
- Page 12 96241 Bearing Press Tool 5. Use the RAISED OUTSIDE DIAMETER of the 96241 Bearing Press Tool and the arbor press to install the 01015 Bearing. Notice: Press the bearing all the way into the plate.
- Page 13 6. Install the cylinder and rear bearing plate so that the air inlet openings line-up with each other.
- Page 14 96241 Bearing Press Tool Just Touch 7. Use the RAISED INSIDE DIAMETER of the 96241 Bearing Press Tool and the arbor press to install the bearing and plate. Important: Press the bearing and plate down until the rear bearing plate just touches the 01013 Cylinder.
- Page 15 8. Install the motor assembly.
- Page 16 T to 34 N·m/~300 in. lbs. Loctite #567 9. Carefully fasten the 01447 Housing in a vise with aluminum or bronze jaws so that the rotor spindle is pointing up. Notice: Over tightening vise will damage housing. As needed, install fabric silencer around the exhaust control spacer and o-rings around the lock ring.
- Page 17 Use a 3/16" hex key, and pliers to tighten drive wheel. 10. Insert a 3/16" hex key through the drive wheel and into the end of the 01120 Rotor to hold it stationary. Use groove pliers to tighten the drive wheel. IMPORTANT: Use a tachometer to check motor speed and to verify proper operation.
- Page 18 Use a 9/64" hex key. 11. Install the air motor into the housing. Use a 9/64" hex key to fasten the motor with the 95311 Screw and 40029 Cam Lock. Motor Assembly Completed. Notice: For belt housing, contact arm and valve assemblies, refer to the exploded view and the additional instructions contained in the tool parts page or manual.
