INSTALLING THE HOUSING ASSEMBLY

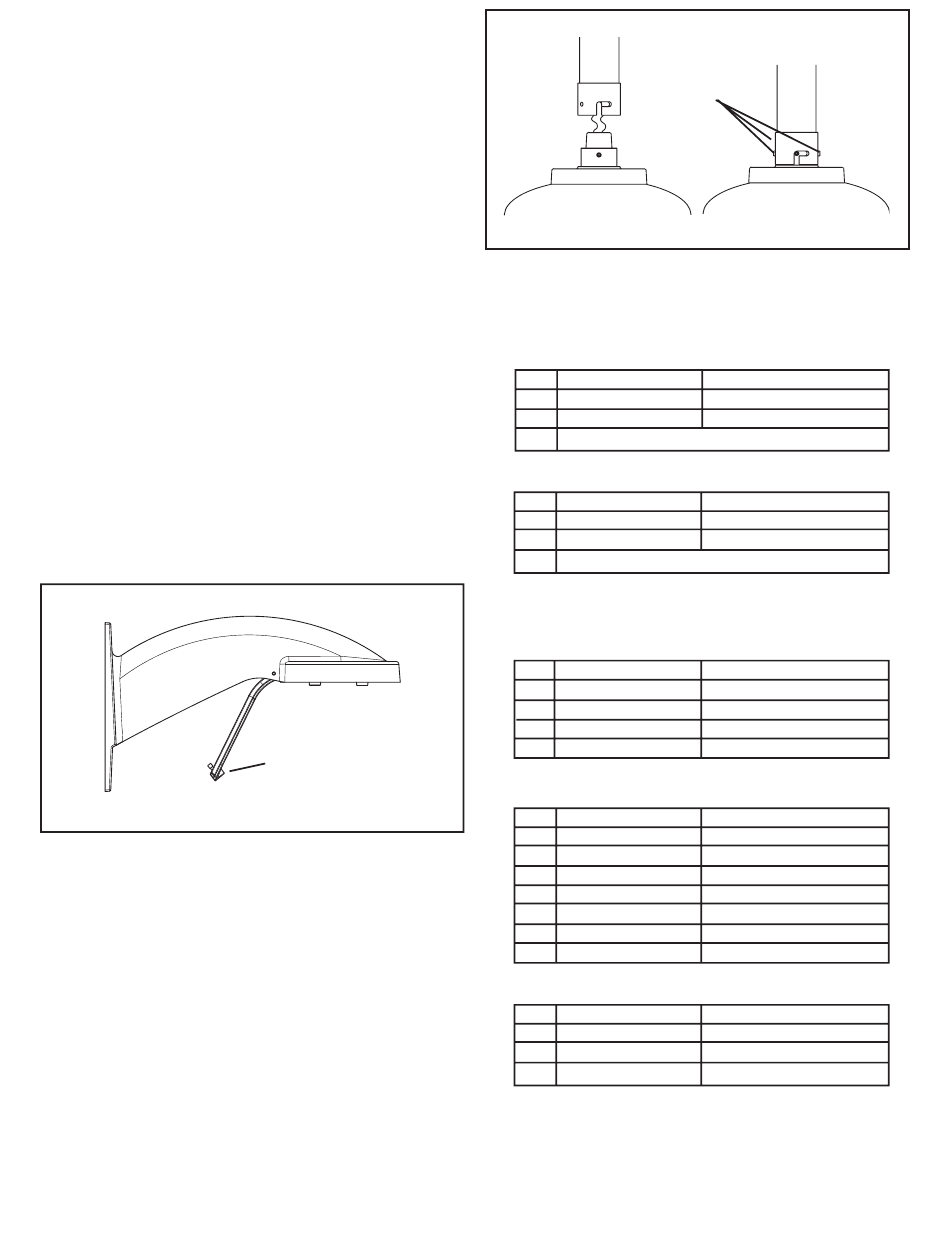

FOR WALL MOUNT POD8CW (Figure 11)
1. A wall mount bracket comes standard with this unit, and a
template is included to use as a guide for mounting the bracket
to a wall. Choose the desired location for installation and mark
the drill holes using the template. Screw (2) bolts (not
provided) about 3/4 of the way into the (2) top holes. Run
approximately 8" of wiring out of the wall.
2. Open the access door on the bottom of the wall mount by
loosening the screw nearest the mounting plate.
3. Slip the housing onto the top (2) bolts and pull the wires from the
wall through the rectangular hole in the wall mount bracket.
Screw bolts and washers through the bottom (2) holes and
secure. Remove the top (2) bolts, add washers, and reattach,
tightening completely.
4. Attach the wires from the wall to the connector provided, using the
wiring color code chart as a guide.
5. Once all wiring connections are made, place the wires inside the
wall mount bracket and close the access door. Secure with the
screw removed earlier.
6. Clean the outside of the dome.
Figure 11
FOR PENDANT MOUNT, POD8C (Figure 12)
1. Mount the housing assembly to the mounting bracket and
housing coupling. A safety cable is included with the housing to
temporarily hold it while making wiring connections. Loop the
safety cable over one of the set screws on the housing coupling
and make the appropriate connections using the (2) screw-down
connectors supplied.
2. Undo the safety cable and twist the housing onto the housing
coupling. Secure all (3) setscrews provided on the housing
coupling (Figure 4).
3. Clean the outside of the dome.
Loosen screw to open
access door
Figure 12
Wiring Color Code
Power and Control Inputs
POD8C

CAMERA POWER

1 24 VAC Live
2 24 VAC Live
3 Green
4 Not Used

ACCESSORY POWER

1 24 VAC Live
2 24 VAC Live
3 Green
4 Not Used
Pan/Tilt Unit Only
CONTROL
1 Ground
2 TXB (RS485)
3 TXA (RS485)
4 RXB (RS485)
5 RXB (RS485)
ALARM IN (8-pin)
1 Alarm In 1
2 Ground
3 Alarm In 2
4 Ground
5 Alarm In 3
6 Ground
7 Alarm In 4
8 Ground
ALARM OUT (4-pin)
1 Alarm Out 1
2 Ground
3 Alarm Out 2
4 Ground
- 3 -
Twist and
Secure
Black
White
Green
Red
White
Green
Brown
Red
Orange
Yellow
Green
Black
Brown
Red
Orange
Yellow
Light blue or green
Blue
Purple
Gray
White
Pink
Yellow, Green, or Light blue
