Moog Videolarm POD8C Product Instructions page 2

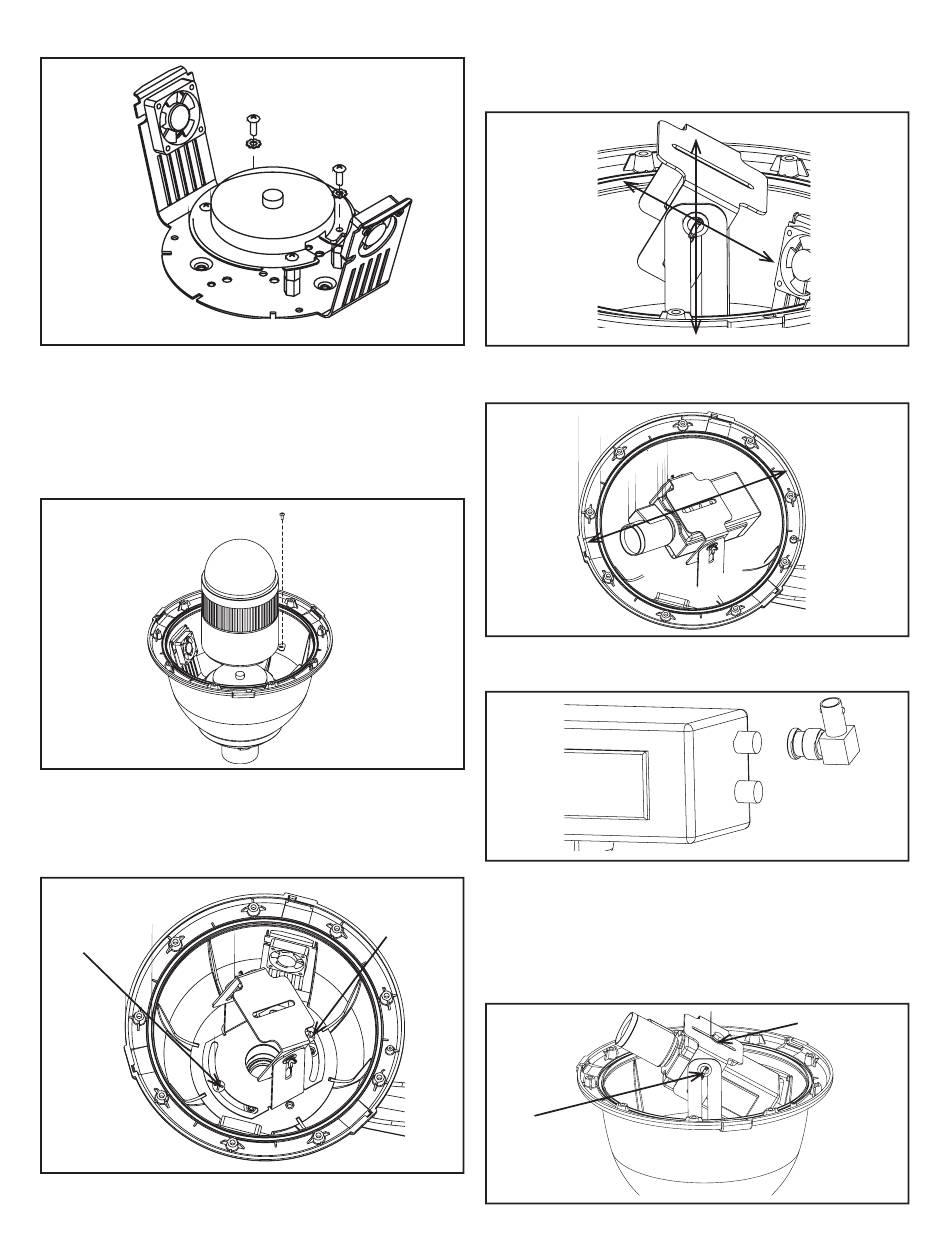

4. Connect the quick-release bracket to the spacers using the (4) 8 x
32 x 1/2" bolts and #8 star washers (Figure 4).
Figure 4
5. Attach the unitized camera to the quick-release bracket. Secure
the safety screw (Figure 5). Connect the BNC, power, control,
and alarm cables. Make sure all wiring is clear of the blowers and
heater on the housing bracket. Use the cable tie provided to
secure the wires and connectors.
NOTE: Remove the plastic dome from the WV-CS854 unitized
camera to ensure the best optical picture.
Figure 5
INSTALLING FIXED CAMERA BRACKET (ALL MODELS)
1. Loosen the two pan adjustment screws and rotate the bracket to
the desired viewing location.
Pan
adjustment
screw
Figure 6
Safety Screw
Pan
adjustment
screw
- 2 -
2. Tilt and height adjustments can be made using the two screws
located on the upper portion of the fi xed camera bracket. Loosen-
ing the screws allows the bracket itself to slide up and down the
bracket arms (height adjustment) and back and forth on the cam-
era bracket (tilt). Adjust to the desired location (Figure 7).
Figure 7
3. The camera can also be adjusted back and forth via the slot
located on the bottom of the bracket (Figure 8).
Figure 8
NOTE: A 90˚ BNC connector is included in the packet to assist in
fi tting the camera (Figure 9).
Figure 9
4. Attach the camera to the bracket using the 1/4-20 hex bolt
provided. Make fi nal adjustments and lock down the pan, tilt, and
height adjustment screws (Figure 10).
IMPORTANT NOTE: Put the dome in place to assure the camera
does not touch it. To reattach the dome you must twist it, if the
dome comes in contact with the camera its position could change.
Tilt
adjustment
screw
Figure 10
1/4-20 hex bolt
