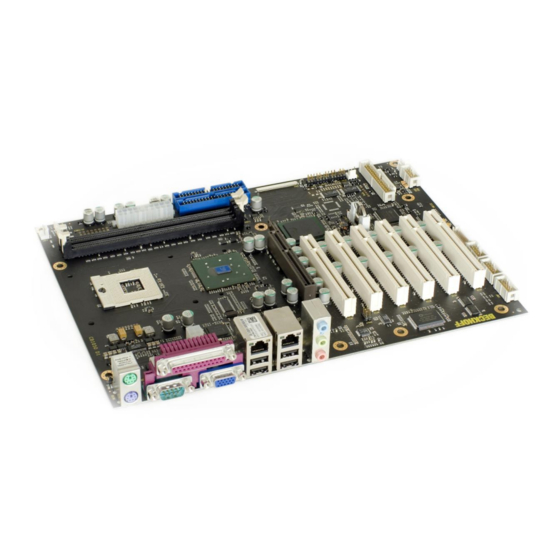

- Page 1 CB1050 Manual rev. 1.2 ATX power supply Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de...
-
Page 3: Table Of Contents
3.4.8 SMB/I2C ..........................44 3.4.9 Fan Connectors ........................45 Jumper Settings .......................... 46 3.5.1 Clear CMOS ........................46 3.5.2 BIOS Select ........................47 3.5.3 Jumper: Keyboard Power (KBPWR)................... 48 BIOS Settings ............................. 49 Beckhoff New Automation Technology CB1050 page 3... - Page 4 Technical Data ........................... 74 Electrical Data ..........................74 Environmental Conditions ......................74 Thermal Specifications ....................... 75 Support and Service .......................... 76 Beckhoff's Branch Offices and Representatives ................ 76 Beckhoff Headquarters ....................... 76 8.2.1 Beckhoff Support ........................ 76 8.2.2 Beckhoff Service ......................... 76 Annex: Post-Codes ..........................
- Page 5 Notes on the Documentation Chapter: Document History Beckhoff New Automation Technology CB1050 page 5...
-
Page 6: Document History
LAN pinout in chapter 3.2.3 All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 Beckhoff New Automation Technology CB1050... -
Page 7: Introduction
1.1.2 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Beckhoff New Automation Technology CB1050 page 7... -
Page 8: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. page 8... -
Page 9: Description Of Safety Symbols
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data. OTE OR POINTER This symbol indicates information that contributes to better understanding. Beckhoff New Automation Technology CB1050 page 9... -
Page 10: Essential Safety Measures
Read the operating instructions All users of the product must have read the operating instructions for the system they work with. System know-how All users must be familiar with all accessible functions of the product. page 10 Beckhoff New Automation Technology CB1050... -
Page 11: Functional Range
As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. -
Page 12: Overview
Pentium® M types. With its two DIMM184 sockets memory can be added up to 2 GByte (DDR-333 max.). Expansion cards can be added into six PCI slots and one AGP slot. The CB1050 also offers a wide range of internal and external connectors, such as four serial ports, two LAN connectors, six USB channels, two IDE connectors, digital and analogue audio, CRT/LCD connector etc. - Page 13 Features Chapter: Overview ATX power supply (including 2x2pin 12V connector) Six PCI slots One AGP slot (4x) ATX form factor (305mm x 220mm) Beckhoff New Automation Technology CB1050 page 13...
-
Page 14: Specifications And Documents
Celeron® M, Pentium® M www.intel.com Winbond® chip description W83627HF Datasheet www.winbond-usa.com oder www.winbond.com.tw Intel® chip description 82562EZ/GZ Datasheet www.intel.com Intel® chip description 82541ER Datasheet www.intel.com ICS® chip description ICS950813 Datasheet www.idt.com page 14 Beckhoff New Automation Technology CB1050... -
Page 15: Connectors
Specifications and Documents Chapter: Connectors 3 Connectors This section describes all the connectors found on the CB1050. AUTION For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. -
Page 16: Power Supply, System Connectors, Cpu
5 volt supply PWRBTN# powerbutton ground ground 5 volt supply ground ground ground power on PWR_ON volt supply -5V standby supply 5V SVCC 5 volt supply 12 volt supply 5 volt supply page 16 Beckhoff New Automation Technology CB1050... - Page 17 Power Supply, System Connectors, CPU Chapter: Connectors Pinout ATX power connector 2x2: Name Name Description Description ground COREIN 12 volt supply ground COREIN 12 volt supply Beckhoff New Automation Technology CB1050 page 17...
-
Page 18: System
3.3 volt supply harddisk LED HDLED# reserved 5 volt supply 5 volt supply reserved ground IrDA transmit IRTX reserved ground BEEP speaker IrDA receive IRRX reserved IrDA control CIRRX ground 5 volt supply RESET# reset page 18 Beckhoff New Automation Technology CB1050... -
Page 19: Cpu-Sockel
Chapter: Connectors 3.1.3 CPU-Sockel The CB1050 board has an mPGA479M CPU socket accomodating the following types of processors manufactured by Intel®: Celeron® M and Pentium® M. The mPGA479M is a ZIF (Zero Insertion Force) socket, which means that you can insert the processor without there being any resistance. There is only one orientation in which the processor will fit into the socket. -
Page 20: Cmos Battery
The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2). Name Description BATT battery 3.3 volt ground page 20 Beckhoff New Automation Technology CB1050... -
Page 21: Back Panel Connectors
(S)VCC 5 volt supply mouse clock MCLK reserved Pinout PS/2 keyboard: Name Name Description Description keyboard data KDAT MDAT mouse data ground (S)VCC 5 volt supply keyboard clock KCLK MCLK mouse clock Beckhoff New Automation Technology CB1050 page 21... -
Page 22: Parallel Port, Serial Ports, Vga
SLCT Pinout serial port (DSUB connector): Name Name Description Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground page 22 Beckhoff New Automation Technology CB1050... - Page 23 Chapter: Connectors Pinout VGA connector: Name Description GREEN green BLUE blue reserved ground ground ground ground 5 volt supply ground reserved DDDA DDC data HSYNC horizontal sync VSYNC vertical sync DDCK DDC clock Beckhoff New Automation Technology CB1050 page 23...
-
Page 24: Usb And Lan
5 volt for USBX USBX# minus channel USBX USBX plus channel USBX ground Pinout LAN 10/100: Name Description LAN1-0 LAN1 transmit plus LAN1-0# LAN1 transmit minus LAN1-1 LAN1 receive plus reserved reserved LAN1-1# LAN1 receive minus page 24 Beckhoff New Automation Technology CB1050... - Page 25 LAN2 channel 0 minus LAN2-1 LAN2 channel 1 plus LAN2-2 LAN2 channel 2 plus LAN2-2# LAN2 channel 2 minus LAN2-1# LAN2 channel 1 minus LAN2-3 LAN2 channel 3 plus LAN2-3# LAN2 channel 3 minus Beckhoff New Automation Technology CB1050 page 25...
-
Page 26: Audio Connectors
Chapter: Connectors Back Panel Connectors 3.2.4 Audio Connectors Line-in, line-out, and microphone signals are provided in the form of three 3,5mm-TRS-connectors. page 26 Beckhoff New Automation Technology CB1050... -
Page 27: Ide, Fdd, Memory
PDDACK# ground interrupt signal PDIRQ reserved address bit 1 PDA1 PDMA66EN enable UDMA66 address bit 0 PDA0 PDA2 address bit 2 chip select signal 0 PDSC0# PDCS1# chip select signal 1 PHDLED ground Beckhoff New Automation Technology CB1050 page 27... -
Page 28: Floppy Interface
MT0# motor enable 0 reserved DIR# direction reserved STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect ground RDATA# read data ground page 28 Beckhoff New Automation Technology CB1050... - Page 29 1 ground DIR# direction ground STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect reserved RDATA# read data ground HDSL# head select reserved disk change Beckhoff New Automation Technology CB1050 page 29...
-
Page 30: Memory
Chapter: Connectors IDE, FDD, Memory 3.3.3 Memory The CB1050 is equipped with two DIMM184 sockets for DDR-333-RAM. For technical and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules With currently available memory modules a memory extension up to 2 GByte is possible. - Page 31 46 2.5 volt supply 2.5V DQ47 data 47 reserved reserved data 48 DQ48 2.5V 2.5 volt supply data 49 DQ49 DQ52 data 52 ground DQ53 data 53 clock 2 - CK2# reserved Beckhoff New Automation Technology CB1050 page 31...
- Page 32 DQ58 DQ63 data 63 data 59 DQ59 2.5V 2.5 volt supply ground IIC slave address 0 reserved IIC slave address 1 SMBus data IIC slave address 2 SMBus clock 3.3V 3.3 volt supply page 32 Beckhoff New Automation Technology CB1050...
-
Page 33: Internal Connectors
Pinout 2x5 pin connector USB 5/6: Name Name Description Description 5 volt for USB5 5 volt for USB6 minus channel USB5 USB5# USB6# minus channel USB6 plus channel USB5 USB5 USB6 plus channel USB6 ground ground reserved reserved Beckhoff New Automation Technology CB1050 page 33... -
Page 34: Serial Ports Com2 To Com4
The port address and the interrupt are set via the BIOS setup. Pinout COM connector: Name Name Description Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground 5 volt supply page 34 Beckhoff New Automation Technology CB1050... -
Page 35: Lvds
LVDS odd clock - TXO1C LVDS odd clock + TXO13# LVDS odd data 3 - TXO13 LVDS odd data 3 + ground 3.3V 3.3 volt supply DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD Beckhoff New Automation Technology CB1050 page 35... - Page 36 Chapter: Connectors Internal Connectors Name Description FP_3.3V switched 3.3 volt for display FP_BL switched 5 volt for backlight 5 volt supply page 36 Beckhoff New Automation Technology CB1050...
-
Page 37: Aux-In & Cd-In
Internal Connectors Chapter: Connectors 3.4.4 Aux-In & CD-In In addition to the external TRS connectors mentioned above, the CB1050 offers two internal 4 pin connectors (Foxconn HF1104E-P1), providing customers with even more possibilities to connect audio devices (analogue signals). Pinout Aux-in connector:... -
Page 38: S/Pdif
For digital audio signals an SPDIF interface is available, which can be accessed using an internal 2x3 pin IDC socket connector with a spacing of 2,54mm. Pinout SPDIF connector: Name Name Description Description ground SPDIFO SPDIF out 3.3 volt supply 3,3V 5 volt supply ground SPDIFI SPDIF in page 38 Beckhoff New Automation Technology CB1050... -
Page 39: Pci Interfaces
Chapter: Connectors 3.4.6 PCI interfaces There are six standard PCI slots available on the CB1050. Please note that due to the nature of the PCI bus some signals in the following table are different from one PCI slot to the other. This applies to the test signals (A4, B4), the interrupt signals (A6, A7, B7, B8), the clock signal (B16), the grant signal (A17), the request signal (B18), and the ID-select signal (A26). - Page 40 5 ground address/data 3 address/data 2 ground address/data 0 address/data 1 5 volt supply 5 volt supply reserved 5 volt supply 5 volt supply 5 volt supply 5 volt supply 5 volt supply page 40 Beckhoff New Automation Technology CB1050...
-
Page 41: Agp Interface (4X)
Chapter: Connectors 3.4.7 AGP interface (4x) One slot for AGP cards (4x, 1.5V) makes the expansion options on the CB1050 complete. You can use this slot either für AGP graphic adapters or for ADD cards (DVO). DVO signals are treated below in a table of their own. - Page 42 ADDID0 ADDID3 SBA3 SBA2 ADDID2 ADDID5 SBA5 SBA4 ADDID4 ADDID7 SBA7 SBA6 ADDID6 DVOBCINT# AD30 AD31 DVOCFLDSTL DVOCD11 AD28 AD29 DVOCD10 DVOCD9 AD26 AD27 DVOCD8 DVOCD7 AD24 AD25 DVOCD6 DVOCCLK# ADSTB1# ADSTB1 DVOCCLK page 42 Beckhoff New Automation Technology CB1050...
- Page 43 MDDCCLK STOP# DVODETECT MDDCCDATA AD15 C/BE1# DVOBLANK# DVOBCCLKINT AD13 AD14 DVOBFLDSTL DVOBD11 AD11 AD12 DBOBD10 DVOBD9 AD10 DVOBD8 DVOBD7 C/BE0# DVOBD6 DVOBCLK# ADSTB0# ADSTB0 DVOBCLK DVOBD5 DVOBD4 DVOBD3 DVOBD2 DVOBD1 DVOBD0 DVOHSYNC DVOVSYNC Beckhoff New Automation Technology CB1050 page 43...
-
Page 44: Smb/I2C
Internal Connectors 3.4.8 SMB/I2C The CB1050 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the chipset, the I2C signals are processed by the SIO unit. -
Page 45: Fan Connectors
Four 3 pin connectors are available for controlling and monitoring external fans (12 volt). For the monitoring the fans must provide a corresponding speed signal. Pinout fan connector: Name Description ground 12 volt supply regulated TACHO fan monitoring signal Beckhoff New Automation Technology CB1050 page 45... -
Page 46: Jumper Settings
If you reset the CMOS this does not only bring all settings made in BIOS setup back to default values, it also clears the date and time information stored in CMOS. So don't forget that, after the Clear CMOS procedure, you will have to set the clock again. page 46 Beckhoff New Automation Technology CB1050... -
Page 47: Bios Select
3.5.2 BIOS Select The CB1050 has two firmware hubs which makes it possible to store different BIOS versions in each hub. If you then want to change from one BIOS to the other the "BIOS Select" jumper must be used. In the default configuration this jumper is open which means that BIOS 1 is active. -
Page 48: Jumper: Keyboard Power (Kbpwr)
VCC or standby power supply SVCC. You can switch between the two by using the KBPWR jumper. For VCC you need to short pins 1 and 2, for SVCC please short pins 2 and 3. page 48 Beckhoff New Automation Technology CB1050... -
Page 49: Bios Settings
(usually somewhere above the disabled item on the same screen). Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will open either a sub menu or a dialog screen. Beckhoff New Automation Technology CB1050 page 49... -
Page 50: Standard Cmos Features
EGA/VGA / CGA 40 / CGA 80 / Mono Halt On Options: All Errors / No Errors / All, But Keyboard / All, But Diskette / All, But Disk/Key Base Memory Options: none page 50 Beckhoff New Automation Technology CB1050... - Page 51 Standard CMOS Features Chapter: BIOS Settings Extended Memory Options: none Total Memory Options: none Beckhoff New Automation Technology CB1050 page 51...
-
Page 52: Ide Primary Master/Slave
Options: CHS / LBA / Large / Auto Capacity Options: none Cylinder Options: none Head Options: none Precomp Options: none Landing Zone Options: none Sector Options: none page 52 Beckhoff New Automation Technology CB1050... -
Page 53: Advanced Bios Features
USB-ZIP / USB-CDROM / USB-HDD / WinCE / Disabled Boot Other Device Options: Enabled / Disabled Swap Floppy Drive Options: Enabled / Disabled Boot Up Floppy Seek Options: Enabled / Disabled Beckhoff New Automation Technology CB1050 page 53... - Page 54 OS Select For DRAM > 64MB Options: Non-OS2 / OS2 HDD S.M.A.R.T. Capability Options: Enabled / Disabled Report No FDD For WIN 95 Options: No / Yes Full Screen LOGO Show Options: Enabled / Disabled page 54 Beckhoff New Automation Technology CB1050...
-
Page 55: Cpu Feature
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Thermal Management Options: none Delay Prior to Thermal Options: none CPU Speed and Voltage Options: none Beckhoff New Automation Technology CB1050 page 55... -
Page 56: Advanced Chipset Features
400/266/133/267 MHz / 400/333/166/250 MHz / Auto Max 400/333 MHz System BIOS Cacheable Options: Enabled / Disabled Video BIOS Cacheable Options: Enabled / Disabled Memory Hole At 15M-16M Options: Enabled / Disabled page 56 Beckhoff New Automation Technology CB1050... - Page 57 Auto / DVI+CRT Mode 1 / DVI+CRT Mode 2 / LVDS 640*480 / LVDS 800*600 / LVDS 1024*768 / LVDS 1280*1024 / LVDS 1600*1200 / CRT Current Configuration Options: none Enable 2nd VGA PCI Options: Enabled / Disabled Beckhoff New Automation Technology CB1050 page 57...
-
Page 58: Integrated Peripherals
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults OnChip IDE Device Sub menu: see "OnChip IDE Devices" (page 59) Onboard Device Sub menu: see "Onboard Devices" (page 60) SuperIO Device Sub menu: see "SuperIO Devices" (page 61) page 58 Beckhoff New Automation Technology CB1050... -
Page 59: Onchip Ide Devices
Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4 IDE Secondary Master UDMA Options: Disabled / Auto IDE Secondary Slave UDMA Options: Disabled / Auto IDE HDD Block Mode Options: Enabled / Disabled Beckhoff New Automation Technology CB1050 page 59... -
Page 60: Onboard Devices
Enabled / Disabled AC97 Audio Options: Disabled / Auto Init Display First Options: Onboard/AGP / PCI Slot Touch Options: Enabled / Disabled Onboard LAN BootROM Options: Enabled / Disabled page 60 Beckhoff New Automation Technology CB1050... -
Page 61: Superio Devices
IrDA / ASKIR / Normal RxD , TxD Active Options: Hi,Hi / Hi,Lo / Lo,Hi / Lo,Lo IR Transmission Delay Options: Enabled / Disabled UR2 Duplex Mode Options: Full / Half Beckhoff New Automation Technology CB1050 page 61... - Page 62 Disabled / 378/IRQ7 / 278/IRQ5 / 3BC/IRQ7 Parallel Port Mode Options: SPP / EPP / ECP / ECP+EPP / Normal EPP Mode Select Options: EPP1.9 / EPP1.7 ECP Mode Use DMA Options: 1 / 3 page 62 Beckhoff New Automation Technology CB1050...
-
Page 63: Power Management Setup
HDD Power Down Options: Disabled / 1 Min ... 15 Min Soft-Off by PWR-BTTN Options: Instant-Off / Delay 4 Sec PWRON After PWR-Fail Options: Former Sts / On / Off Beckhoff New Automation Technology CB1050 page 63... - Page 64 Enabled / Disabled Secondary IDE 0 Options: Enabled / Disabled Secondary IDE 1 Options: Enabled / Disabled FDD,COM,LPT Port Options: Enabled / Disabled PCI PIRQ[A-D]# Options: Enabled / Disabled page 64 Beckhoff New Automation Technology CB1050...
-
Page 65: Pnp/Pci Configuration
Resources Controlled By Options: Auto(ESCD) / Manual IRQ Resources Sub menu: see "IRQ Resources" (page 66) Memory Resources Sub menu: see "Memory Resources" (page 67) PCI/VGA Palette Snoop Options: Enabled / Disabled Beckhoff New Automation Technology CB1050 page 65... -
Page 66: Irq Resources
IRQ-11 assigned to Options: PCI Device / Reserved IRQ-12 assigned to Options: PCI Device / Reserved IRQ-14 assigned to Options: PCI Device / Reserved IRQ-15 assigned to Options: PCI Device / Reserved page 66 Beckhoff New Automation Technology CB1050... -
Page 67: Memory Resources
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Reserved Memory Base Options: N/A / D000 / D800 Reserved Memory Length Options: 8K / 16K / 32K Beckhoff New Automation Technology CB1050 page 67... -
Page 68: Pc Health Status
Options: none +3.3 V Options: none +5.0 V Options: none +1.5 V Options: none -5 V / -12 V Options: none 12 V / DDR 1.25V Options: none page 68 Beckhoff New Automation Technology CB1050... - Page 69 Chapter: BIOS Settings S3.3 V / S1.5 V Options: none VBatt Options: none Fan1 / 2 Speed Options: none Fan3 / 4 Speed Options: none Board Revision Options: none Beckhoff New Automation Technology CB1050 page 69...
-
Page 70: Frequency/Voltage Control
Spread Spectrum 0.3% Center ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Auto Detect PCI Clk Options: Enabled / Disabled Spread Spectrum Options: none page 70 Beckhoff New Automation Technology CB1050... -
Page 71: Load Fail-Safe Defaults
Forgotten or lost passwords are a frequent problem. 4.14 Save & Exit Setup Settings are saved and the board is restarted. 4.15 Exit Without Saving This option leaves the setup without saving any changes. Beckhoff New Automation Technology CB1050 page 71... -
Page 72: Bios Update
If you try to update the BIOS using the wrong file the board will not start up again. page 72 Beckhoff New Automation Technology CB1050... -
Page 73: Mechanical Drawings
PCB: Mounting Holes Chapter: Mechanical Drawings 6 Mechanical Drawings 6.1 PCB: Mounting Holes Beckhoff New Automation Technology CB1050 page 73... -
Page 74: Technical Data
9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. page 74 Beckhoff New Automation Technology CB1050... -
Page 75: Thermal Specifications
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. Beckhoff New Automation Technology CB1050 page 75... -
Page 76: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 77 Annex: Post-Codes Beckhoff New Automation Technology CB1050 page 77...
-
Page 78: I Annex: Post-Codes
Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259. Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259 Testing the function of the interrupt controller (8259). Initialise EISA slot (if existent). page 78 Beckhoff New Automation Technology CB1050... - Page 79 4. Initialise the ACPI table (top of memory). 5. Initialise and link ROMs on ISA cards 6. Assignment of PCI-IRQs 7. Initialising of the advanced power management (APM) 8. Set back the IRQ-register. Beckhoff New Automation Technology CB1050 page 79...
- Page 80 Unpacking of the packed BIOS program codes into the random access memory. Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset hook. Testing of the CMOS read/write functionality Boot trial over boot-loader-routine (software-interrupt INT 19h) page 80 Beckhoff New Automation Technology CB1050...
-
Page 81: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Function Address IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) (COM3) IRQ3 COM1 IRQ4 COM2 IRQ5 (COM4) IRQ6 IRQ7 LPT1 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse Beckhoff New Automation Technology CB1050 page 81... -
Page 82: Pci Devices
LAN internal ICH4 ID103A SMB Devices Function Address 10-11 Standard slave address ICH4 60-61 Reserved by BIOS 88-89 BIOS defined slave address ICH4 A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF Reserved by BIOS D2-D3 ICS950813 page 82 Beckhoff New Automation Technology CB1050...
