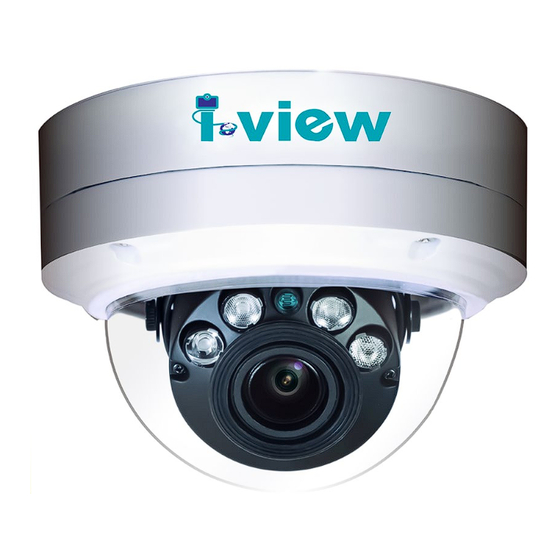

- Page 1 DM-12MIPS/DM-5MIPS04/ DM-3MIPS04 DM-2MIPS04 oPeratIon Manual Version: V1.1 Doc. No.: 1060714001...
- Page 2 Safety information This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 fire or electric shock. 8. If this product fails to operate normally, contact the nearest service center and never disassemble or modify this product in any way. (I-View is not liable for problems caused by unauthorized modifications or attempted repair.) 9.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 5 such as vases, shall be placed on the apparatus. SAFETY INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received including interference that may cause undesired operation.
-
Page 6: About This Guide
If technical problems arise with the use of our products in which you and your vendor cannot resolve, please try the following: If you have an Internet connection, visit the I-View website http://www.i-view.com.tw (Taiwan) for any software or product updates, or email to support@i-view.com.tw (Taiwan) or Tel: 886-3-510-3001 Fax: 886-3-510-3002 (Taiwan). -
Page 7: Table Of Contents
Table of Contents Chapter 1. Introduction ---------------------------------------------------------------------------------------- 8 1-1. Highlights of your new Network IP Camera ------------------------------------------------ 8 1-2. Product Specification --------------------------------------------------------------------------- 9 1-3. Packaging Contents --------------------------------------------------------------------------- 19 1-4. Product Dimension ---------------------------------------------------------------------------- 19 1-5. Product Parts Description -------------------------------------------------------------------- 20 Chapter 2. Camera Installation------------------------------------------------------------------------------ 22 2-1. -
Page 8: Chapter 1. Introduction
Chapter 1. Introduction 1-1. Highlights of your new Network IP Camera Congratulates on purchasing this high-resolution 12MP/5MP network IP Camera! This IP Camera provides 5M pixels high-resolution video quality, with its advanced megapixel lens; you can view remote images in more detail than conventional close-circuit cameras. Other highlights of this network IP Camera include: ... -
Page 9: Product Specification
1-2. Product Specification DM-12MIPS04 Series System Platform: High performance DSP; 1024MB Flash; 2048MB DDR III RAM and Linux Embedded O.S. Image Device 1/1.7" 12MP Sony progressive scan CMOS sensor Video Setting Compression: Video: 0.1M ~ 20M bits/sec (CBR/VBR/LBR configurable) H.265/H.264 HP/MP/BP, M-JPEG;... - Page 10 Protocol: HTTP, HTTPS, TCP, IPv4, IPv6, PPPoE, UDP, SMTP V1/V2, FTP, SSH, QoS, DHCP, DDNS, NTP, DNS, SNMP, RTSP, CGI, Onvif, Bonjour, 802.1x, UPnP, STARTTLS, Multicast, RTMP. Interface: 10BASE-T/100 BASE-TX. Compatible: Onvif compliant Security Password Protection, User access log; IP address filtering, and Mac number filtering, Multi-level user access with password protection.
- Page 11 Event notification: Event notification via Pop up video, send snapshot via email and trigger alarm output. Update: On line Firmware updates. Browse I.E. 7.0 above; Safari Browser. Firefox and Chrome V3.0 above with plug in. Housing Aluminum housing with IP 66 Waterproof & IK10 Vandal resistant and 3-Axis bracket design. Dimension/Weight Ø...
- Page 12 Frame Rate: 30 fps for all resolution @ H.265/H.264/M-JPEG Mode; Frame rate can be adjustable by user. Streaming: Multi-Stream H.265/H.264 Base/Main/High Profile and Motion JPEG video streaming Control: Brightness, Contrast, Saturation, Sharpness, Exposure, Motion detection, Mirror, Corridor mode, Shutter, Privacy mask, Flicker less, 3D Noise reduction, Defog, IRIS, AES, AWB, AGC, BLC, WDR, ROI, Audio gain, Alarm in/out.
- Page 13 Signal: 6KV@ 102/700μS Differential mode. Lens & IR Illuminators Vari -Focal Lens: f=3.6-11 mm / F1.4-F2.4 (H: 110.3°~45.6°; V: 55.5°~24.1°) Motorized Lens: f=3.6-11 mm / F1.4-F2.4 (H: 110.3°~45.6°; V: 55.5°~24.1°) IR Cut: Built on removable IR-cut filter for day & night function. IR Illuminators: 4 pieces VCSEL IR Illuminators effective up to 30 meters Storage Micro SD slot for SD/SDHC card storage;...
- Page 14 DM-2MIPH04 Series System Platform: High performance DSP; 1024MB Flash; 2048MB DDR III RAM and Linux Embedded O.S. Image Device 1/2.8" 2MP Sony progressive scan CMOS sensor Video Setting Compression: Video: 0.1M ~ 12M bits/sec (CBR/VBR configurable) H.265/H.264 HP/MP/BP, M-JPEG; Audio: G.711μ-low/a-low Codec Resolution: Streaming 1: 1920x1080, 1280x1024, 1280x960, 1280x720.
- Page 15 Protocol: HTTP, HTTPS, SSL, TCP/ IP, IPv4, IPv6, PPPoE, UDP, SMTP, FTP, QoS, DHCP, DDNS, NTP, DNS, SNMP, RTSP, RTP/RTCP, Bonjour, UPnP, IGMP, 802.1X Interface: 10BASE-T/100 BASE-TX. Compatible: Onvif compliant Security Password Protection, User access log; IP address filtering Multi-level user access with password protection. I/O Port Standard: Audio in x1;...
- Page 16 Event notification: Event notification using Alarm output triggered. Update: On line Firmware updates. Browse I.E. 7.0 above; Safari Browser. Firefox and Chrome V3.0 above with plug in. Housing Aluminum housing with IP 66 Waterproof & IK10 Vandal resistant and 3-Axis bracket design. Dimension/Weight Ø...
- Page 17 Control: Brightness, Contrast, Saturation, Sharpness, Exposure, Motion detection, Mirror, Corridor mode, Shutter, Privacy mask, Flicker less, 3D Noise reduction, Defog, IRIS, AES, AWB, AGC, BLC, WDR, ROI, Audio gain, Alarm in/out. Video recording by scheduling, Network and NVR failed. Interval Snapshot schedule recording, CPU usage display. Color: 0.0 5ux 1/F1.2;...
- Page 18 f=2.8〜12mm/ F1.2〜F3.7 (DM-3MIPS04-M0312 & DM-3MIPS04-M0312-F ) IR Cut: Built on removable IR-cut filter for day & night function. IR Illuminators: 4 pieces VSEL IR LED Illuminators. Storage Micro SD slot for SD/SDHC card storage; Support Pre-recording and Post recording; Network failed start recording on SD card, SD card failed indicator.
-
Page 19: Packaging Contents
1-3. Packaging Contents Please check the contents of your new Network IP Camera when you unpack the package. If any item is missing, please contact your dealer of purchase for help. The package includes the following items: Network IP Camera x 1ea ... -
Page 20: Product Parts Description
1-5. Product Parts Description A:Video out Port ( Option）, B: Alarm InpuOutput (Option)， A: RJ45 LAN port B: SD card slot IR LED IR Sensor Lens A+: Alarm out A-: Alarm out AI: Alarm in C: Alarm in A/B: Audio in/out AG: Audio ground V+: DC12V(+) V -: DC12V(+) - Page 21 Power block Alarm I/O & Audio in/out port Reset Button Fix hole Rubber Seal plug on the hole for Power & I/O & Audio in/out Cables Micro SD card slot Lens Rubber Seal plug on the hole for RJ45 Ethernet Cables Cabling Cutout &...
-
Page 22: Chapter 2. Camera Installation
Chapter 2. Camera Installation 2-1. Ceiling Mount installation Preparation – Remove the dome cover 1. Use the supplied security torx key to loosen (not remove) the three cover screws. 2. Loosen the three screws (marked with the triangle icon) on the dome base. - Page 23 the screw anchors into the holes. If you want to feed wiring from the hole on the top of the back case, create a circular opening (bottom conduit hole) in the mounting surface. 3) Press the Ethernet cable into the routing path at the bottom of the camera so that the cable will not get in the way when the metal mounting plate is attached, and then arrange these cables through the hole of ceiling or wall.
-
Page 25: Chapter 3. Running Ip Camera By Witness Pro Nvr Software
Chapter 3. Running IP Camera by Witness Pro NVR software. 3-1. Network Deployment General Connection (without PoE) 1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network camera is directly connected to PC. 2. -
Page 26: Install Witness Pro Nvr Software
CD comes with IP camera which allow you run 32/64 channels IP cameras on a PC. Please follow the steps below to complete the installation of Witness Pro NVR software. While into Windows, and insert the I-View DVR software CD into a CD/DVD drive. ... - Page 27 Step 5. Click the “Browse” button to install into a different directory, otherwise click on the “Next” button to install the software into the proposed director. Fig. 1-3-1.5 Installation Step 6. Select “No, I will restart my computer later” and press on the “Finish” button to exit. Fig.
-
Page 28: Setting Ip Camera For Witness Pro Nvr Software
Fig C Fig B Search IP camera: Click this icon will auto search IP cameras of I-View brand. You can refer to the Fig A diagram. Move the Mouse and click to the IP camera which you want to selected... - Page 29 There is no conflict between the define IP address and the other device of the same LAN. b. The Username/Password of all IP cameras are the same. This function for I-View’s IP camera only. Change IP: Click “Change IP” icon to setup the DHCP or Static IP address for individual IP cameras.
- Page 30 Go Web: Click “Go Web” icon to enable the I.E. Browser to check/setup the detail parameters. 2. Setup the parameters of Individual IP camera Fig D...
- Page 31 This section will allow you setup the parameters for individual IP camera for I-View’s and the other brand. Disable channel: This will disable the selected channel when enable this function. Install video codec: Install the video codec of this IP camera when you connect IP camera at first time, if the IP camera cannot display the video on the screen.
- Page 32 Reboot: Click this icon will reboot the IP camera. Setup: Click this icon for detail setting of IP camera (refer to I-View’s IP camera; maybe there are some difference setting diagram when used difference models); you may not need to I.E.
- Page 33 OSD setup: Click this icon to configure the Time stamp format, Time stamp position and Camera Title position. SD setup: Click this icon to setup the SD card configures and description as below: a. Format: Click this icon will format the SD card. You need to stop the recording video clip from I.E.
-
Page 34: Chapter 4. Accessing The Network Camera Via I.e. Browser
Chapter 4. Accessing the Network Camera via I.E. Browser You can use your new Network IP Camera by its web user interface via I.E. web browser. The requirements for viewing IP camera are as below: OS: Microsoft Windows 2000/XP/Vista/7/8. ... - Page 35 Step 4. If you no longer need to use this utility, click “Exit” button to close it. .The default User name / Password is “ admin / 123456 “ and IP address is 192.168.0.123. Make sure all IP Cameras are powered on and connect to local network first. If you have several network connections, please disable connections that are not connected to IP camera, otherwise the IP Search Tool.exe program may fail to search IP camera.
-
Page 36: Install Activex Plug-In On I.e. Browser
4-1. Install ActiveX Plug-in on I.E. Browser You can connect to the IP camera by Internet Explorer or other web browsers for remote viewing by entering IP address in address bar. When you connect to IP Camera, the use login screen will appear when you get connected. - Page 37 that the Windows Firewall has blocked some features of this program’ Click “Allow access” button to enable the IP Camera function properly. When you’re installing Internet Explorer plug-in, you may also be prompted the diagram. Please click “Yes” to allow changes. ...
-
Page 38: Using Rtsp Players
4-2. Using RTSP Players To view the video streaming media using RTSP players, you can use one of the following players that support RTSP streaming such as Quick Time Player, Real Player, VLC media player 1. Launch the RTSP player. 2. - Page 39 This section introduces the function buttons of live window. You can test the IP camera function from your Brower. The button functions are as below: 1. Listen: Click this icon to listen the audio from IP camera when Microphone had installed. 2.
- Page 40 Function description: Press “+” for Zoom in, Focus near. Press “-” for Zoom out, Focus far Zoom in: Drag the Mouse from top left to bottom right.. Zoom out: Drag the Mouse from bottom right to top left. 12. Exit: Click this icon to exit the I.E. browser viewing.
-
Page 41: The Network Setup Function Description
4-4. The Network setup Function Description Click “ Setup “ icon to start setup the parameters of IP camera. You can configure basic IP camera settings like data transfer protocol and data storage folder…etc. Information: Information: Click this button to check the current Mac number, Firmware version, model, and also allow you entry the camera name on the “Device name:”... - Page 42 Device Management: Click this button to setup the parameters of IP camera and the detail description as below: IP Setting: Click this button to modify the current Internet protocol with IPv4 or IPv6, IP address, enable/disable DHCP and DNS IP address. Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.
- Page 43 Alternate DNS: Secondary domain name server that backups the Primary DNS 1. If the DHCP server is available, you can check to automatically obtain an IP address and other network settings from that server. 2. The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 9676. 3.
- Page 44 2. Go to Home > Configuration > Application > Server Settings to add a new email or FTP server. 3. Go to Configuration > Application > Media Settings. Select System log so that you will receive the system log in TXT file format which contains the Network Camera’s public IP address in your email or on the FTP server.
- Page 45 Time Zone setup: Configuring Time Synchronization Manually. When the IP Camera is taken to another time zone, you can use the Time Zone function to adjust the time. The time will be adjusted according to the original time and the time difference between the two time zones. From the Time Zone drop-down menu to select the Time Zone in which the speed dome locates.
- Page 46 QoS: Click this button to adjust the QoS (Quality of Service) volume and it can help solve the network delay and network congestion by configuring the priority of data sending the audio and video and control command. The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.
- Page 47 2. Click Edit icon to select the Protocol and then entry the Internal/External Port. 3. Click Add icon to increase this port. Repeat the 1-3 to add another port. 4. Click Save icon to save the setting. You can edit the Friendly Name of the IP Camera. This name can be detected by corresponding device, such as a router.
- Page 48 SMTP: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, tamper-proof, etc. Before you start, please configure the DNS Server settings before using the Email function. 1.
- Page 49 Sender’s Address: The email address of the sender. SMTP Server address: The SMTP Server IP address or host name (e.g.,smtp.263xmail.com). SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25. Transport Mode: Enable SSL function; please check the SSL if it is required by the SMTP server.
- Page 50 monitor and control managed devices. 2. Agent: A network-management software module on amanaged device which transfers the status of managed devices to the NMS. 3. Managed device: A network node on a managed network. For example: routers, switches, bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.
- Page 51 Identification: Click this button to enable/disable the protocol of ONVIF/RTSP/CGI. Bonjour: Click this button to enable/disable the Bonjour function.
- Page 52 Media Configuration: Click this button to setup the media parameters of IP camera and the detail description as below: Streaming: Configuring Video streaming settings as below: Source Resolution: Select video main streaming resolution from the drop menu. Streaming ID: Streaming 1 means is the “ Main Streaming “ that for the recording purpose. The streaming 2 means is the “...
- Page 53 VBR (Variable Bit Rate): VBR files vary the amount of output data per time segment. It allows a higher bitrates (and therefore more storage space) to be allocated to the more complex segments of media files while less space is allocated to less complex segments. ...
- Page 54 D/N mode: Passive: Select this to enable the Network Camera to automatically switch to B/W image and removes the IR Cut filter by judging the level of ambient light with IR sensor. Active: Select this to enable the Network Camera to automatically switch to B/W image and removes the IR Cut filter by judging the level of ambient light with image sensor..
- Page 55 Basic setup: Adjust the video parameters such as Brightness, Saturation, Sharpness and mirror function. .If you turn the Mirror function on, the image will be flipped. It is like the image in the mirror. The flip direction can be set to off, horizontal and vertical mirror position. Noise reduction: The noise reduction function processes the noise between two frames besides processing the noise in one frame.
- Page 56 Privacy Mask: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Enable Privacy mask function, click and drop the left button of Mouse for setup up the mask. Allow setup several mask areas, but the total areas cannot exceed 5% of image.
- Page 57 Video system: Choice the video system for the TV out (Composite signal). . The maximum frame rate will be 30 fps when choice the NTSC mode and 25fps at the PAL mode. ROI: ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance.
- Page 58 Device I/O : Click this button to setup the audio in, RS-485 and Alarm I/O. Audio setup: Click this button to setup the audio recording, it supports the gain from 1-100, the value is bigger and audio volume is higher. There are 2 audio codec (G7.11 u-Low and a-Low modes) ...
- Page 59 Alarm I/O: Alarm input: Setup the name of alarm input and define the level (High / Low) of trigger single. Alarm output: Setup the name of alarm output; define the mode (NC or NO) and trigger period. (0 ms: Continue trigger)
- Page 60 Alarm Trigger: You can setup the image motion trigger and sensor alarm trigger from this section. The detail process show as below: Motion alarm: Enable Motion detection function and you can setup the trigger schedule and detection area. You can select the region area number then adjust the “ Sensitivity” and “...
- Page 61 Alarm trigger: The alarm trigger almost same as Motion alarm, please refer the description of Motion alarm section. Vibration Alarm: The vibration Alarm almost same as Motion alarm, please refer the description of Motion alarm section.
- Page 62 Recording: Click this button to setup the type of triggered recording, storage media and schedule recording. You can setup the Pre recording & Post recording period with the video and picture format on difference storage device. Please refer the detail process as below: ...
- Page 63 seconds, the IP Camera starts to record at 9:59:55. Post-record: The time you set to stop recording after the scheduled time or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the IP Camera records until 11:00:05.
- Page 64 Local path: Setup the saving path of video clips and snapshot on the PC which connect this IP camera. Snapshot path: Select the snapshot media via FTP server or SD card. To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your IP camera.
- Page 65 Account: Setup and add the new authorized users from this section. Group: Define the privilege of Group user, there are three levels Group: Administer, Operator and Media user. User: Click this button to create a new user or delete/ modify available user. There are three user accounts, Media user, Operator and Administer.
- Page 66 Protocol: The IP camera support the Onvif protocol and you will find out the version. Maintenance: Click this button to update the firmware, restore the default setting and check the view log …etc. Please refer the detail process as below: ...
- Page 67 Reset: You can choice reset the IP address or all parameters become to the default setting. Click the “ Reset IP address “ icon just let the IP address only become to default only, the reset parameters will keep the used setting. Click the “Reset “...
-
Page 68: Chapter 5. Troubleshooting
Chapter 5. Troubleshooting Before you send this IP Camera back to your dealer when you found this IP Camera is not working properly, please checks the table as below to save your time. Problem description Possible solution(s) Can’t connect to IP Camera ...
