I-View ANYCAM IR-4IPA03 Operation Manual

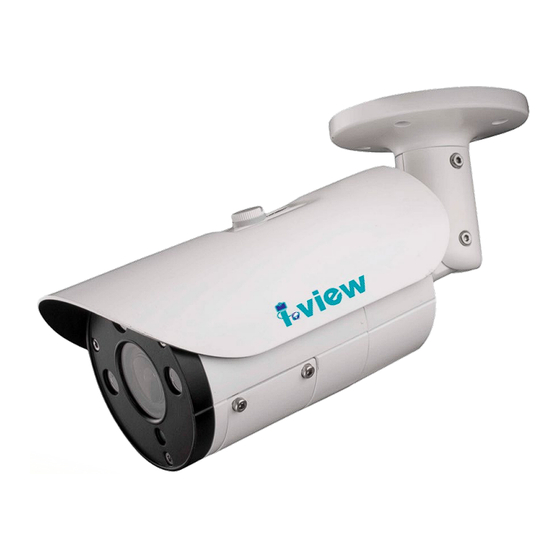

Ir bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

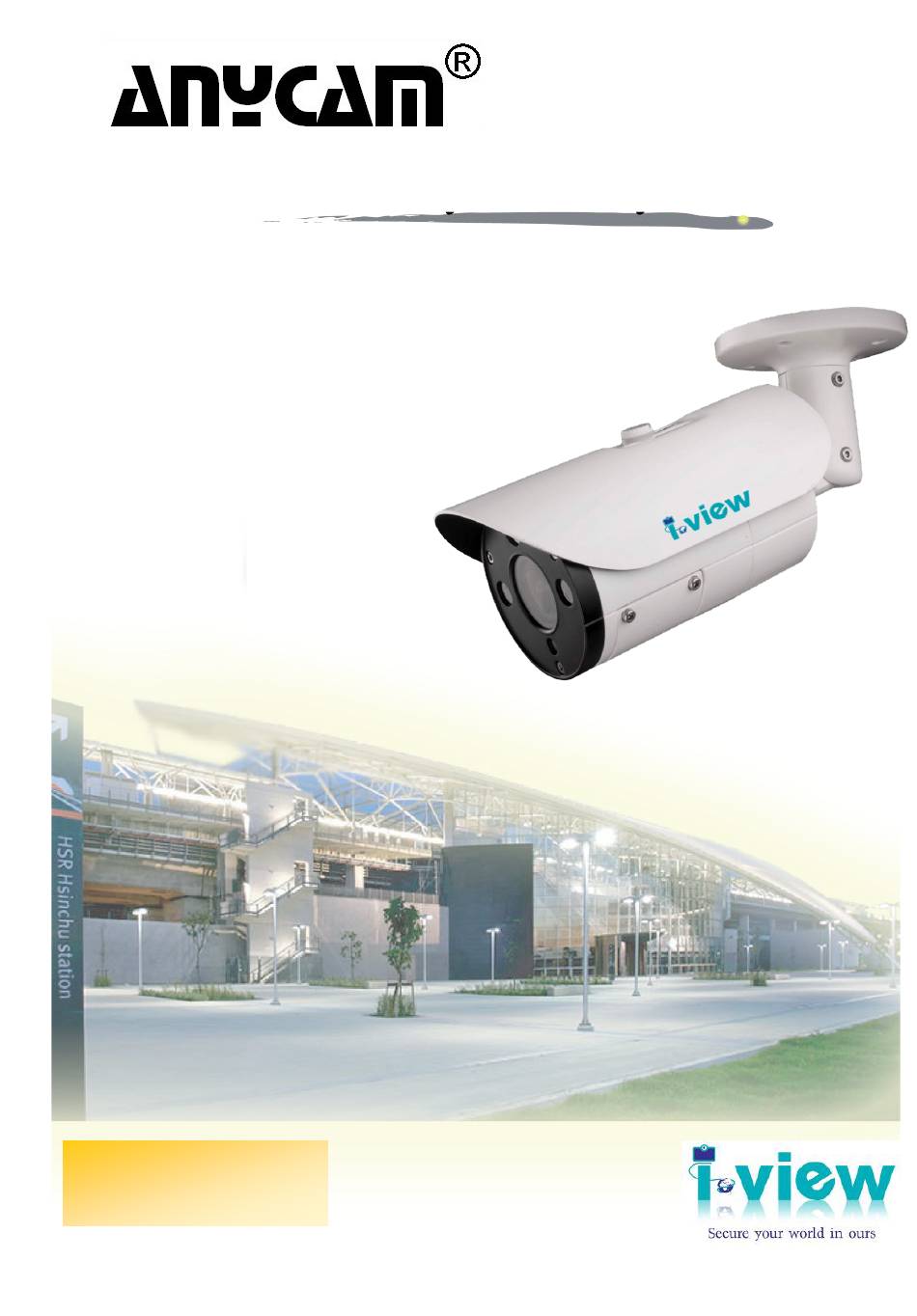

5/3/2-mega Pixels Network camera
ir-4iPa03/ ir-2iPm03
ir Bullet camera series
oPeratioN meNu
Version: V1.0
Doc. No.: 1071028001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANYCAM IR-4IPA03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for I-View ANYCAM IR-4IPA03

Summary of Contents for I-View ANYCAM IR-4IPA03

  • Page 1 5/3/2-mega Pixels Network camera ir-4iPa03/ ir-2iPm03 ir Bullet camera series oPeratioN meNu Version: V1.0 Doc. No.: 1071028001...
  • Page 2 Safety information This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. Megapixels This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3 fire or electric shock. 8. If this product fails to operate normally, contact the nearest service center and never disassemble or modify this product in any way. (I-View is not liable for problems caused by unauthorized modifications or attempted repair.) 9.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS  Read these instructions.  Keep these instructions.  Heed all warnings.  Follow all instructions.  Do not use this apparatus near water.  Clean only with dry cloth.  Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 SAFETY INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received including interference that may cause undesired operation.
  • Page 6 If technical problems arise with the use of our products in which you and your vendor cannot resolve, please try the following: If you have an Internet connection, visit the I-View website http://www.i-view.com.tw (Taiwan) for any software or product updates, or email to support@i-view.com.tw (Taiwan) or Tel: 886-3-510-3001 Fax: 886-3-510-3002 (Taiwan).

  • Page 7: Table Of Contents

    Table of Contents Chapter 1. Introduction ---------------------------------------------------------------------------------------- 8 1-1. Highlights of your new Network IP Camera ------------------------------------------------ 8 1-2. Packaging Contents --------------------------------------------------------------------------- 15 1-3.Product Dimension ----------------------------------------------------------------------------- 15 Chapter 2. Camera Installation------------------------------------------------------------------------------ 18 2-1. Wall Mount installation ----------------------------------------------------------------------- 18 Chapter 3. Running IP Camera by Witness Pro NVR software ------------------------------------- 19 3-1.

  • Page 8: Chapter 1. Introduction

    Chapter 1. Introduction 1-1. Highlights of your new Network IP Camera Congratulates on purchasing this IVA (Intelligent Video Analytic) 4 Mega pixels network IP Bullet Camera! This IP Camera provides 4-Mega pixels high-resolution video quality, with its advanced megapixel lens; you can view remote images in more detail than conventional close-circuit cameras. Other highlights of this network IP Camera include: ...
  • Page 9 IR-4MIPA03 Series System Platform: High performance SoC CPU; Linux Embedded O.S. Image Device 1/3" 4MP pixels (2572 X 1520 pixels) progressive CMOS sensor. . Video Setting Compression: Video: 16KM ~ 32M bits/sec (CBR/VBR configurable) H.265MP/H.264 HP/MP/BP, M-JPEG; Audio: G.711μ-low/ Codec (8K sample rate) Resolution: Main Streaming: 2572x1520, 2560x1440, 2048x1520, 1920×1080, 1280x960, 1280×720, D1, VGA, 640*360, 352 x 288.
  • Page 10 Configure Import/Export parameters, Restore, Default setup Audio Setting G.711μ-Low audio encoding and decoding; 2-way audio; External Microphone input; Speaker output. 2Vp-p audio input and audio output with 600Ω impedance. IVA Functions (Optional) Object Counting, Unattended /Missing Object, Loitering, Tripwire Detection. Smart Motion detection, Color Cast, Lose Focus, Image Expose, Image Dark, Video Loss, Video Occlusion , Network Failed, IP address Conflict, Illegal Access, Object Detection Network...
  • Page 11 IR Cut: Built on removable IR-cut filter for day & night function. Storage Micro SD slot for SD/SDHC card storage; Support Prerecording and Post recording; Network failed start recording on SD card, SD card failed indicator. Backup/Restore to device configuration file to FTP/SMTP server. Management Time management: Manual Time Setting;...
  • Page 12 IR-2MIPM03 Series System Platform: High performance SoC CPU; Linux Embedded O.S. Image Device 1/2.9" 2 M pixels (1920x 1080 pixels) SONY progressive CMOS sensor. . Video Setting Compression: Video: 16KM ~ 8M bits/sec (CBR/VBR/LBR configurable) H.265MP/H.264 HP/MP/BP, M-JPEG; Audio: G.711μ-low/a-low Codec (64K sample rate) Resolution: Main Streaming: 1920×1080, 1280x1024, 1280x960, 1280×720, D1, VGA, 640*360, 352 x 288.
  • Page 13 IVA Functions (Optional) Object Counting, Unattended /Missing Object, Loitering, Tripwire Detection, Video Loss, Video Occlusion , Network Failed, IP address Conflict, Illegal Access, Object Detection Network Protocol: IP4, IP6, DHCP, DNS, DDNS, HTTP, HTTPs, RTSP, RTMP, UPnP, PPPoE, TCP, UDP, Multicast, NTP, SMTP, SSL. Compatible: Onvif compliant Security Password Protection, User access log;...
  • Page 14 Housing Waterproof IP66 housing with anti-cut cable and 3-Axis bracket. Dimension/Weight Ø 93 mm x 95.5 mm x 263 mm / 0.9 Kg (Including bracket). Operation Power: Maximum 3 W & Max. 8W(IR LED On); PoE IEEE 802.3af Class 3; DV12V Temperature: Temperature -20°C ~ 55°C;...

  • Page 15: Packaging Contents

    1-2. Packaging Contents Check the contents of your new Network IP Camera when you unpack the package. If any item is missing, please contact your dealer of purchase for help. The package includes items as below:  following items: Network IP Camera x 1ea ...
  • Page 16  Product Parts Description Mount panel Sunshield cover Fix hole Fix Screw SD Card slot window Adjust lens window IR LED Top cover Lens IR Sensor Video out Reset button Zoom screw Focus screw  Front side items description: Sunshield cover: It protects the camera from the direct sunlight. IR LED: These infrared LED’s are controlled by the illumination sensor.
  • Page 17 Audio input: Plug in Microphone for audio input (Red RCA port). Alarm in #1: Connect to the sensor input (Dry contact). Alarm in - (Pin 1); Alarm in + (Pin 2), Ground (Pin 3 &4) Alarm out/RS-485: Alarm out (Pin3 - & Pin4 -) connect to the trigger device such as light. RS485 for the PTZ controller (Pin1 A &...

  • Page 18: Chapter 2. Camera Installation

    Chapter 2. Camera Installation 2-1. Wall Mount installation  Wall Mount installation  Fix the camera This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

  • Page 19: Chapter 3. Running Ip Camera By Witness Pro Nvr Software

    Chapter 3. Running IP Camera by Witness Pro NVR software 3-1. Network Deployment General Connection (without PoE) 1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network camera is directly connected to PC. 2.

  • Page 20: Install Witness Pro Nvr Software

    IP camera which allow you run 32/64 channels IP cameras on a PC. Please follow the steps below to complete the installation of Witness Pro NVR software. While into Windows, and insert the I-View DVR software CD into a CD/DVD drive. ...
  • Page 21 Step 5. Click the “Browse” button to install into a different directory, otherwise click on the “Next” button to install the software into the proposed director. Fig. 1-3-1.5 Installation Step 6. Select “No, I will restart my computer later” and press on the “Finish” button to exit. Fig.

  • Page 22: Setting Ip Camera For Witness Pro Nvr Software

    Fig B  Search IP camera: Click this icon will auto search IP cameras of I-View brand. You can refer to the Fig A diagram. Move the Mouse and click to the IP camera which you want to selected and...
  • Page 23 There is no conflict between the define IP address and the other device of the same LAN. b. The Username/Password of all IP cameras are the same. This function for I-View’s IP camera only.  Change IP: Click “Change IP” icon to setup the DHCP or Static IP address for individual IP cameras.
  • Page 24 2. Setup the parameters of Individual IP camera Fig D This section will allow you setup the parameters for individual IP camera for I-View’s and the other brand.  Disable channel: This will disable the selected channel when enable this function.
  • Page 25 The Fig D diagram please refers to “1. Setup the parameters of All IP cameras (For I-View’s IP camera only)” Section  Advance setup: Click this icon will enable the detail parameters setting of IP camera. You need to load the Active X if this NVR is activated this process at first time.
  • Page 26  Reboot: Click this icon will reboot the IP camera.  Setup: Click this icon for detail setting of IP camera (refer to I-View’s IP camera; maybe there are some difference setting diagram when used difference models); you may not need to I.E. Browser for the detail IP camera setting.
  • Page 27 :Click this icon to save the video clips from SD card to HDD of your PC. c. Search: Click this icon and the search time period from SD card. The video clips information will list on the table list. You can playback the video clips of SD card without download them.

  • Page 28: Chapter 4. Accessing Ie, Chrome, Safari And Firefox Browser

    Chapter 4. Accessing IE, Chrome, Safari and Firefox Browser You can use your new Network IP Camera by its web user interface via IE, Chrome, Safari and Firefox. You must know the IP address of IP Camera before you can connect to it. The IP Camera will use DHCP server on your local network to obtain an IP address automatically by default.

  • Page 29: Install Plug-In On Ie, Chrome, Safari And Firefox Browser

    If you have several network connections, please disable connections that are not connected to IP camera, otherwise the IP Search Tool.exe program may fail to search IP camera. 4-1. Install Plug-in on IE, Chrome, Safari and Firefox Browser | You can connect to the IP camera by Internet Explorer or other web browsers for remote viewing by entering IP address in address bar.

  • Page 30: Using Rtsp Players

    For security reason, it will pop up change password message when you log in and pass the checking. Click " Ok" to set up a new password for next time login, press " Cancel" icon to ignore this message. 4-2. Using RTSP Players To view the video streaming media using RTSP players, you can use one of the following players that support RTSP streaming such as Quick Time Player, Real Player, VLC media player...

  • Page 31: The Function Description Of Live Window

    4-3. The Function Description of Live Window After Plug-in is installed, you should be able to see the live video from IP camera as below. This section introduces the function buttons of live window. You can test the IP camera function from your Brower.
  • Page 32 8. Time Stamp and camera name: Paste the time stamp and camera name on the image. You can select the display position. 9. Control Panel: Control Pan/Tile/Zoom, Video parameter,…etc. The detail function will description on next page. 10. Logout: Click this icon to log out. 11.
  • Page 33 Capture: Click this button, to snap the current image and save it as JPG format automatically. The default save path is C:\Program Files\PREVIEW, and the storage path is changeable. Full Screen: Press button or double right click Mouse to enable full screen image. Press the “Esc”...

  • Page 34: The Function Description Of Setup Window

    4-4. The Function Description of Setup Window Click “ Setup “ icon to start setup the parameters of IP camera. You can configure basic IP camera settings like data transfer protocol and data storage folder…etc.  Device Information: Information: Click this button to check the current Mac number, Firmware version, model, and also allow you entry the camera name on the “Device name:”...
  • Page 35  PTZ Setting: Click this button to setup the PTZ setting parameters.  Time Setting: Click this button to setup the time clock, NTP and DST time zone. Time setting:  Click the Device time section to adjust the Date/Time, then click the “Timing” to finish the time clock adjustment.
  • Page 36 Check “ Enable DST” icon and then select the DST period and DST bias time.  Save: Check “ Save “ icon to set up the setting parameters.  Audio Settings: Click this button to setup the Time stamp and Text OSD position. ...
  • Page 37  Display Settings: Click this button to setup the Time stamp and Text OSD position.  Name: Check “ Show” icon and entry the device name or location to show the text on the screen.  Main/Sub/Third Stream OSD: Choose the size of name front which want to show on the main /Sub/Third stream.
  • Page 38  Streaming: Click this button to setup bite rate, codec, resolution, streaming mode…ect.  Streaming Type: Drop and select elect the streaming type- Main streaming, Sub streaming, Third Streaming.  Video Streaming: You can select video streaming only or audio &video complex signal. ...
  • Page 39  Video Parameters: Click this button to setup Resolution, Frame rate, Bit rate…ect.  Day & Night Mode: • Mode: There are Auto/External trigger/Color/B &W modes. Auto mode: Switch color and B&W video that detects by the image sensor. External Trigger: Switch color and B&W video that detects by the IR sensor. Color: Select this model the video always keep on the color video.
  • Page 40 application. • WDR: There are Off/ DWDR/ TWDR modes selectable. The default setting is off. • 3DNR: There are Low/ Mid/ Mid High/High modes selectable. The default setting is Low. • Sharpness: Setup the sharpness of video color, the high value will get more sharpness color. •...
  • Page 41  Light Board Control: • Model: There are Auto/Manual/Off modes to control the IR LED. Auto: Select the Auto mode, the IE LED will adjust the optimum status when viewing the object automatically. Manual: Select the Manual mode; you can adjust the bright of LED by manually. Off: Select the Off mode;...
  • Page 42  Motion Detection: Click this button to setup motion detection function. Following the steps as below to setup the motion detection function.. 1. Check ”Enable” and select the value of sensitivity. The high value will get more sensitivity. 2. Setup the date from drop of week section (Default whole week), and select the time period. You can select multi period per day.
  • Page 43  Video Tempering: Click this button to setup Video Tempering function. Following the steps as below to setup the Video Tempering function.. 1. Check ”Enable” and select the value of sensitivity. The high value will get more sensitivity. 2. Setup the date from drop of week section (Default whole week), and select the time period. You can select multi period per day.
  • Page 44  Privacy Zones: Click this button to setup Privacy mack function. Following the steps as below to setup the Privacy mask function.. 1. Check ”Enable” and then press and drag the left button of Mouse to setup the detection areas which you want paste the mask on the image.
  • Page 45  Target Count: Click this button to setup Target count function.  Enable: Enable or disable the target counting function.  Arming Schedule: Arm schedule of enable Target count. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. ...
  • Page 46  Interval: Set the counting time interval, when it is more than the time interval, the flow counter will reset and enter into next counting period automatically. The maximum is 3600 seconds; 0= Ignore.  Threshold: Set the upper limit value for target counting, the alarm will be triggered automatically when the value is more than the setting.
  • Page 47  Object Left/Lost: Click this button to setup object left and object lost detection function.  Enable: Enable or disable the object left and object lost detection function.  Arming Schedule: Arm schedule of enable object left and object lost detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period.
  • Page 48 automatically when the value is more than the setting.  Email: Check “Email” and once the event triggers that it will send Email to setting email address.  Alarm Output: Check “Alarm output” and once the event triggers, the camera will linkage to alarm output.
  • Page 49  Clear: Click Clear to delete all detection regions  Detection Area: To add new Detection Area (Max. 4 regions) and each line can setup individual corresponding parameters.  Detection Type: There are “Target Entry”, “Target Lave”, “ Target Enter/Leave” and “Target Loiter” modes, and choose one for the detection type.
  • Page 50  Retrograde Detect: Click this button to setup the retrograde detect function.  Enable: Enable or disable the retrograde detect function.  Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. ...
  • Page 51  Email: Check “Email” and once the event triggers that it will send Email to setting email address.  Snapshot: Check “Snapshot” and then select the value of snap interval and Number once the event triggers that the camera will snapshot and save into the SD card or HDD. ...
  • Page 52  Audio Exception: There are 4 audio exception detection- Baby cry, Gunshots, Screaming and Explosions on these section. Each audio has 4 levels (Off/Low/Mid/High). The system will be triggered when detect these 4 kinds audio.  Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period.
  • Page 53  Area Setting: Click “ Drawing “ icon, then press and drag the left Mouse button to setup the detection lines from Area Setting section. Click the right button to complete the detection region setting. You can click “ Swap AB” to exchange the Point A and B position. ...
  • Page 54 Following the steps as below to setup the motion detection function.. 1. Check ”Enable” and select the value of sensitivity. The high value will get more sensitivity. 2. Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period.
  • Page 55  Enable: Enable or disable the video diagnose function.  Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period.  Image Detection Type: There are 5 kind video quality detection modes- Color Cast, Image Blur, Image Bright, Image Dark and video loss.
  • Page 56 1. Check ”Enable” and select the schedule of Face detection. 2. Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. 3. Select the Detection areas or Shield area from “Area type” section, then press and drag the left button of Mouse to setup the area.
  • Page 57  IP Setting: Click this button to modify the current Internet protocol with IPv4 or IPv6, IP address, enable/disable DHCP and DNS IP address. Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN. Use Static IP address: Select this option to manually assign a static IP address to the Network Camera.
  • Page 58 Internet connection Note that to utilize this feature, it requires an account provided by your ISP.  Port Settings: If there is a router and you want to access the speed dome through Wide Area Network (WAN), you need to forward the 3 ports for the IP Camera. Click this button to modify the HTTP (Default is 80), RTSP (Default is 554) or Device Port number (Default is 5050), Https streaming port (Default is 443 and click Save to change the setting.
  • Page 59  Http/ Https: Click this button to enable/disable the Http/Https function and port.  Management Platform: Click this button to setup Server program. This function for the System Integrator only.  AntsWebServer: Enable this program for the Internet Browser viewing. ...
  • Page 60  Multicast: Multicast settings for the Video and audio of Mainstreaming and sub streaming. Click the item to display the detailed configuration information. Check “ Enable Multicast” icon to enable multicast for streams. The uncast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address Therefore, enabling multicast can effectively save Internet bandwidth.
  • Page 61  DDNS: Click this button to setup the DDNS function, there are three default DDNS server for the user choice. If your IP Camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access. Before you start, please registration on the DDNS server is required before configuring the DDNS settings of the IP Camera.
  • Page 62 1. Check “Enable UPnP™ icon from settings interface. 2. Entry the Device Port and then click Save icon to save the setting. You can edit the Friendly Name of the IP Camera. This name can be detected by corresponding device, such as a router. Enable UPnP presentation: Select this option to enable UPnP presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places You can click the shortcut to link to the...
  • Page 63 2. Entry the password and confirm the password again. 3. Entry the SMTP Server IP address or host name (e.g., smtp.263xmail.com). 4. Entry the SMTP Port, the default TCP/IP port for SMTP is 25. 5. Enable SSL function; please check the “SSL” or “Identity Verification” icon, if it is required by the SMTP server.
  • Page 64  Enable: Check “ Handle” icon to enable the alarm input function.  Alarm input: This IP camera support 2 alarm input ports. Select the alarm input port.  Alarm in name: You can define the alarm input name or location. ...
  • Page 65  Output Delay: Entry the value alarm output trigger period. The alarm output will keep on sending the signal of each trigger.  Save: Click “Save” icon to store the setting.  Exception Settings: Click this button to setup the alarm output trigger of exception event. ...
  • Page 66  System Update: Click this button to update the newest Firmware. You can visit www.i-view.com.tw to find put the newest Firmware when needed.  File: Click “ Browse” icon to select the new Firmware file. Please save the Firmware at the C:\ or E:\ path directory to avoid the update failed.
  • Page 67 Note: This section will disappear when the IP camera does not plug the SD card.  Restore: Click this button to restore the parameters setting. .  Export Config: Export and store the existing configuration.  Import Config: Restore the configuration to the IP camera. ...
  • Page 68  Live View Mode: Realtime/ Fluenc two types selectable, the value of them can be adjustable.  Save: Click “Save” icon to store the setting.  Developer: This section for the software developer or system integrator use only. The detail information please contact to i-View Communication Inc. Support@i-view.com.tw...

  • Page 69: The Function Description Of File Window

    4-5. The Function Description of File Window Click “ File “ Section to playback the video clips or snapshot file of IP camera from the SD card or HDD of PC. The File Management interface as shown in the follow figure. Entry the specify period and then click “...

  • Page 70: The Function Description Of Log Window

     Preview Capture: To review preview capture files, search and double click the files to playback the image file.  File Capture: To review capture files in file management, search and double click the files to playback the image file. ...

  • Page 71: Chapter 5. Troubleshooting

    Entry the specify period and then click “ Search “button to find out the view log file.  Main Type: Select the log type to check. There are Alarm/ Exception Settings/ Operation / Setup optional or All to check all log. ...
  • Page 72  Check the LAN cable and Ethernet port of NVR are workable.  Check network routing cable(s).  Check cable distances do not exceed operating distance. No image  If the place where IP camera is installed is too dark, try to add some lights when possible.
