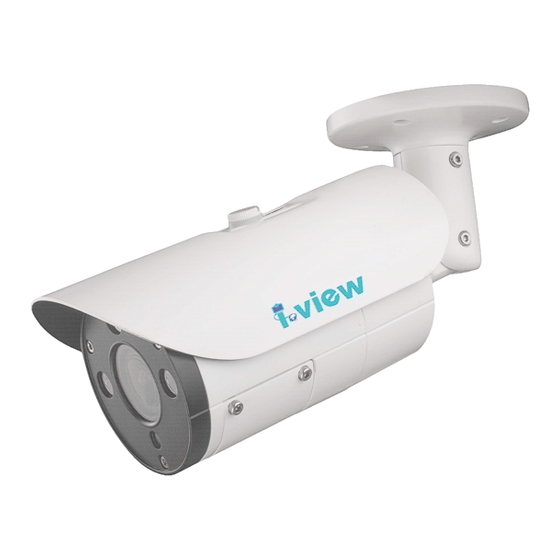

I-View ANYCAM IR-2MIPM03 Series Operation Manual

Ir bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

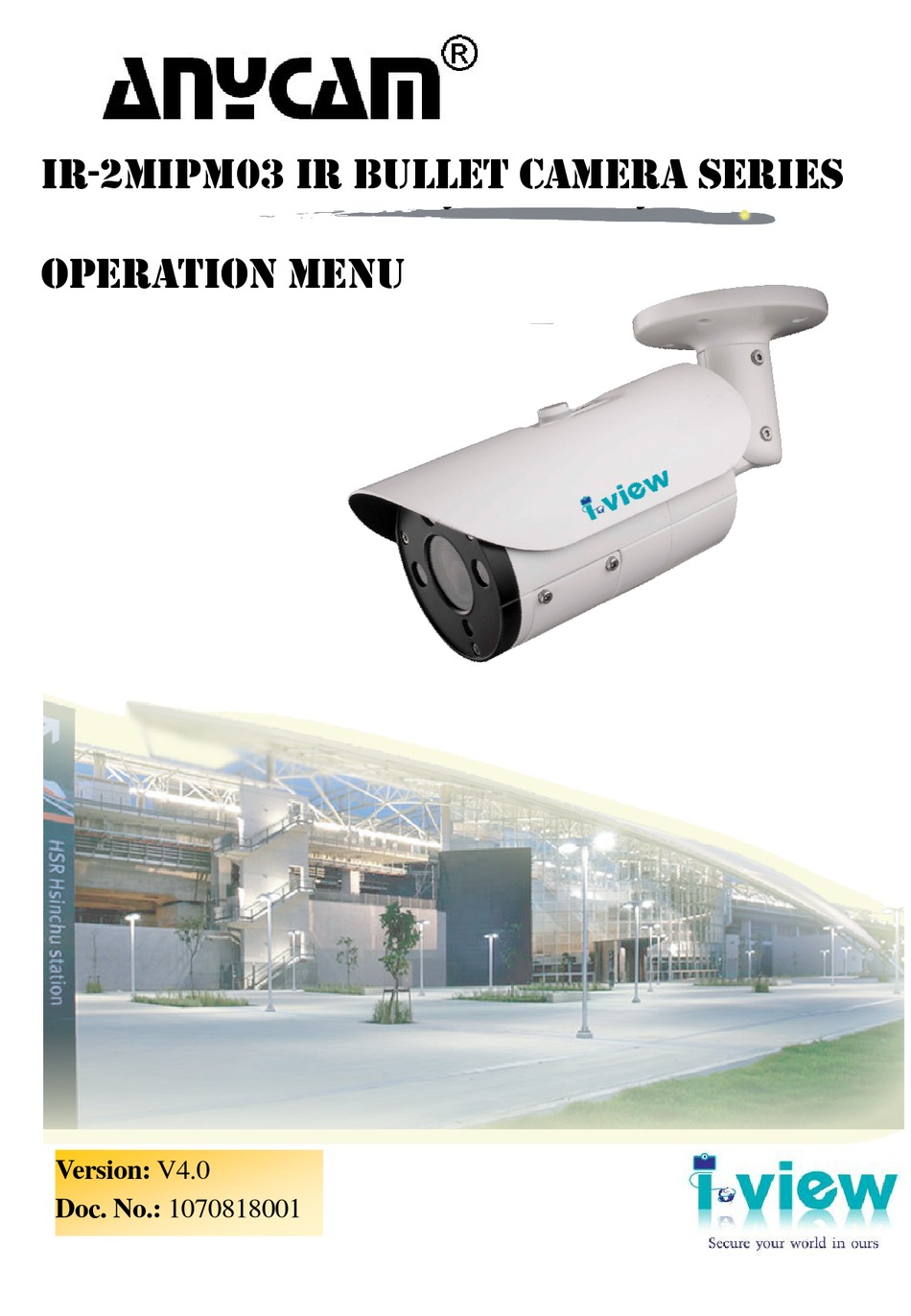

5/3/2-MEGA PIXELS NETWORK CAMERA
IR-2MIPM03 IR BULLET CAMERA SERIES
OPERATION MENU
Version: V4.0
Doc. No.: 1070818001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANYCAM IR-2MIPM03 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for I-View ANYCAM IR-2MIPM03 Series

Summary of Contents for I-View ANYCAM IR-2MIPM03 Series

  • Page 1 5/3/2-MEGA PIXELS NETWORK CAMERA IR-2MIPM03 IR BULLET CAMERA SERIES OPERATION MENU Version: V4.0 Doc. No.: 1070818001...

  • Page 2: Safety Information

    Safety information This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. Megapixels This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3 fire or electric shock. 8. If this product fails to operate normally, contact the nearest service center and never disassemble or modify this product in any way. (I-View is not liable for problems caused by unauthorized modifications or attempted repair.) 9.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (Including amplifiers) that produce heat.
  • Page 5 SAFETY INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received including interference that may cause undesired operation.

  • Page 6: About This Guide

    If technical problems arise with the use of our products in which you and your vendor cannot resolve, please try the following: If you have an Internet connection, visit the I-View website http://www.i-view.com.tw (Taiwan) for any software or product updates, or email to support@i-view.com.tw (Taiwan) or Tel: 886-3-510-3001 Fax: 886-3-510-3002 (Taiwan).

  • Page 7: Table Of Contents

    Table of Contents Chapter 1. Introduction ---------------------------------------------------------------------------------------- 8 1-1. Highlights of your new Network IP Camera ------------------------------------------------ 8 1-2. Product Specification --------------------------------------------------------------------------- 9 1-3. Packaging Contents --------------------------------------------------------------------------- 11 1-4. Product Dimension ---------------------------------------------------------------------------- 12 1-5. Product Parts Description -------------------------------------------------------------------- 13 Chapter 2. Camera Installation------------------------------------------------------------------------------ 14 2-1.

  • Page 8: Chapter 1. Introduction

    Chapter 1. Introduction 1-1. Highlights of your new Network IP Camera Congratulates on purchasing this IVA (Intelligent Video Analytic) 2 Mega pixels network IP Bullet Camera! This IP Camera provides 2-Mega pixels high-resolution video quality, with its advanced megapixel lens; you can view remote images in more detail than conventional close-circuit cameras. Other highlights of this network IP Camera include: Onvif compliant and RTSP protocol support.

  • Page 9: Product Specification

    Product Specification 1-2. IR-2MIPM03 Series System Platform: High performance SoC CPU; Linux Embedded O.S. Image Device 1/2.9" 2 M pixels (1920x 1080 pixels) SONY progressive CMOS sensor. . Video Setting Compression: Video: 16KM ~ 8M bits/sec (CBR/VBR/LBR configurable) H.265MP/H.264 HP/MP/BP, M-JPEG; Audio: G.711 - low/a-low Codec (64K sample rate) μ...
  • Page 10 IVA Functions (Optional) Object Counting, Unattended /Missing Object, Loitering, Tripwire Detection, Video Loss, Video Occlusion , Network Failed, IP address Conflict, Illegal Access, Object Detection Network Protocol: IP4, IP6, DHCP, DNS, DDNS, HTTP, HTTPs, RTSP, RTMP, UPnP, PPPoE, TCP, UDP, Multicast, NTP, SMTP, SSL. Compatible: Onvif compliant Security Password Protection, User access log;...

  • Page 11: Packaging Contents

    Housing Waterproof IP66 housing with anti-cut cable and 3-Axis bracket. Dimension/Weight Ø 93 mm x 95.5 mm x 263 mm / 0.9 Kg (Including bracket). Operation Power: Maximum 3 W & Max. 8W(IR LED On); PoE IEEE 802.3af Class 3; DV12V Temperature: Temperature -20°C ~ 55°C;...

  • Page 12: Product Dimension

    1-4. Product Dimension...

  • Page 13: Product Parts Description

    1-5. Product Parts Description Fix Screw Mount panel Fix hole Sunshield cover Adjust lens window IR LED Top cover Lens IR Sensor Zoom screw Focus screw Front side items description: Sunshield cover: It protects the camera from the direct sunlight. IR LED: These infrared LED’s are controlled by the illumination sensor.

  • Page 14: Chapter 2. Camera Installation

    Chapter 2. Camera Installation 2-1. Wall Mount installation Fix the camera This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

  • Page 15: Chapter 3. Running Ip Camera By Witness Pro Nvr Software

    Chapter 3. Running IP Camera by Witness Pro NVR software 3-1. Network Deployment General Connection (without PoE) 1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network camera is directly connected to PC. 2.

  • Page 16: Install Witness Pro Nvr Software

    IP camera which allow you run 32/64 channels IP cameras on a PC. Please follow the steps below to complete the installation of Witness Pro NVR software. While into Windows, and insert the I-View DVR software CD into a CD/DVD drive. Select the NVR64 or NVR32 software Fig.
  • Page 17 Step 5. Click the “Browse” button to install into a different directory, otherwise click on the “Next” button to install the software into the proposed director. Fig. 1-3-1.5 Installation Step 6. Select “No, I will restart my computer later” and press on the “Finish” button to exit. Fig.

  • Page 18: Setting Ip Camera For Witness Pro Nvr Software

    Fig C Fig B Search IP camera: Click this icon will auto search IP cameras of I-View brand. You can refer to the Fig A diagram. Move the Mouse and click to the IP camera which you want to selected and...
  • Page 19 There is no conflict between the define IP address and the other device of the same LAN. b. The Username/Password of all IP cameras are the same. This function for I-View’s IP camera only. Change IP: Click “Change IP” icon to setup the DHCP or Static IP address for individual IP cameras.
  • Page 20 2. Setup the parameters of Individual IP camera Fig D This section will allow you setup the parameters for individual IP camera for I-View’s and the other brand. Disable channel: This will disable the selected channel when enable this function.
  • Page 21 The Fig D diagram please refers to “1. Setup the parameters of All IP cameras (For I-View’s IP camera only)” Section Advance setup: Click this icon will enable the detail parameters setting of IP camera. You need to load the Active X if this NVR is activated this process at first time.
  • Page 22 Reboot: Click this icon will reboot the IP camera. Setup: Click this icon for detail setting of IP camera (refer to I-View’s IP camera; maybe there are some difference setting diagram when used difference models); you may not need to I.E. Browser for the detail IP camera setting.
  • Page 23 :Click this icon to save the video clips from SD card to HDD of your PC. c. Search: Click this icon and the search time period from SD card. The video clips information will list on the table list. You can playback the video clips of SD card without download them.

  • Page 24: Chapter 4. Accessing Ie, Chrome, Safari And Firefox Browser

    Chapter 4. Accessing IE, Chrome, Safari and Firefox Browser You can use your new Network IP Camera by its web user interface via IE, Chrome, Safari and Firefox. You must know the IP address of IP Camera before you can connect to it. The IP Camera will use DHCP server on your local network to obtain an IP address automatically by default.

  • Page 25: Install Plug-In On Ie, Chrome, Safari And Firefox Browser

    If you have several network connections, please disable connections that are not connected to IP camera, otherwise the IP Search Tool.exe program may fail to search IP camera. 4-1. Install Plug-in on IE, Chrome, Safari and Firefox Browser | You can connect to the IP camera by Internet Explorer or other web browsers for remote viewing by entering IP address in address bar.

  • Page 26: Using Rtsp Players

    For security reason, it will pop up change password message when you log in and pass the checking. Click " Ok" to set up a new password for next time login, press " Cancel" icon to ignore this message. 4-2. Using RTSP Players To view the video streaming media using RTSP players, you can use one of the following players that support RTSP streaming such as Quick Time Player, Real Player, VLC media player...

  • Page 27: The Function Description Of Live Window

    4-3. The Function Description of Live Window After Plug-in is installed, you should be able to see the live video from IP camera as below. 3 4 5 10 11 Zoom In: Scroll up of Mouse to digital zoom in. Zoom Out: Scroll down of Mouse to digital zoom out.
  • Page 28 Control Panel function description Press “+” to increase the valueof “Brightness /Contract “. Press “-” to decrease the valueof “Brightness /Contract “ Click become to default setting. Voice intercom: Click this button to enable 2-Way audio communicate between the PC and IP camera.
  • Page 29 Show Smart Detection Rule: Check it the setting status of Smart detection will display on the screen. Show Smart Detection Result: Check it the event result of Smart detection will pop up on the screen. : The icon on the top, the function description as below: The icon will change to red color when motion detection is triggered.

  • Page 30: The Function Description Of Setup Window

    4-4. The Function Description of Setup Window Click “ Setup “ icon to start setup the parameters of IP camera. You can configure basic IP camera settings like data transfer protocol and data storage folder…etc. Device Information: Information: Click this button to check the current Mac number, Firmware version, model, and also allow you entry the camera name on the “Device name:”...
  • Page 31 PTZ Setting: Click this button to setup the PTZ setting parameters. Time Setting: Click this button to setup the time clock, NTP and DST time zone. Time setting: Click the Device time section to adjust the Date/Time, then click the “Timing” to finish the time clock adjustment.
  • Page 32 Check “ Enable DST” icon and then select the DST period and DST bias time. Save: Check “ Save “ icon to set up the setting parameters. Audio Settings (Reserved) Display Settings: Click this button to setup the Time stamp and Text OSD position.
  • Page 33 Name: Check “ Show” icon and entry the device name or location to show the text on the screen. Main/Sub/Third Stream OSD: Choose the size of name front which want to show on the main /Sub/Third stream. Multi OSD: Check “ Show” icon and entry the text in here if you want to show more information on the screen, the maximum supports 8 lines and 44 characters per line.
  • Page 34 • Mode: There are Auto/External trigger/Color/B &W modes. Auto mode: Switch color and B&W video that detects by the image sensor. External Trigger: Switch color and B&W video that detects by the IR sensor. Color: Select this model the video always keep on the color video. B&W: Select this model the video always keep on the B&W video.
  • Page 35 application. Aperture: • IRIS: Select the Manual/DC-IRIS/P-IRIS mode, it should be matched the IRIS of Lens type. • Lens: Select the Manual/Semiautomatic mode, it should be matched the Lens type which can support the auto focus. Gamma: • Gamma: Select the value to suit for the environment application. •...
  • Page 36 1. Select the Area number, then check “ Enable” icon. 2. Press the left button and drop the mouse to select where want to setup the ROI area. Choose the number from Level section. The level higher will get clearer image of ROI. Click Save icon to set up the setting.
  • Page 37 Video Tempering: Click this button to setup Video Tempering function. Following the steps as below to setup the Video Tempering function.. 1. Check ”Enable” and select the value of sensitivity. The high value will get more sensitivity. 2. Setup the date from drop of week section (Default whole week), and select the time period. You can select multi period per day.
  • Page 38 Privacy Mask: Click this button to setup Privacy mack function. Following the steps as below to setup the Privacy mask function.. 1. Check ”Enable” and then press and drag the left button of Mouse to setup the detection areas which you want paste the mask on the image.
  • Page 39 Target Count: Click this button to setup Target count function. Enable: Enable or disable the target counting function. Arming Schedule: Arm schedule of enable Target count. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “ Drawing “ icon, then press and drag the left Mouse button to setup the trigger line from Area Setting.
  • Page 40 Interval: Set the counting time interval, when it is more than the time interval, the flow counter will reset and enter into next counting period automatically. The maximum is 3600 seconds; 0= Ignore. Threshold: Set the upper limit value for target counting, the alarm will be triggered automatically when the value is more than the setting.
  • Page 41 Object Left/Lost: Click this button to setup object left and object lost detection function. Enable: Enable or disable the object left and object lost detection function. Arming Schedule: Arm schedule of enable object left and object lost detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “...
  • Page 42 automatically when the value is more than the setting. Email: Check “Email” and once the event triggers that it will send Email to setting email address. Alarm Output: Check “Alarm output” and once the event triggers, the camera will linkage to alarm output.
  • Page 43 Clear: Click Clear to delete all detection regions Detection Area: To add new Detection Area (Max. 4 regions) and each line can setup individual corresponding parameters. Detection Type: There are “Target Entry”, “Target Lave”, “ Target Enter/Leave” and “Target Loiter” modes, and choose one for the detection type.
  • Page 44 Line Crossing: Click this button to setup triple wire detection function. Enable: Enable or disable the line cross detection function. Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “...
  • Page 45 Alarm Output: Check “Alarm output” and once the event triggers, the camera will linkage to alarm output. PTZ: Check “PTZ” and once the event triggers, the camera will linkage PTZ camera to move the assign Preset point. Preset: Setup the Preset point for the PTZ camera move to when the event is triggered. Save: Click “Save”...
  • Page 46 other network settings from that server. 2. The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 9676. 3. The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. 4.
  • Page 47 Http/ Https: Click this button to enable/disable the Http/Https function and port. Management Platform: Click this button to setup Server program. This function for the System Integrator only. AntsWebServer: Enable this program for the Internet Browser viewing. Fseye: Enable this program for the App of Mobile phone or Pad remote access. I8S: Enable this program for the SDK function.
  • Page 48 Multicast Config: Click this button to setup Multicast configuration. Multicast: Multicast settings for the Video and audio of Mainstreaming and sub streaming. Click the item to display the detailed configuration information. Check “ Enable Multicast” icon to enable multicast for streams. The uncast video transmission delivers a stream through point-to-point transmission;...
  • Page 49 DDNS Settings: Click this button to setup DDNS configuration. The DDNS is implemented through a dynamic domain resolution server. It requires a PC running in the server with fixed IP address on the Internet. IP Camera DDNS settings interface as above figure. DDNS: Click this button to setup the DDNS function, there are three default DDNS server for the user choice.
  • Page 50 UPnP Settings: Click this button to setup UPuP function.. 1. Click “ Add “ icon to setp UPnP function. . 2. Check “Enabl e UPnp “, then selct thE Protocol, In port and Out port. 3. Click “Save” icon to complete the parameters settings or click” Back “ cancel the setting.. UPnP: Click this button to enable the UPnP (Universal Plug and Play) function.
  • Page 51 Email Settings: Click this button to setup the email parameters. The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, tamper-proof, etc. Before you start, please configure the DNS Server settings before using the Email function. 1.
  • Page 52 FTP Settings: Click this button to setup the FTP server which you want to save the video clips, Email and snapshot file. Exception Settings: Click this button to setup the alarm output trigger of exception event. Exception Type: There are Network Discounted/ IP Address Conflict/ Illegal Access/ HDD Full/HDD (SD) Error, there are 5 exception types.
  • Page 53 Return: Click “Return” icon to quit the setup and log out at the same time. System Update: Click this button to update the newest Firmware. You can visit www.i-view.com.tw to find put the newest Firmware when needed. File: Click “ Browse” icon to select the new Firmware file. Please save the Firmware at the C:\ or E:\ path directory to avoid the update failed.
  • Page 54 Restore: Click this button to restore the parameters setting. . Export Config: Export and store the existing configuration. Import Config: Restore the configuration to the IP camera. Restore: Restore the parameters as default setting, choose the difference items to back to default. Reboot: Reboot the IP Camera.
  • Page 55 Developer: This section for the software developer or system integrator use only. The detail information please contact to i-View Communication Inc. Support@i-view.com.tw...

  • Page 56: The Function Description Of File Window

    4-5. The Function Description of File Window Click “ File “ Section to playback the video clips or snapshot file of IP camera from the SD card or HDD of PC. The File Management interface as shown in the follow figure. Entry the specify period and then click “...

  • Page 57: The Function Description Of Log Window

    Playback function description Play: Click button to playback the video clip. Stop: Click button to stop the playback the video clip. Decrease speed – Decrease the speed of playback. Increase speed – Increase the speed of playback. Copy video clip – Copy current video clip to a specified location for archiving or distribution. Snapshot –...

  • Page 58: Chapter 5. Troubleshooting

    Chapter 5. Troubleshooting Before you send this IP Camera back to your dealer when you found this IP Camera is not working properly, please checks the table as below to save your time. Problem description Possible solution(s) Can’t connect to IP Camera Check the IP address and port number is correct or not Make sure the entry User name/Password is correct.
