KIT JAZZ VIDEOPORTERO GB2 - CHALET
( )
INSTALACIÓN DEL ABREPUERTAS
*
Detalle de la instalación del abrepuertas:
Si el abrepuertas va a ser instalado en una puerta metálica, utilice una broca
de 3,5mm y rosque el agujero realizado. Si la instalación se realiza sobre
puerta de madera, utilice una broca de 3mm.
IMPORTANTE: El abrepuertas debe ser de 12V corriente contínua o alterna
Golmar
.
( )
Con abrepuertas de alterna (necesario alimentador TF-104) y
*
coloque varistor suministrado con el kit directamente sobre los terminales
del abrepuertas para asegurar el buen funcionamiento del equipo.
( )
ESQUEMA DE INSTALACIÓN
*
( )
*
Conexión a una vivienda con un monitor PENTHA y abrepuertas de continua Golmar.
VIVIENDA 1
PENTHA
CÓDIGO 0
( ) 2
( ) 2
F
inal de línea
: Dejar
Dip 6 a On.
Distancias y Secciones:
PENTHA
B
Cable manguera
A
B
2
Trenzado 2x0.75mm
6 m
0
50m
2
( ) 3
Trenzado 2x1mm
65m 60m 15m
FA-
GB /A
2
( ) 3
Distancias con cable Golmar RAP-2150
2
(trenzado 2x1mm ).
A
C
( )
( )
*
1
Para más información, abrepuertas de alterna, un 2º abrepuertas o portón ver manual usuario "TJAZZ PENTHA".
https://doc.golmar.es/search/manual/50122152
3,5 x 25
DIN-7972
M 4 x 8
DIN-963
BUS
Red
100~240Vac
N
L
L
CN
FA-
GB /A
2
BUS (M) BUS(PL)
Placa de acceso
C
10m
SW1
ON
1
2
3
AP+
AP- C1 NA1
CV-
CV+
BUSBUS
( ) 1
AP
Abrepuertas
máx. 12 Vcc/270mA.
4
Kit Jazz Videoportero GB2
Instalación 2 hilos sin polarizar
(Lector de proximidad)
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis .
Golmar reserves the right to make any modifications without prior notice.
Cód.
Web
golmar@golmar.es
GUÍA RÁPIDA
5012
2152
T
JAZZ PENTHA
www.golmar.es
Sistemas de comunicación S.A.
GR REV.0 1
2 7
ES
Need help?
Do you have a question about the Jazz GB2 and is the answer not in the manual?
Questions and answers

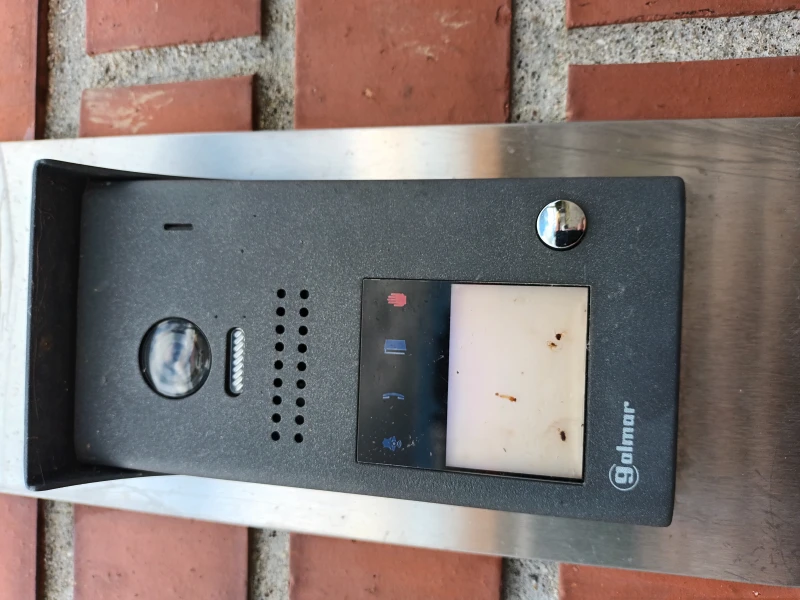

Avaria não dá a campainha nem o video
