golmar JAZZ GB2 User Manual

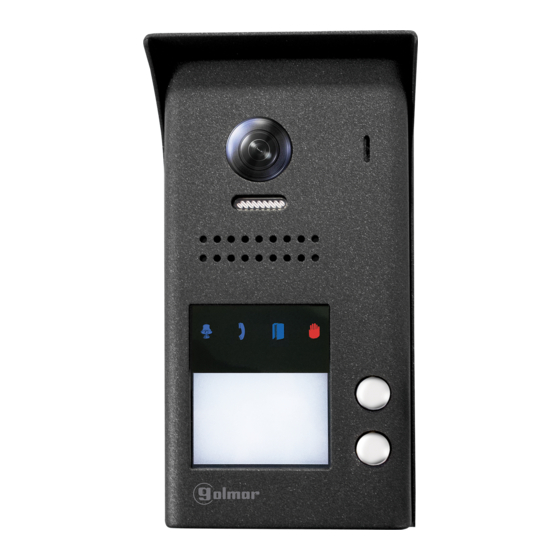

Video door entry system kit 2-wire installation (proximity reader)
Hide thumbs Also See for JAZZ GB2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Manual
TECHNOLOGY
Jazz GB2 Video Door
Entry System Kit
2-wire installation
(Proximity Reader)
Code 50122152
REV.0 1
2 7
T
JAZZ PENTHA
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAZZ GB2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar JAZZ GB2

Summary of Contents for golmar JAZZ GB2

  • Page 1 TECHNOLOGY Jazz GB2 Video Door Entry System Kit 2-wire installation (Proximity Reader) Code 50122152 REV.0 1 JAZZ PENTHA...
  • Page 2 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INTRODUCTION First of all, we thank and congratulate you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased.

  • Page 3: Safety Precautions

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE SAFETY PRECAUTIONS - Always disconnect the power supply before installing or making modifications to the devices. The fitting and handling of these devices must be carried out by authorised personnel The wiring must run at least 40 cm away from any other wiring.

  • Page 4: Description Of Jazz Surface Panel (With Proximity Reader)

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE DESCRIPTION OF THE JAZZ SURFACE PANEL Description of Jazz surface panel (with proximity reader): AP- C1 NA1 BUSBUS Shield. Call button apartment 1. Colour television camera. Metal front fixing screw (x1).

  • Page 5: Exploded View Of The Parts Of The Panel

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE DESCRIPTION OF THE JAZZ SURFACE PANEL Description of the door panel: Exploded view of the parts of the panel. Shield Electronic module Aluminium front JAZZ J5110/PENTHA 1P KIT (Code 11500243). JAZZ/1RF SURFACE PANEL (Code 11525551).

  • Page 6: Removing The Metal Front

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Removing the metal front: Remove the screw at the bottom of the door panel using the Allen key supplied with the product. Remove the metal front as shown in the drawing.

  • Page 7: Codes Assigned To The Door Panel Call Buttons

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Codes assigned to the door panel call buttons: Button 'P2': Codes 16-21.. AP- C1 NA1 BUSBUS (Apartment 2) 2-button door panels only. Button 'P1': Codes 0-5.

  • Page 8: Description Of The Visual Signals On The Door Panel

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Description of the configuration jumper: Important: Do not change the configuration jumper's factory position. Factory setting. Description of the door panel illumination LEDs (for low light conditions): The door panel lighting LEDs will turn on during a call if the door panel lighting at that moment is low.

  • Page 9: Setting Ringtone Operating Mode

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Setting ringtone operating mode: To configure the door panel ringtone when making a call, follow these steps: See p. 7. In the configuration DIP switch, set DIP 1 and DIP 2 to OFF and DIP 3 to ON.

  • Page 10: Setting Card Reader Illumination Operating Mode

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Setting the activation time for CV- and CV+ (lock release) and C1 and NA1 (auxiliary device): To change the activation time for the lock release and auxiliary device, follow these steps: See p. 7.

  • Page 11: Setting The Door Panel Address

    Open the label cover (figure A ), insert the label (figure B ) and close (figure C ). Open the label cover * ( ) * ( ) Customise and download the 'JAZZ LABELLER KIT REV.0117' label from Golmar's documentation website: https://doc.golmar.es/search/manual/50180198...
  • Page 12 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Managing the access keys: The kit enables activation of the video door entry system's lock release with proximity access keys (without placing a call). Supplied with the product are 1 Master Card ADD key, 1 Master Card DELETE key and 5 residents access keys (factory assigned to the door panel) ee 'Description of the proximity access key kit' on p.

  • Page 13: Closing The Door Panel

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE DOOR PANEL Closing the door panel: To finish the mounting of the door panel, replace the metal front. Note: Replace the DIP switch's protective Protective cover silicone cover.
  • Page 14 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE INSTALLATION OF THE POWER SUPPLY UNIT Installing the FA-GB2/A power supply unit: Install the power supply unit in a dry protected location free from the risk of dripping or splashing water.

  • Page 15: Wiring Diagrams

    Configure the end of line in ( ) 1 the last monitor. Lock release DIP 6 to ON. max. 12 Vdc/270mA. Two-apartment installation with 1 PENTHA monitor per house and Golmar DC lock release. Mains APARTMENT 2 APARTMENT 1 100~240Vac PENTHA...
  • Page 16 DIP 6 to ON. ( ) 1 Lock release max. 12 Vdc/270mA. Instalación de dos viviendas con 4 monitores PENTHA en paralelo (In-Out) y abrepuertas de continua Golmar. NOTE: Up to 4 Pentha monitors per installation. Mains 100~240Vac APARTMENT 2...
  • Page 17 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: One apartment with 4 PENTHA monitors, 1 DP-GB2A distributor and Golmar DC lock release. NOTE: Up to 4 Pentha monitors per installation. PENTHA PENTHA CODE 3 CODE 2 End of line...
  • Page 18 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: One apartment with 4 PENTHA monitors, 2 D2L-GB2 distributors and Golmar DC lock release. NOTE: Up to 4 PENTHA monitors per installation. PENTHA PENTHA CODE 3 CODE 2 of line...
  • Page 19 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: Two apartments with 4 PENTHA monitors, 2 DP-GB2A distributors and Golmar DC lock release. NOTE: Up to 4 Pentha monitors per installation. APARTMENT 2 APARTMENT 1 End of line...
  • Page 20 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: Two apartments with 4 PENTHA monitors, 2 D2L-GB2 distributors and Golmar DC lock release. NOTE: Up to 4 Pentha monitors per installation. APARTMENT 2 APARTMENT 1 of line of line...
  • Page 21 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: Video door entry system with 4 access panels, DP-GB2A distributor for door panels and Golmar DC lock release. House with distributors (up to 4 Pentha monitors per installation) House without distributors (up to 4 Pentha monitors per installation)
  • Page 22 JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE WIRING DIAGRAMS: Connection of one Golmar AC lock release. Access panel To the FA-GB2/A power supply TF-104 SAR- 2 1 /24 AP- C1 NA1 BUSBUS 230Vca * ( ) Lock release max.

  • Page 23: Note:

    JAZZ GB2 VIDEO DOOR ENTRY SYSTEM KIT - HOUSE NOTES:...
  • Page 24 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
