Installation
Communications Wire Length
Wire Size Length
#16 AWG 200'
#18 AWG 125'
#20 AWG 80'
#22 AWG 50'
FLEXmax 100
GS Load Center Charge Controller
1
0
5
9
6
Example of Class 2
power supply
900-0238-01-00 REV B
©2018 OutBack Power. All Rights Reserved.
Photovoltaic (PV) Array
RSI
Ground
Electrode
Conductor

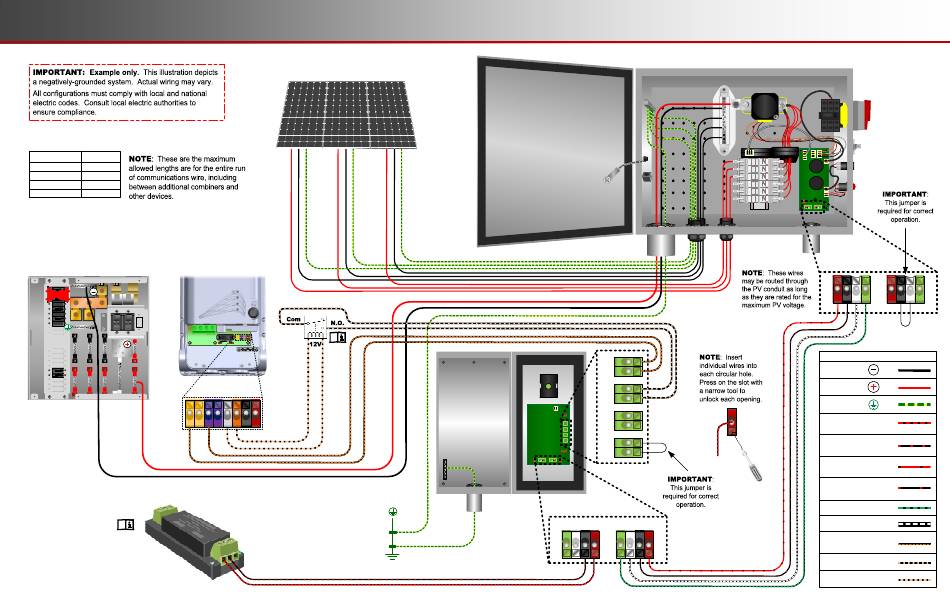

Wiring Drawing
FWPV6-FH600-SDA
J3
J4
J5
Not used
J6
J1 (Power Supply) J2 (Combiner)
J1 J2
DC LEGEND
PV Negative
PV Positive
Ground
24V RSI Supply
Positive (+)
24V RSI Supply
Negative (–)
24V Combiner
Supply Positive (+)
24V Combiner
Supply Negative (–)
PV Arc Fault
PV RSI Safe
J3 to R S
APID HUTDOWN
Terminals
J4 to Relay
Relay to A
UX
