Replacement of heating elements

View from top
7. The heating elements are fitted in the
base plate and secured underneath it with
nuts with fan-shaped washers.
8. Pull off the inner wiring from the heating
element terminals and loosen the moun-
ting nut. Take the heating element out.
Install the new element in the reverse or-
der and connect it.
9. Mount the cover panel of the terminal
box back in position and secure it with 2
screws.
10. Set the heating element block back into
the housing and secure it with 4 screws.
11. Set the decoration ring back on top and
fill the stones into the rock store.
12. Connect the power supply cables.
Notice:
Use sauna stones with the size 100/150 mm.
Make sure to observe the advice for sauna
rocks on the next page.
12

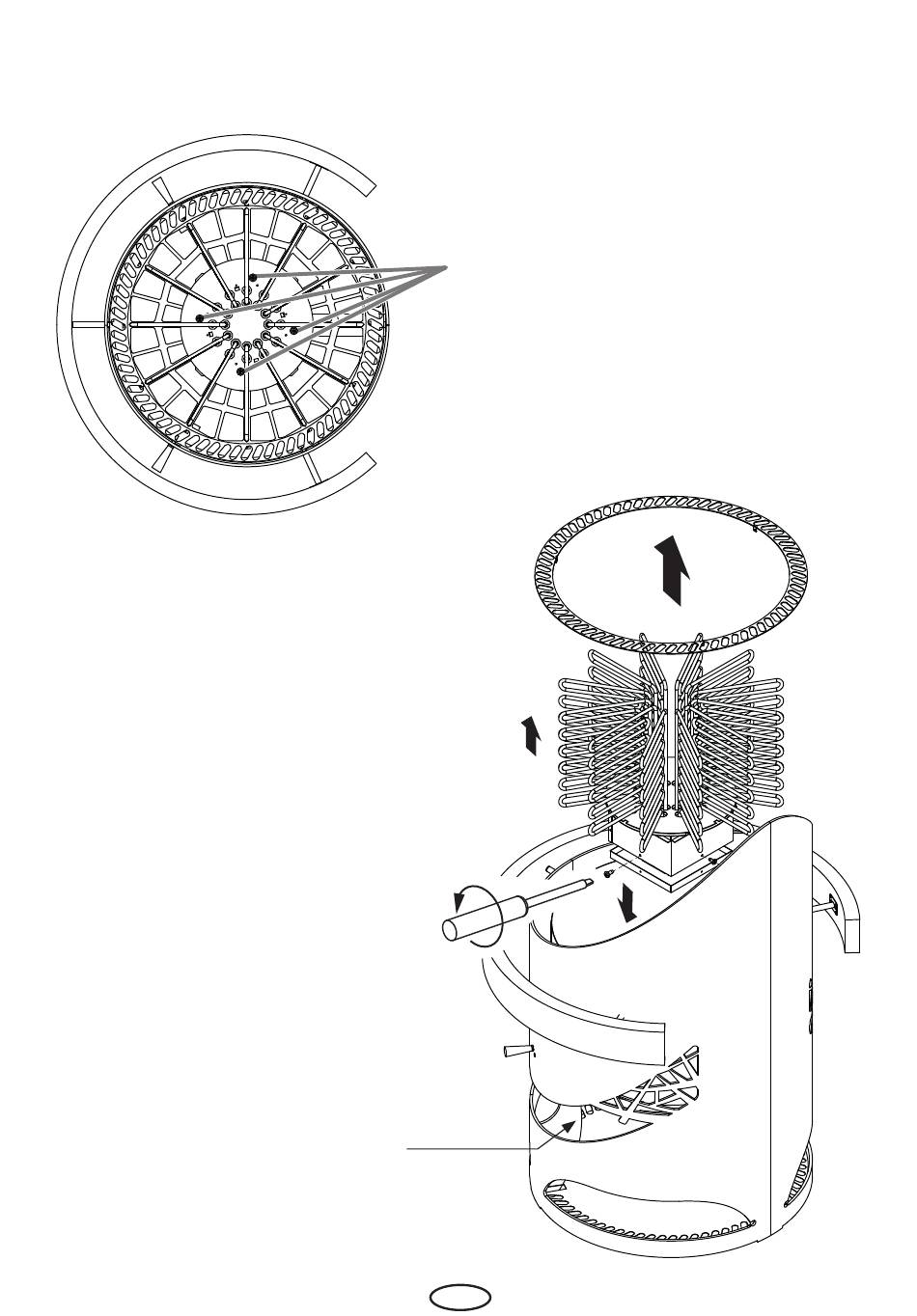

1. Remove stones from the rock store.
2. Loosen 4 securing screws (1) in the base
plate of the heating block.
3. Lift up and take off the decoration ring
(2).
1.
4. Disconnect the plugs of the power sup-
ply cables on the bottom of the heater
through the side opening.
5. Lift up the heating block (3) and take it
out of the heater
6. Loosen two screw of the terminal box co-
ver (bottom side) and take this panel off.
3.
4.
Access to cable
connectors
EN
2.
