Page 1: Quick Installation Guide

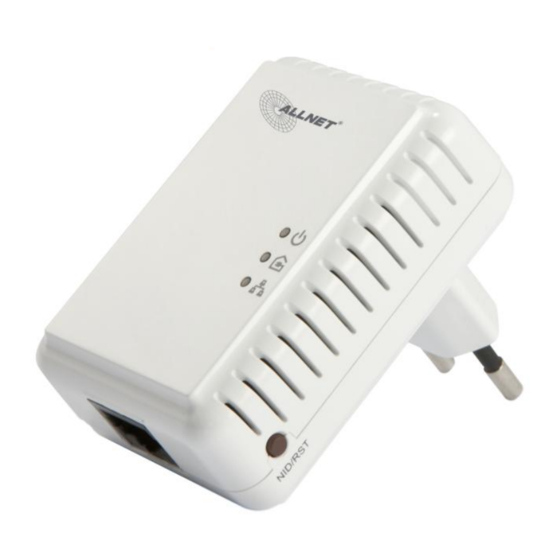

QUICK INSTALLATION GUIDE ALL168205NANO 200Mbps PLC ETHERNET BRIDGE © 2012 . All rights reserved by ALLNET GmbH Page 1... - Page 2 This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install Product installation guide Specification ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 2...
-
Page 3: Important Safety Instructions
If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are followed. If the product exhibits a distinct change in performance. ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 3... - Page 4 4. Check that you have received the following parts for each PC on the network: 200Mbps PLC Ethernet Bridge ALL168205 NANO Ethernet Cable (CAT 5) This installation guide Product-CD containing configuration-software utility and manual-files ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 4...
- Page 5 If you have any problems during installation or operation of the devices, you may use the included configuration and diagnostics utility from the CD. Additional information and the contents of the product-CD may be downloaded from www.allnet.de ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 5...
- Page 6 Plug the provided Ethernet cable into the RJ45 connector of the Bridge and plug the other end of the cable into the Ethernet port of the PC. ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 6...
- Page 7 Plug the provided Ethernet cable into the RJ45 connector of the Bridge and plug the other end of the cable into the Ethernet port of the wireless AP. ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 7...
-
Page 8: Specifications
Relative Humidity Operating : 10~85% Non-Condensing Storage : 5~90% Non-Condensing 100 ~ 240 VAC 50/60Hz Power Source Power approx. 3W (Normal mode) Consumption below 0.5W (Standby mode) Certification ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 8... - Page 9 Ethernet-link is lost for 60 seconds. If you unplug the Ethernet cable, it will get into standby mode after 60 seconds. Under standby mode, PLC- and ETH-LEDs will both be off. ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 9...
- Page 10 Push the device’s “NID/RST” button for 10-15 sec seconds. You will see that the device’s LEDs are all turning off and the ALL168205 NANO restarts. The device’s setting are then reset to the “factory defaults”. ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 10...
-
Page 11: Konformitätserklärung /Declaration Of Conformity
Anschrift: Allnet GmbH Maistraße 2 82110 Germering Germany E-Mail: info@allnet.de support@allnet.de Phone: +49 (0)89 894 222 22 Germering, August 30, 2012 Fax: +49 (0)89 894 222 33 ALL168205 NANO Quick Installation © 2012 ALLNET GmbH All rights reserved Page 11...
