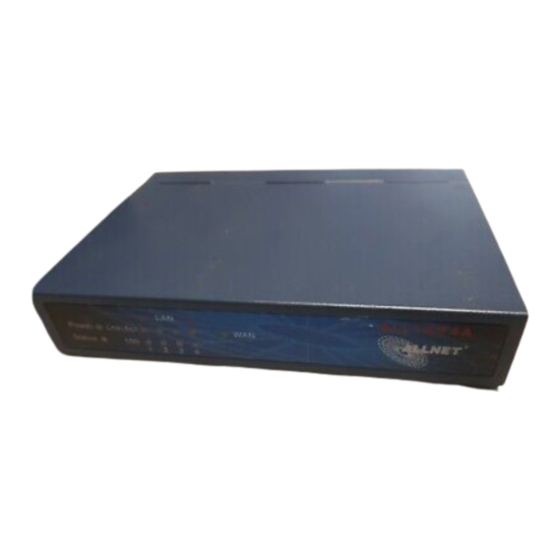

- Page 1 Multi-Function Broadband Router ALL1294A ALL1295 User's Guide...
-
Page 2: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 Broadband Router Features..................... 1 Package Contents ......................3 Physical Details - ALL1294A.................... 4 Physical Details - ALL1295 ....................6 CHAPTER 2 INSTALLATION....................8 Requirements........................8 Procedure ........................... 8 CHAPTER 3 SETUP ......................10 Overview .......................... - Page 3 Overview .......................... 85 General Problems ......................85 Internet Access......................... 85 Printing (For ALL1295 only) ..................86 APPENDIX B SPECIFICATIONS..................89 ALL1294A........................89 ALL1295........................... 90 P/N: 9560J60130 Copyright 2003. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners.
-
Page 4: Chapter 1 Introduction
Chapter 1 Introduction This Chapter provides an overview of the Broadband Router's features and capabilities. Congratulations on the purchase of your new Broadband Router. The Broadband Router is a multi-function device providing the following services: • Shared Broadband Internet Access for all LAN users. - Page 5 Broadband Router User Guide • Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the Broad- band Router supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address. Advanced Internet Functions • Communication Applications. Support for Internet communication applications, such as interactive Games, Telephony, and Conferencing applications, which are often difficult to use when behind a Firewall, is included.
-
Page 6: Package Contents
Introduction Configuration & Management • Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu- ration. • Remote Management. The Broadband Router can be managed from any PC on your LAN. And, if the Internet connection exists, it can also (optionally) be configured via the Internet. -
Page 7: Physical Details - All1294A
Broadband Router User Guide Physical Details - ALL1294A Front-mounted LEDs - ALL1294A Power On - Power on. Off - No power. Status (Red) On - Error condition. Off - Normal operation. Blinking - This LED blinks during start up. For each port, there are 2 LEDs •... - Page 8 Uplink Power button port Connectors Button Input Figure 2: ALL1294A Rear Panel This button has two (2) functions: Reset Button • Reboot. When pressed and released, the Broadband Router will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values.
-
Page 9: Physical Details - All1295
Broadband Router User Guide Physical Details - ALL1295 Front-mounted LEDs - ALL1295 Power On - Power on. Off - No power. Status (Red) On - Error condition. Off - Normal operation. Blinking - This LED blinks during start up. For each port, there are 2 LEDs •... - Page 10 Introduction Standard parallel printer port. If you wish to share a printer, connect Printer Port it here. This button has three (3) functions: Reset Button • Reboot. When pressed and released, the Broadband Router will reboot (restart). • Diagnostic print-out. If held down for 3 seconds, a diagnostic print-out will be sent to the attached printer.
-
Page 11: Chapter 2 Installation
Chapter 2 Installation This Chapter covers the physical installation of the Broadband Router. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. • TCP/IP protocol must be installed on all PCs. • For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem (for WAN port usage) •... - Page 12 Installation • If required, you can connect the "LAN1" port to another Hub: • Depress the "Uplink" button beside the "LAN1" port. • Use a standard LAN cable to connect the "LAN1"port to a standard port on the other hub. 3.
-
Page 13: Chapter 3 Setup
Chapter 3 Setup This Chapter provides Setup details of the Broadband Router. Overview This chapter describes the setup procedure for: • Internet Access • LAN configuration • Assigning a Password to protect the configuration data. PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Con- figuration. -
Page 14: Configuration Program
Setup Configuration Program The Broadband Router contains an HTTP server. This enables you to connect to it, and con- figure it, using your Web Browser. Your Browser must support JavaScript. The configuration program has been tested on the following browsers: •... - Page 15 Broadband Router User Guide If you can't connect If the Broadband Router does not respond, check the following: • The Broadband Router is properly installed, LAN connection is OK, and it is powered ON. You can test the connection by using the "Ping" command: •...
-
Page 16: Setup Wizard
Setup Setup Wizard The first time you connect to the Broadband Router, the Setup Wizard will run automatically. (The Setup Wizard will also run if the Broadband Router's default setting are restored.) 1. Step through the Wizard until finished. • You need to know the type of Internet connection service used by your ISP. - Page 17 Broadband Router User Guide • when required. The IP address IP Address allocated to is usually allocated automati- you, if Static (Fixed). cally, but may be Static (Fixed). Other Modems (e.g. Broadband Wireless) Type Details ISP Data required Dynamic Your IP Address is allocated None.
- Page 18 Setup Home Screen After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Figure 5: Home Screen Navigation & Data Input •...
-
Page 19: Lan Screen
Broadband Router User Guide LAN Screen Use the LAN link on the main menu to reach the LAN screen An example screen is shown below. Figure 6: LAN Screen Data - LAN Screen TCP/IP IP Address IP address for the Broadband Router, as seen from the local LAN. Use the default value unless the address is already in use or your LAN is using a different IP address range. - Page 20 Setup DHCP What DHCP Does A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a DHCP Client (PC or device) upon request. • The client request is made when the client device starts up (boots). • The DHCP Server provides the Gateway and DNS addresses to the client, as well as allocating an IP Address.
-
Page 21: Password Screen
Broadband Router User Guide Password Screen The password screen allows you to assign a password to the Broadband Router. Figure 7: Password Screen Once you have assigned a password to the Broadband Router (on the Password screen above) you will be prompted for the password when you connect, as shown below. (If no password has been set, this dialog will not appear.) Figure 8: Password Dialog •... -
Page 22: Chapter 4 Pc Configuration
Chapter 4 PC Configuration This Chapter details the PC Configuration required on the local ("Internal") LAN. Overview For each PC, the following may need to be configured: • TCP/IP network settings • Internet Access configuration • Printer configuration (For ALL1295) Windows Clients This section describes how to configure Windows clients for: •... - Page 23 Broadband Router User Guide Checking TCP/IP Settings - Windows 9x/ME: 1. Select Control Panel - Network. You should see a screen like the following: Figure 9: Network Configuration 2. Select the TCP/IP protocol for your network card. 3. Click on the Properties button. You should then see a screen like the following. Figure 10: IP Address (Win 95) Ensure your TCP/IP settings are correct, as follows: Using DHCP...
- Page 24 PC Configuration • On the Gateway tab, enter the Broadband Router's IP address in the New Gateway field and click Add, as shown below. Your LAN administrator can advise you of the IP Address they assigned to the Broadband Router. Figure 11: Gateway Tab (Win 95/98) •...
- Page 25 Broadband Router User Guide Checking TCP/IP Settings - Windows NT4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. Figure 13: Windows NT4.0 - TCP/IP 2. Click the Properties button to see a screen like the one below.
- Page 26 PC Configuration Figure 14: Windows NT4.0 - IP Address 3. Select the network card for your LAN. 4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify an IP Address, as explained below. Obtain an IP address from a DHCP Server This is the default Windows setting.
- Page 27 Broadband Router User Guide Figure 15 - Windows NT4.0 - Add Gateway 2. The DNS should be set to the address provided by your ISP, as follows: • Click the DNS tab. • On the DNS screen, shown below, click the Add button (under DNS Service Search Order), and enter the DNS provided by your ISP.
- Page 28 PC Configuration Figure 16: Windows NT4.0 - DNS...
- Page 29 Broadband Router User Guide Checking TCP/IP Settings - Windows 2000: 1. Select Control Panel - Network and Dial-up Connection. 2. Right - click the Local Area Connection icon and select Properties. You should see a screen like the following: Figure 17: Network Configuration (Win 2000) 3.
- Page 30 PC Configuration Figure 18: TCP/IP Properties (Win 2000) 5. Ensure your TCP/IP settings are correct, as described below. Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Broadband Router will act as a DHCP Server.
- Page 31 Broadband Router User Guide Checking TCP/IP Settings - Windows XP 1. Select Control Panel - Network Connection. 2. Right click the Local Area Connection and choose Properties. You should see a screen like the following: Figure 19: Network Configuration (Windows XP) 3.
- Page 32 PC Configuration Figure 20: TCP/IP Properties (Windows XP) 5. Ensure your TCP/IP settings are correct. Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the Broadband Router will act as a DHCP Server.
- Page 33 Broadband Router User Guide Internet Access To configure your PCs to use the Broadband Router for Internet access: • Ensure that the DSL modem, Cable modem, or other permanent connection is functional. • Use the following procedure to configure your Browser to access the Internet via the LAN, rather than by a Dial-up connection.
-
Page 34: Printer Setup For Windows (All1295 Only)
PC Configuration Printer Setup for Windows (ALL1295 only) The ALL1295 Broadband Router provides printing support for 2 methods for printing from Windows: • Print Port Driver. After installing the Print Port Driver, Windows users can print di- rectly to the Broadband Router. Print jobs are spooled (queued) on each PC. The supplied Print Port Driver supports Windows 95/98, Windows ME, Windows NT4.0, Windows 2000 and Windows XP. - Page 35 Broadband Router User Guide Under Windows 95, if you see the following error message, either install Internet Explorer 4 or later, or follow the pro- cedure in the "Trouble Shooting - Printing" section of Appendix A. 6. A pop-up message will inform you if the port has been created successfully, and then the Windows Add Printer wizard will start.
- Page 36 PC Configuration Figure 22: Print Port Configuration Items shown on this screen are as follows: If desired, click Browse to select a different device. (The Select Port Device Port button is provided to allow this software to work with multi-port models.) The Port Name is shown in the Printer's Properties.
- Page 37 Broadband Router User Guide LPD/LPR Printing LPD/LPR printing can be used with Windows NT 4.0 Server or Windows 2000. No software needs to be installed on client PCs. Windows NT 4.0 Server Configuration To use LPD printing, Microsoft TCP/IP Printing must be installed and enabled. This can be checked using Start-Settings-Control Panel-Network - Services.
- Page 38 PC Configuration Windows 2000 Server Configuration The LPD/LPR Port is not enabled by default. To enable it, use this procedure: 1. In Control Panel, select Add/Remove Programs, then Windows Components. 2. Select Other Network File and Print Services, then click the Details button. Figure 23: Adding LPD/LPR Port (Win 2000) 3.
- Page 39 Broadband Router User Guide Figure 24: Windows 2000: Select Port 4. In the Dialog requesting Name or Address of server providing lpd, enter the IP address of the Broadband Router. 5. For Name of printer or print queue on that server, enter L1 6.
-
Page 40: Macintosh Clients
PC Configuration Macintosh Clients From your Macintosh, you can access the Internet via the Broadband Router. The procedure is as follows. 1. Open the TCP/IP Control Panel. 2. Select Ethernet from the Connect via pop-up menu. 3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field can be left blank. -
Page 41: Other Unix Systems
Broadband Router User Guide 3. Use the following data to complete the resulting dialog. Field Data Example Name Enter a name for this printer gw_prn /var/spool/lpd/printer_name /var/spool/lpd/gw_prn Spool Directory Where printer_name is the "Name" entry above. File Limit Enter a suitable number. 0 (no limit) Broadband Router's IP address 192.168.0.1... -
Page 42: Chapter 5 Operation And Status
Chapter 5 Operation and Status This Chapter details the operation of the Broadband Router and the status screens. Operation Once both the Broadband Router and the PCs are configured, operation is automatic. However, there are some situations where additional Internet configuration may be required: •... - Page 43 Broadband Router User Guide Data - Status Screen Internet This indicates the current connection method, as set in the Setup Connection Method Wizard. Broadband Modem This shows the connection status of the modem. Current connection status: Internet Connection • Active •...
- Page 44 Operation and Status Buttons View the details of the current Internet connection. The sub- Connection Details screen displayed will depend on the connection method used. See the following sections for details of each sub-screen. System Data Display all system information in a sub-window. Update the data displayed on screen.
-
Page 45: Connection Status - Pppoe
Broadband Router User Guide Connection Status - PPPoE If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed when the "Connection Details" button is clicked. Figure 26: PPPoE Status Screen Data - PPPoE Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet. - Page 46 Operation and Status Buttons If not connected, establish a connection to your ISP. Connect Disconnect If connected to your ISP, hang up the connection. Delete all data currently in the Log. This will make it easier to Clear Log read new messages. Refresh Update the data on screen.
-
Page 47: Connection Status - Pptp
Broadband Router User Guide Connection Status - PPTP If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example will be displayed when the "Connection Details" button is clicked. Figure 27: PPTP Status Screen Data - PPTP Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet. -
Page 48: Connection Status - Telstra Big Pond
Operation and Status Clear Log Delete all data currently in the Log. This will make it easier to read new messages. Refresh Update the data on screen. Connection Status - Telstra Big Pond An example screen is shown below. Figure 28: Telstra Big Pond Status Screen Data - Big Pond Connection The hardware address of this device, as seen by remote devices. -
Page 49: Connection Details - Singtel Ras
Broadband Router User Guide Connection Log • The Connection Log shows status messages relating to the Connection Log existing connection. • The Clear Log button will restart the Log, while the Refresh button will update the messages shown on screen. Buttons If not connected, establish a connection to Telstra Big Pond. -
Page 50: Connection Details - Fixed/Dynamic Ip Address
Operation and Status Default Gateway The IP Address of the remote Gateway or Router associated with the IP Address above. DNS IP Address The IP Address of the Domain Name Server which is currently used. This will show "Enabled" or "Disabled", depending on whether or DHCP Client not this device is functioning as a DHCP client. - Page 51 Broadband Router User Guide Data - Fixed/Dynamic IP address Internet The hardware address of this device, as seen by remote devices on Physical Address the Internet. (This is different to the hardware address seen by devices on the local LAN.) IP Address The IP Address of this device, as seen by Internet users.
-
Page 52: Chapter 6 Advanced Features
Chapter 6 Advanced Features This Chapter explains when and how to use the Broadband Router's "Ad- vanced" Features. Overview The following advanced features are provided. • Advanced Internet • Communication Applications • Special Applications • • URL filter • Access Control •... -
Page 53: Advanced Internet Screen
Broadband Router User Guide Advanced Internet Screen This screen allows configuration of all advanced features relating to Internet access. • Communication Applications • Special Applications • • URL filter An example screen is shown below. Figure 32: Internet Screen Communication Applications Most applications are supported transparently by the Broadband Router. - Page 54 Advanced Features Special Applications If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the Broadband Router's firewall. In this case, you can define the application as a "Special Application". Special Applications Screen This screen can be reached by clicking the Special Applications button on the Internet screen.
- Page 55 Broadband Router User Guide Data - Special Applications Screen Use this to Enable or Disable this Special Application as required. Checkbox Enter a descriptive name to identify this Special Application. Name • Type - Select the protocol (TCP or UDP) used when you receive data Incoming from the special application or service.
- Page 56 Advanced Features The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter The URL Filter allows you to block access to undesirable Web site •...
-
Page 57: Access Control
Broadband Router User Guide Buttons Use these buttons to delete the selected entry or all entries, as required. Delete/Delete All Multiple entries can be selected by holding down the CTRL key while selecting.(On the Macintosh, hold the SHIFT key while selecting.) Use this to add the current Filter String to the site list. - Page 58 Advanced Features Access Control Screen To view this screen, select the Access Control link on the Advanced menu. Figure 35: Access Control Screen Data - Access Control Screen Group Group Select the desired Group. The screen will update to display the settings for the selected Group.
- Page 59 Broadband Router User Guide Internet Access Select the desired options for the current group: Restrictions • None - Nothing is blocked. Use this to create the least re- strictive group. • Block all Internet access - All traffic via the WAN port is blocked.
- Page 60 Advanced Features Group Members Screen This screen is displayed when the Members button on the Access Control screen is clicked. Figure 36: Group Members Use this screen to add or remove members (PCs) from the current group. • The "Del >>" button will remove the selected PC (in the Members list) from the current group.
- Page 61 Broadband Router User Guide Default Schedule Screen This screen is displayed when the Define Schedule button on the Access Control screen is clicked. • This schedule can be (optionally) applied to any Access Control Group. • Blocking will be performed during the scheduled time (between the "Start" and "Finish" times.) •...
- Page 62 Advanced Features Services Screen This screen is displayed when the Edit Service List button on the Access Control screen is clicked. Figure 38: Access Control - Services Data - Services Screen Available Services Available Services This lists all the available services. Use this to delete any Service you have added.
- Page 63 Broadband Router User Guide Save Add a new entry to the Service list, using the data shown in the "Add New Service" area on screen. Cancel Clear the " Add New Service " area, ready for entering data for a new Service.
-
Page 64: Remote Management
Advanced Features Remote Management This feature allows you to manage the Broadband Router via the Internet. Figure 39: Remote Management Screen Data - Remote Management Screen Remote Management Enable to allow management via the Internet. If Disabled, this device Enable Remote Management will ignore management connection attempts from the Internet. -
Page 65: Virtual Servers
Broadband Router User Guide Virtual Servers This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: • Your Server does not have a valid external IP Address. •... - Page 66 Advanced Features Virtual Servers Screen The Virtual Servers screen is reached by the Virtual Servers link on the Advanced screen. An example screen is shown below. Figure 41: Virtual Servers Screen This screen lists a number of pre-defined Servers, and allows you to define your own Servers. Details of the selected Server are shown in the "Properties"...
- Page 67 Broadband Router User Guide Buttons This will delete any Servers you have defined, and set the pre- Defaults defined Servers to use their default port numbers. Disable All This will cause the "Enable" setting of all Virtual Servers to be set OFF.
-
Page 68: Dynamic Dns (Domain Name Server)
Advanced Features Connecting to the Virtual Servers Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the Internet IP Address (the IP Address allocated to you by your ISP). e.g. http://203.70.212.52 ftp://203.70.212.52 It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic. However, you can use the Dynamic DNS feature, described in the following section, to allow users to connect to your Virtual Servers using a URL, rather than an IP Address. - Page 69 Broadband Router User Guide Dynamic DNS Screen Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following: Figure 42: DDNS Screen Data - Dynamic DNS Screen DDNS Service • DDNS Service You must sign up first to create a new account before using the service.
-
Page 70: Firmware Upgrade
Advanced Features Firmware Upgrade The firmware (software) in the Broadband Router can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade on the Advanced menu. You will see a screen like the following. Figure 43: Upgrade Firmware Screen To perform the Firmware Upgrade: 1. -
Page 71: Chapter 7 Advanced Configuration
Chapter 7 Advanced Configuration This Chapter explains the settings available via the Advanced configuration section of the "Advanced" menu. Overview Normally, it is not necessary to use these screens, or change any settings. These screens and settings are provided to deal with non-standard situations, or to provide additional options for advanced users. -
Page 72: Pc Database
Advanced Configuration PC Database The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). It elimi- nates the need to enter IP addresses. Also, you do not need to use fixed IP addresses on your LAN. - Page 73 Broadband Router User Guide Data - PC Database Screen This lists all current entries. Data displayed is name (IP Address) type. Known PCs The "type" indicates whether the PC is connected to the LAN. Name If adding a new PC to the list, enter its name here. It is best if this matches the PC's "hostname".
- Page 74 Advanced Configuration PC Database (Admin) This screen is displayed if the "Advanced Administration" button on the PC Database is clicked. It provides more control than the standard PC Database screen. Figure 45: PC Database (Admin) Data - PC Database ( Admin) Screen This lists all current entries.
- Page 75 Broadband Router User Guide IP Address Select the appropriate option: • Automatic - The PC is set to be a DHCP client (Windows: "Ob- tain an IP address automatically"). The Broadband Router will allocate an IP address to this PC when requested to do so. The IP address could change, but normally won't.
-
Page 76: Options
Advanced Configuration Options This screen allows advanced users to enter or change a number of settings. For normal opera- tion, there is no need to use this screen or change any settings. An example Options screen is shown below. Figure 46: Options Screen Data - Options Screen Backup DNS Enter the IP Address of the DNS (Domain Name Servers) here. - Page 77 Broadband Router User Guide • If checked, then UPnP users can disable Internet access via this Allow Internet device. access to be • If Disabled, UPnP users can NOT disable Internet access via this disabled device. But currently, this restriction only applies to users running Windows XP, who access the Properties via UPnP.
-
Page 78: Security
Advanced Configuration Security This screen allows you to set Firewall and other security-related options. Figure 47: Security Screen Data - Security Screen Firewall If enabled, DoS (Denial of Service) attacks will be detected and Enable DoS blocked. The default is enabled. It is strongly recommended that this Firewall setting be left enabled. - Page 79 Broadband Router User Guide Options The ICMP protocol is used by the "ping" and "traceroute" programs, Respond to and by network monitoring and diagnostic programs. ICMP • If checked, the Broadband Router will repond to ICMP packets received from the Internet. •...
-
Page 80: Logs
Advanced Configuration Logs The Logs record various types of activity on the Broadband Router. This data is useful for troubleshooting, but enabling all logs will generate a large amount of data and adversely affect performance. Since only a limited amount of log data can be stored in the Broadband Router, log data can also be E-mailed to your PC. - Page 81 Broadband Router User Guide E-mail Logs You can choose to have the logs E-mailed to you, by enabling either or both checkboxes. If enabled, the Log will sent to the specified E-mail address. The interval between E-mails is deter- mined by the "Send" setting. Select the desired option for sending the log by E-mail.
-
Page 82: Printer Port (All1295 Only)
Advanced Configuration Printer Port (ALL1295 only) These settings are only useful if using LPD printing under Unix. Normally, these settings do not need to be changed. Figure 49: Printer Port Screen Data - Printer Port Screen Logical Printers No (L1, L2, L3) Logical printer configuration is only required if using LPD printing under Linux or Unix. -
Page 83: Mac Address
Broadband Router User Guide MAC Address The MAC (hardware) address is a low-level network identifier. It may be called "MAC Ad- dress", "Hardware Address", or "Physical Address". On a PC, this address is associated with the Network card or adapter. The address on the MAC Address screen is the address on the Internet (WAN port) interface, and has no effect on the LAN interface. -
Page 84: Routing
Advanced Configuration Routing Overview • If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page completely. • If the Broadband Router is only acting as a Gateway for the local LAN segment, ignore the "Routing"... - Page 85 Broadband Router User Guide Figure 51: Routing Screen Data - Routing Screen Check this to enable the RIP (Routing Information Protocol) feature Enable RIP of the Broadband Router. The Broadband Router supports RIP 1 only. Static Routing Static Routing This list shows all entries in the Routing Table. Table Entries •...
- Page 86 Advanced Configuration Buttons Save the RIP setting. This has no effect on the Static Routing Table. Save Add a new entry to the Static Routing table, using the data shown in the "Properties" area on screen. The entry selected in the list is ignored, and has no effect.
- Page 87 Broadband Router User Guide Static Routing - Example Router A (192.168.1.80) (192.168.0.100) Segment 1 Segment 0 (192.168.1.xx) (192.168.0.xx) Broadband Router B Router (192.168.1.90) (192.168.2.70) (192.168.0.1) Segment 2 (192.168.2.xx) Figure 52: Routing Example For the Broadband Router's Routing Table For the LAN shown above, with 2 routers and 3 LAN segments, the Broadband Router re- quires 2 entries as follows.
-
Page 88: Appendix A Troubleshooting
Appendix A Troubleshooting This Appendix covers the most likely problems and their solutions. Overview This chapter covers some common problems that may be encountered while using the Broad- band Router and some possible solutions to them. If you follow the suggested steps and the Broadband Router still does not function properly, contact your dealer for further advice. -
Page 89: Printing (For All1295 Only)
Broadband Router User Guide The Broadband Router processes the data passing through it, so it is not Solution 2: transparent. Use the Special Applications feature to allow the use of Internet applications which do not function correctly. If this does solve the problem you can use the DMZ function. This should work with almost every application, but: •... - Page 90 Appendix A - Troubleshooting 4. The printer wizard will display a message stating that “The Network Printer is off-line”. This is OK. Continue the Add Printer Wizard until finished. 5. When finished, go to Control Panel-Printers. The printer icon will be grayed out indicating the printer is not ready.
- Page 91 Broadband Router User Guide 8. Click OK to see the Print Port Configuration screen, as shown below. 9. Click the Browse Device button, select the desired Multi-function Broadband Router, and click OK. 10. Click OK to return to the Printers folders, and right-click on the Printer.
-
Page 92: Appendix B Specifications
Appendix B Specifications ALL1294A Model Broadband Router Dimensions 140mm(W) * 85mm(D) * 27mm(H) Operating Temperature 0° C to 40° C Storage Temperature -10° C to 70° C Network Protocol: TCP/IP Network Interface: 5 Ethernet: 4 * 10/100BaseT (RJ45) LAN connection... -
Page 93: All1295
Broadband Router User Guide ALL1295 Model Broadband Router Dimensions 140mm(W) * 85mm(D) * 27mm(H) Operating Temperature 0° C to 40° C Storage Temperature -10° C to 70° C Network Protocol: TCP/IP Network Interface: 5 Ethernet: 4 * 10/100BaseT (RJ45) LAN connection 1 * 10BaseT (RJ45) for WAN Printer Port 1 * parallel printer port...
