Page 1: Quick Installation Guide

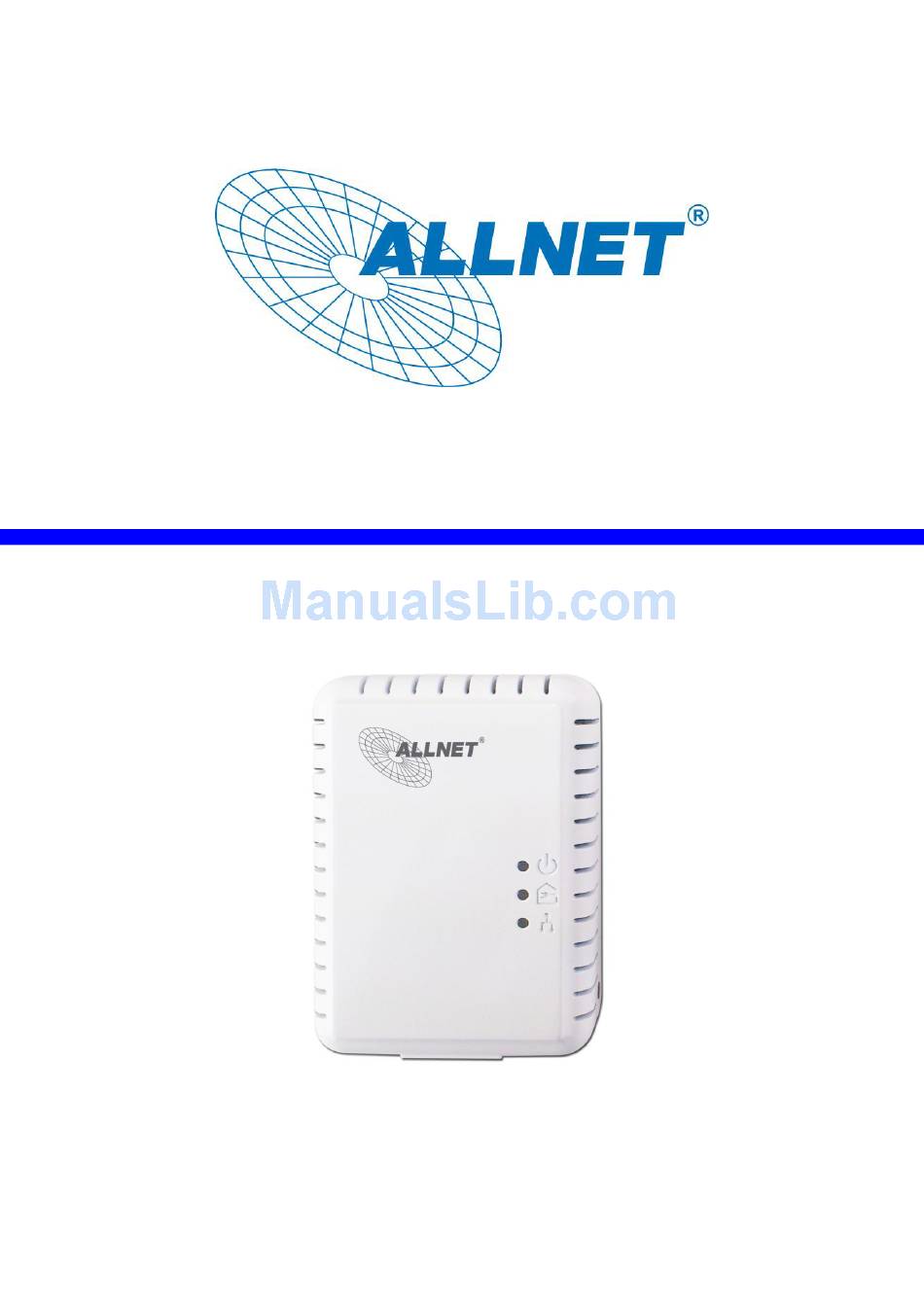

ALL168250 QIG ALL168250 500 Mbps PLC Ethernet Bridge QUICK INSTALLATION GUIDE ALLNET GmbH © 2012 www.allnet.de... - Page 2 Please read this document before installing the product. O THE NSTALLER This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install Product installation guide Specification ALLNET GmbH © 2012 www.allnet.de...
-
Page 3: Important Safety Instructions
If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are followed. If the product exhibits a distinct change in performance. ALLNET GmbH © 2012 www.allnet.de... - Page 4 Pentium® III or better, clock rate faster than 2.0GHz recommended At least one free Ethernet port for ALL168250 500Mbps PLC-Ethernet Bridge 2. Your PC must not be configured for another network. This means that: No network clients except for Microsoft Network*, Client for Netware* Networks, or Microsoft Family Logon* are installed ...
- Page 5 Plug the Bridge into an AC outlet. Plug the provided Ethernet cable into the RJ45 connector of the Bridge and plug the other end of the cable into the Ethernet port on the wireless AP. ALLNET GmbH © 2012 www.allnet.de...
-
Page 6: Specification
Operating : 0~40 ℃ Temperature Environment Storage : -20~60 ℃ Relative Humidity Operating : 10~85% Non-Condensing Storage : 5~90% Non-Condensing 100 ~ 240 VAC 50/60Hz Power Source Power 4W Max (Normal mode) Below 0,5W (Standby mode) Consumption Certification ALLNET GmbH © 2012 www.allnet.de... - Page 7 *1 : The “PWR“ LED indicator will blink in standby mode. It will automatically get into standby mode, if the Ethernet-link is lost for 60 seconds. If you unplug the Ethernet cable, it will get into standby mode after 60 seconds. Under standby mode, PLC and ETH LEDs will both be off. ALLNET GmbH © 2012 www.allnet.de...
- Page 8 Manufacturer: ALLNET GmbH ALLNET Deutschland GmbH Maistrasse 2 82110 Germering Tel. +49 89 894 222 22 Fax +49 89 894 222 33 E-Mail: info@allnet.de ALLNET GmbH © 2012 www.allnet.de...
- Page 9 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL168250 conforms to the Council Directives of 2004/108/EC EMC. This equipment meets the following conformance standards:...
