The Y350R is a rectified Class 2, 24 VAC power
supply module designed specifically for use with
System 350™ Modular Control Systems.
As with all System 350 products, the Y350R is housed
in a compact NEMA 1, high-impact plastic enclosure.
The modular design provides easy, plug-in
connections for quick installation and future
expandability.
Modular Design
Plug-in Connectors and
35 mm DIN Rail Mounting
Accepts Input Voltages of
120 or 240 VAC, 50/60 Hz
© 1998 Johnson Controls, Inc.
Part No. 24-7664-214, Rev. D
Code No. LIT-930090
System 350™ Y350R Power Module
Features and Benefits

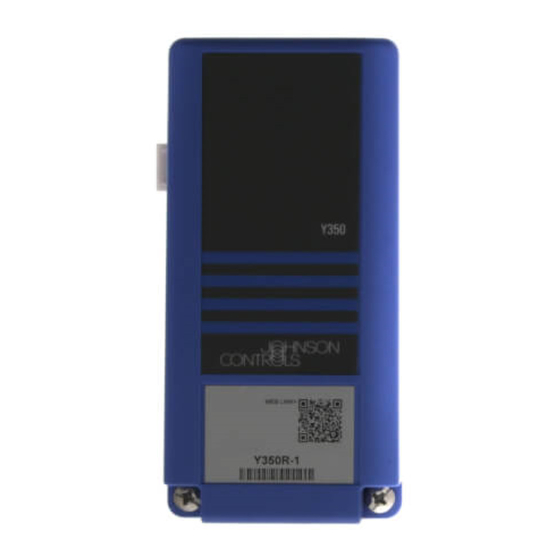

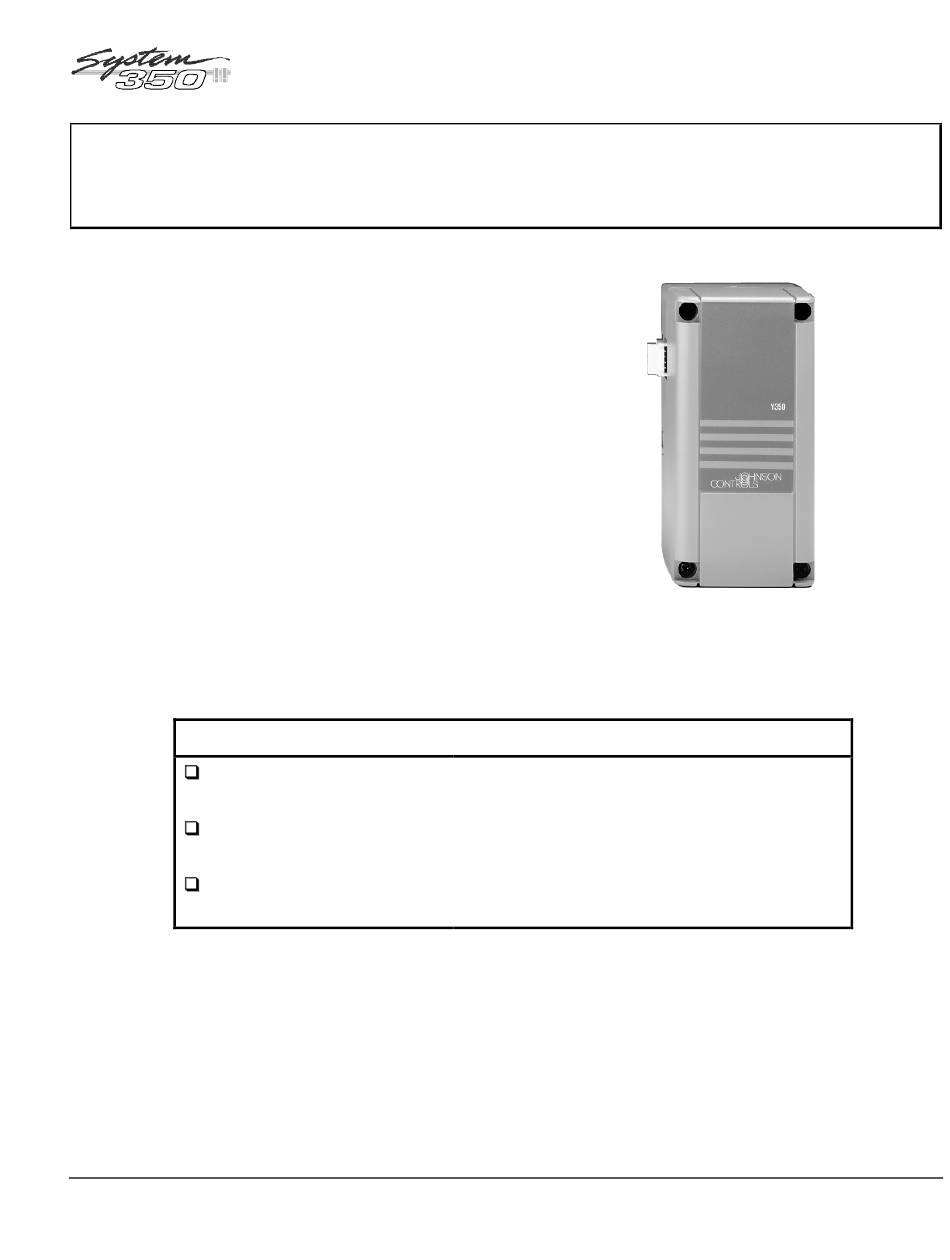

Figure 1: Y350R Power Module
Enables stage, display, and power modules to be
purchased and installed as necessary
Eliminates wiring between modules and reduces
installation costs
Reduces inventory by encompassing the primary
voltage requirements
FANs 930, 930.5, 125
Product/Technical Bulletin Y350R
Issue Date 0598
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls System 350 Y350R
Summary of Contents for Johnson Controls System 350 Y350R
- Page 1 Plug-in Connectors and 35 mm DIN Rail Mounting installation costs Accepts Input Voltages of Reduces inventory by encompassing the primary voltage requirements 120 or 240 VAC, 50/60 Hz © 1998 Johnson Controls, Inc. Part No. 24-7664-214, Rev. D Code No. LIT-930090...
- Page 2 pplication The Y350R Power Module provides the power IMPORTANT: All Series Y350R Power Modules necessary to operate all System 350 controls and are designed for use only in add-on modules. For system capabilities, see Table 1. conjunction with operating controls. Where an operating Table 1: Maximum Number of Add-on control failure would result in Modules when Powered by a Y350R...
- Page 3 Y350R. epairs and Replacement Field repairs or calibration must not be made. Replacement modules are available through the nearest Johnson Controls representative. (See Table 2 40 VA C C O M 12 0 VA C...
- Page 4 The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
