Valcom PagePac Plus V-5323100 Manual page 6

See Figure 10.
CONTROLLER
6. Connect cable from host telephone system to Controller Page Input. See Figure 11.
Note: Depending on the type of host telephone system interface port, the connection may differ slightly
from the illustration to the right. A direct 4-conductor cord from the Controller to the telephone system
can also be used, bypassing the connector block.

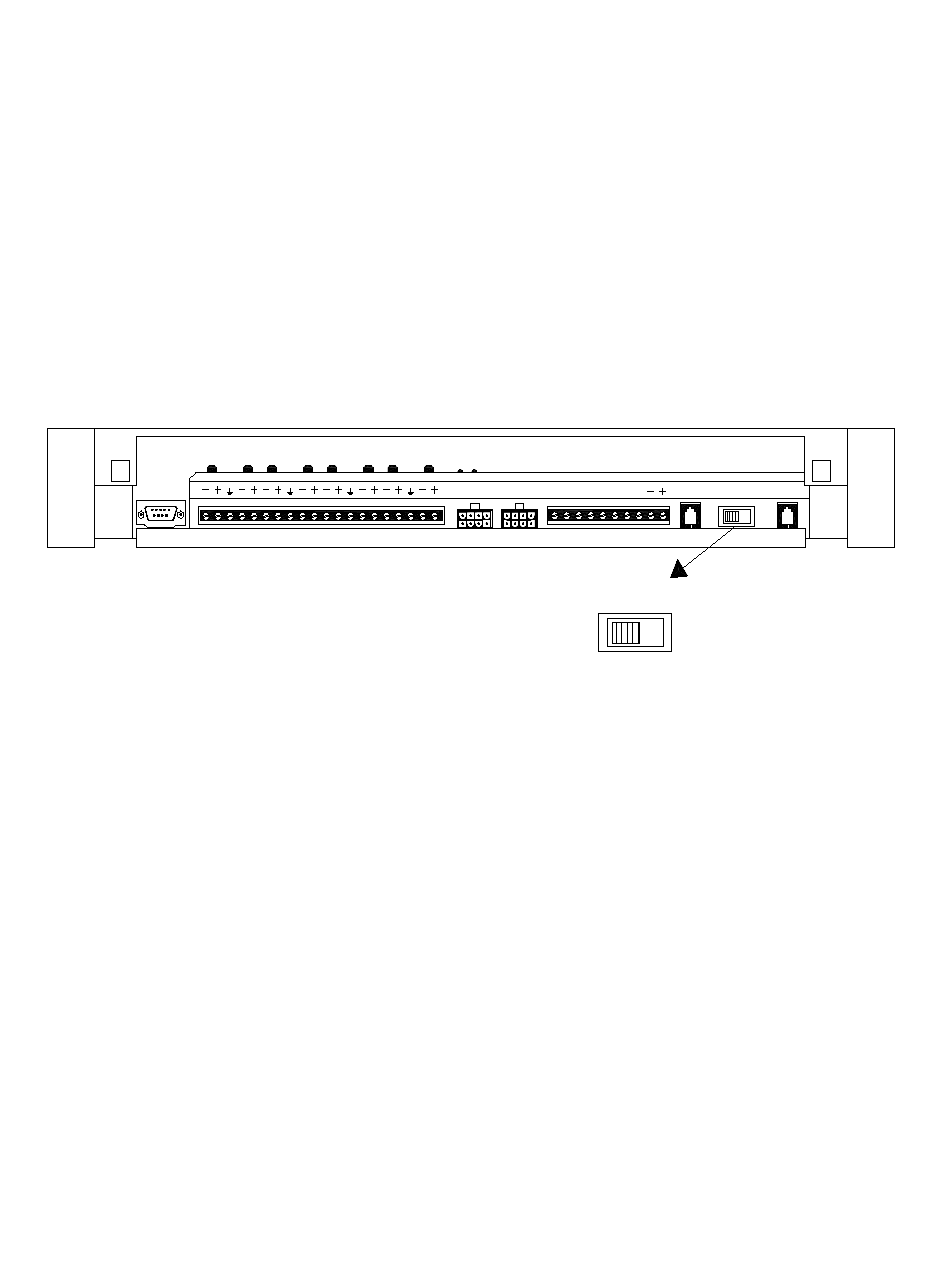

Figure 10. Setting Controller Telephone Mode Switch
6
TO POWER
TO Z.E.U. 0dBm 0dBu N.B. AA
AMP
DL SA/
600 CO
TO AMP TELE MODE TO TEL
SELECT SYSTEM
D.L. S.A. G.L. L.S.
DL=Dry Loop 600 ohms
GS LS
SA/CO=Station Access/CO
GS=Ground Start Trunk Port
LS=Loop Start Trunk Port
