PagePac

PAGEPAC PLUS CONTROLLER (V-5323100) AND

CONTROLLER WITH POWER SUPPLY (V-5323105)

INTRODUCTION

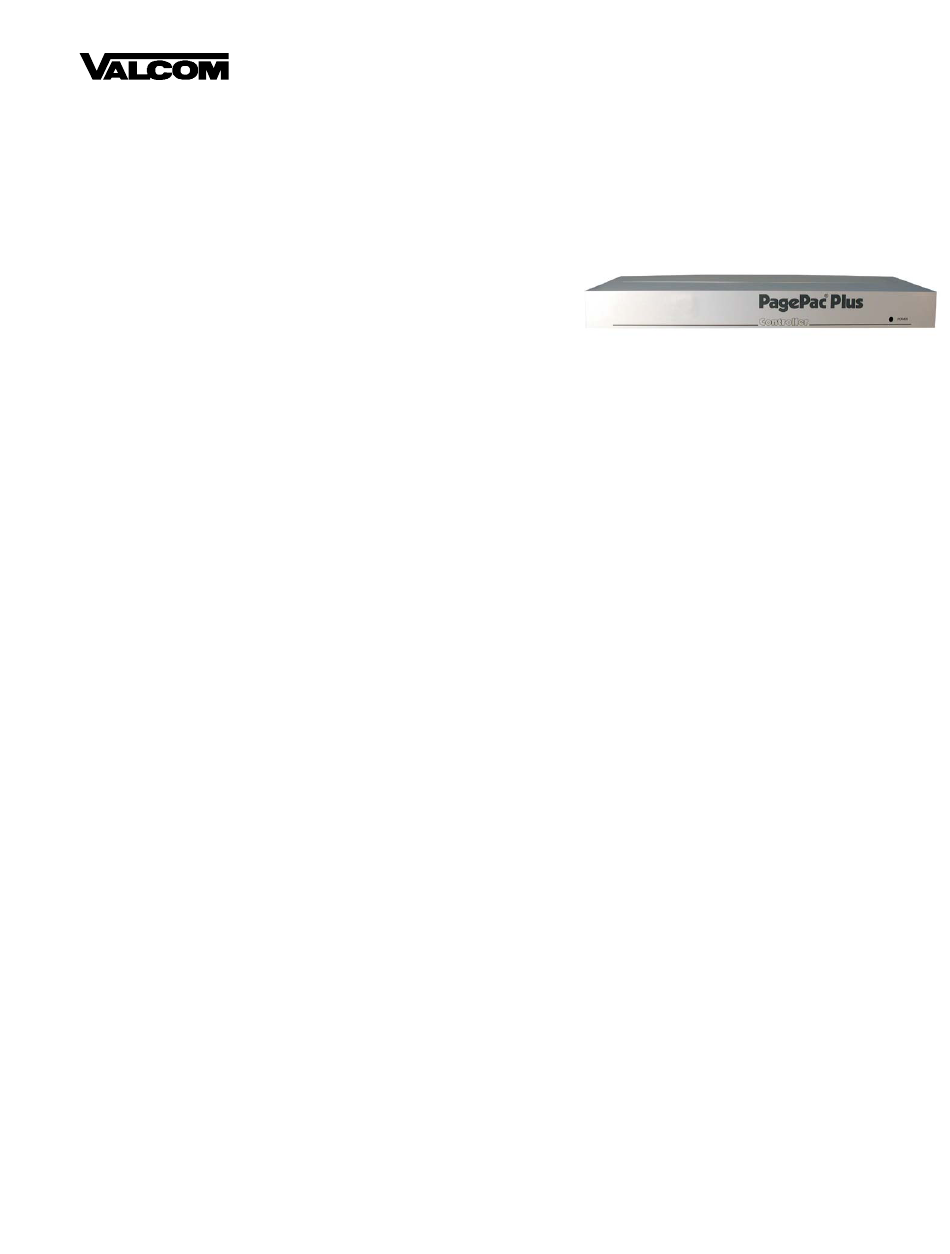

The PagePac® Plus System consists of the Controller,

AmpliCenter, and up to 3 Zone Expansion Units, providing up

to 56 paging and/or control zones. The self powered

Controller comes with its own power supply, enabling

it to control paging and control zones utilizing a paging amplifier

other than the AmpliCenter.

Dimensions/Weight

•

16.00"W x 1.80"H x 6.90"D

(40.64cm x 4.57cm x 17.53cm)

2.00 lbs. (0.91 kg)

SPECIFICATIONS

FEATURES

• 8 Zones Paging or Control

• Contact Closure Inputs or Outputs

• Loop Start, Ground Start C O Port, Analog Station

or Dry Loop Access (page port with contact closure)

• Controller with Power Supply for Applications with

Distributed Amplified Speakers or Amplifiers other than PagePac

INSTALLATION

1. Mount the PagePac® Plus Controller and Zone Expansion Units, if any, to either a wall

(see Figure 1), cabinet or a rack (below the AmpliCenter or other amplifier) (see Figure 2).

Note: When installing the PagePac Plus Controller, leave at least four inches of space above and below

for proper ventilation.

Install the paging equipment in a ventilated room where there is easy access to speaker cabling (prefer-

ably in the telephone equipment room).

• Night Bell

• 7 Alert Tones

• Page Zone Groups

• Flexible Numbering Plan

ISSUE 2

947180
