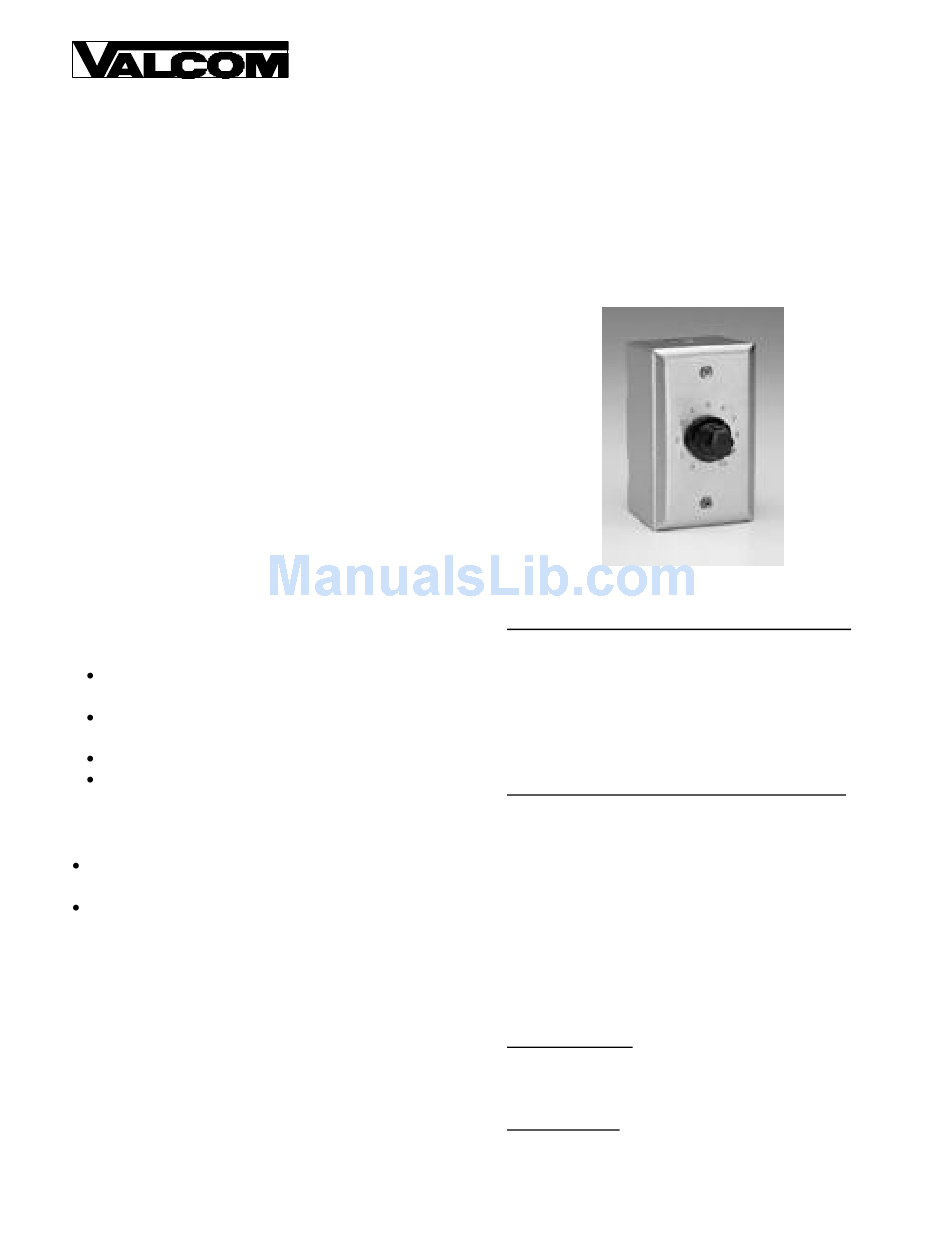

WALL MOUNT VOLUME CONTROL
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate and maintain
the V-1092, Wall Mount Volume Control.
SPECIFICATIONS
Purpose

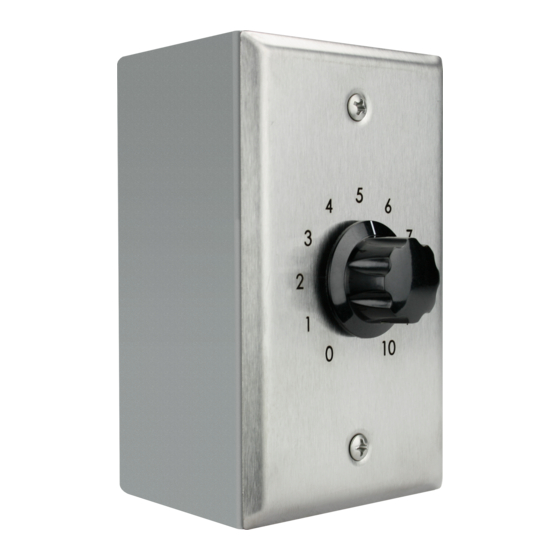

The V-1092, Wall Mount Volume Control, is a volume
control unit which can be mounted into a single-gang
electrical box. The V-1092 comes with its own surface
mount box which provides 1/2" conduit access. This
unit is compatible with all Valcom one-way and
two-way speakers.
NOTE: The V-1092 is not designed to connect
directly to the output of high powered amplifiers.
Applications
To control volume of one-way amplified
speaker assemblies in inaccessible areas
To control large groups of one-way amplified
speaker assemblies
To control volume of Valcom talkback speakers
Volume control for Valcom V-1039A, Explosion
Proof Horn
Dimensions/Weight
4.50"H x 2.75"W x 2.80"D
(11.43cm H x 6.99cm W x 7.11cm D)
Weight: .8 lbs. (.36 kg)
INSTALLATION
These instructions cover only the installation
procedures for the Valcom V-1092. Consult the
installation instructions of other equipment for
information relative to each piece of equipment.
Audio Connections
"D" type station wire or other suitable pairs may be
used for audio connections.
V-1092
Connections when using a One-Way Control Unit
(Refer to Figure 1)
a.
Connect wall mount volume control input tip
and ring to desired zone output leads from
page control.
b.
Connect wall mount volume control output
tip and ring to speakers.
Connections when using a Talkback Control Unit
(Refer to Figure 2)
a.
Connect wall mount volume control tip input
terminal to tip output lead of talkback page
control unit.
b.
Connect wall mount volume control tip
output terminal to tip lead of talkback
speaker.
c.
Connect ring output of talkback page control
to ring of talkback speaker.
Mounting
Surface Mounting - Mount the V-1092 on any suitable
surface. Two screws are used to fasten the box to the
surface.
Flush Mounting - Remove faceplate assembly and
install in standard single-gang electrical box.
1
VSP-V-1092
Issue 9
947092
