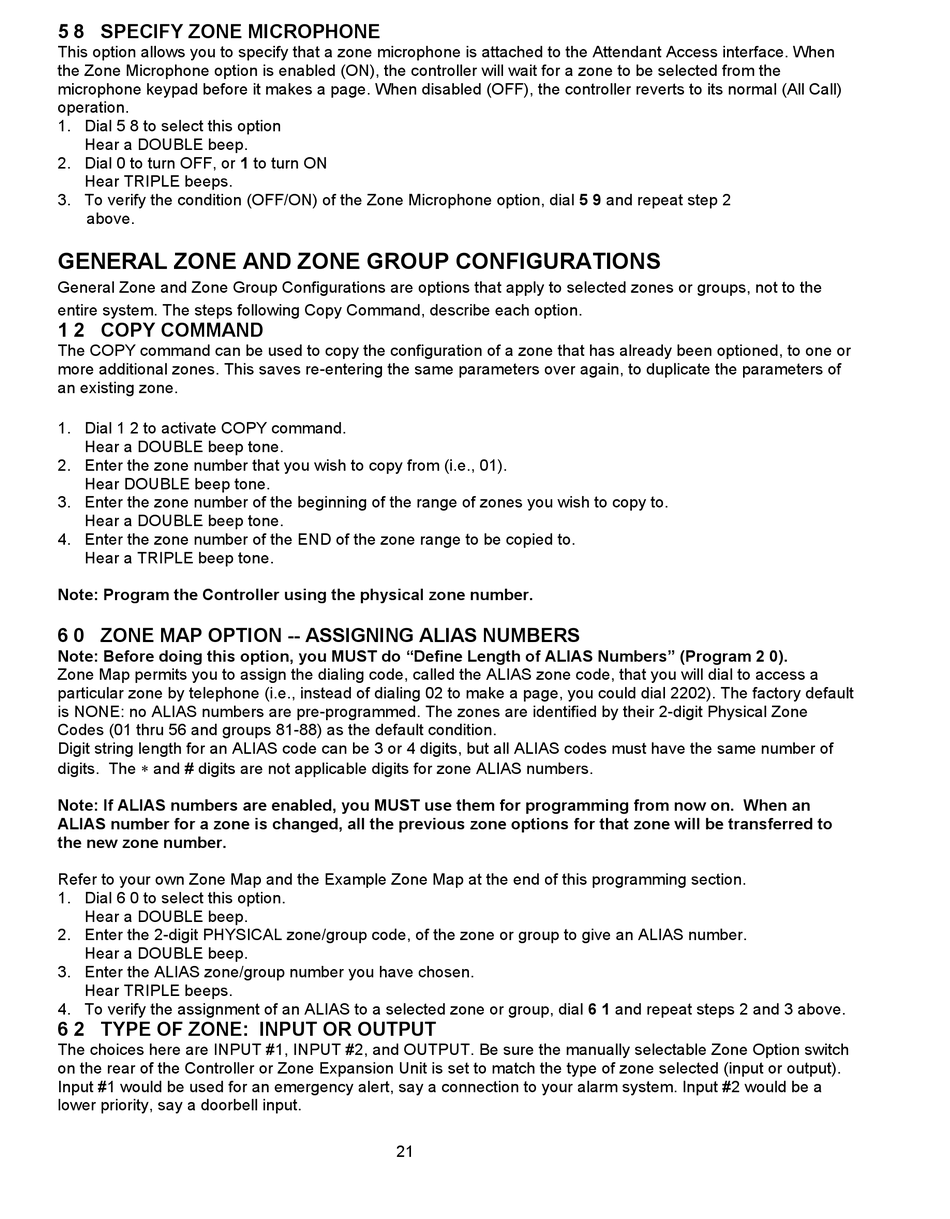

5 8 SPECIFY ZONE MICROPHONE
This option allows you to specify that a zone microphone is attached to the Attendant Access interface. When
the Zone Microphone option is enabled (ON), the controller will wait for a zone to be selected from the
microphone keypad before it makes a page. When disabled (OFF), the controller reverts to its normal (All Call)
operation.
1. Dial 5 8 to select this option
Hear a DOUBLE beep.
2. Dial 0 to turn OFF, or 1 to turn ON
Hear TRIPLE beeps.
3. To verify the condition (OFF/ON) of the Zone Microphone option, dial 5 9 and repeat step 2
above.
GENERAL ZONE AND ZONE GROUP CONFIGURATIONS
General Zone and Zone Group Configurations are options that apply to selected zones or groups, not to the
entire system. The steps following Copy Command, describe each option.
1 2 COPY COMMAND
The COPY command can be used to copy the configuration of a zone that has already been optioned, to one or
more additional zones. This saves re-entering the same parameters over again, to duplicate the parameters of
an existing zone.
1. Dial 1 2 to activate COPY command.
Hear a DOUBLE beep tone.
2. Enter the zone number that you wish to copy from (i.e., 01).
Hear DOUBLE beep tone.
3. Enter the zone number of the beginning of the range of zones you wish to copy to.
Hear a DOUBLE beep tone.
4. Enter the zone number of the END of the zone range to be copied to.
Hear a TRIPLE beep tone.
Note: Program the Controller using the physical zone number.
6 0 ZONE MAP OPTION -- ASSIGNING ALIAS NUMBERS
Note: Before doing this option, you MUST do "Define Length of ALIAS Numbers" (Program 2 0).
Zone Map permits you to assign the dialing code, called the ALIAS zone code, that you will dial to access a
particular zone by telephone (i.e., instead of dialing 02 to make a page, you could dial 2202). The factory default
is NONE: no ALIAS numbers are pre-programmed. The zones are identified by their 2-digit Physical Zone
Codes (01 thru 56 and groups 81-88) as the default condition.
Digit string length for an ALIAS code can be 3 or 4 digits, but all ALIAS codes must have the same number of
digits. The ∗ and # digits are not applicable digits for zone ALIAS numbers.
Note: If ALIAS numbers are enabled, you MUST use them for programming from now on. When an
ALIAS number for a zone is changed, all the previous zone options for that zone will be transferred to
the new zone number.
Refer to your own Zone Map and the Example Zone Map at the end of this programming section.
1. Dial 6 0 to select this option.
Hear a DOUBLE beep.
2. Enter the 2-digit PHYSICAL zone/group code, of the zone or group to give an ALIAS number.
Hear a DOUBLE beep.
3. Enter the ALIAS zone/group number you have chosen.
Hear TRIPLE beeps.
4. To verify the assignment of an ALIAS to a selected zone or group, dial 6 1 and repeat steps 2 and 3 above.
6 2 TYPE OF ZONE: INPUT OR OUTPUT
The choices here are INPUT #1, INPUT #2, and OUTPUT. Be sure the manually selectable Zone Option switch
on the rear of the Controller or Zone Expansion Unit is set to match the type of zone selected (input or output).
Input #1 would be used for an emergency alert, say a connection to your alarm system. Input #2 would be a
lower priority, say a doorbell input.
21
