Service; Removing Cabinet - Invacare Perfecto2 IRC5PO2AW Service Manual

6 Service

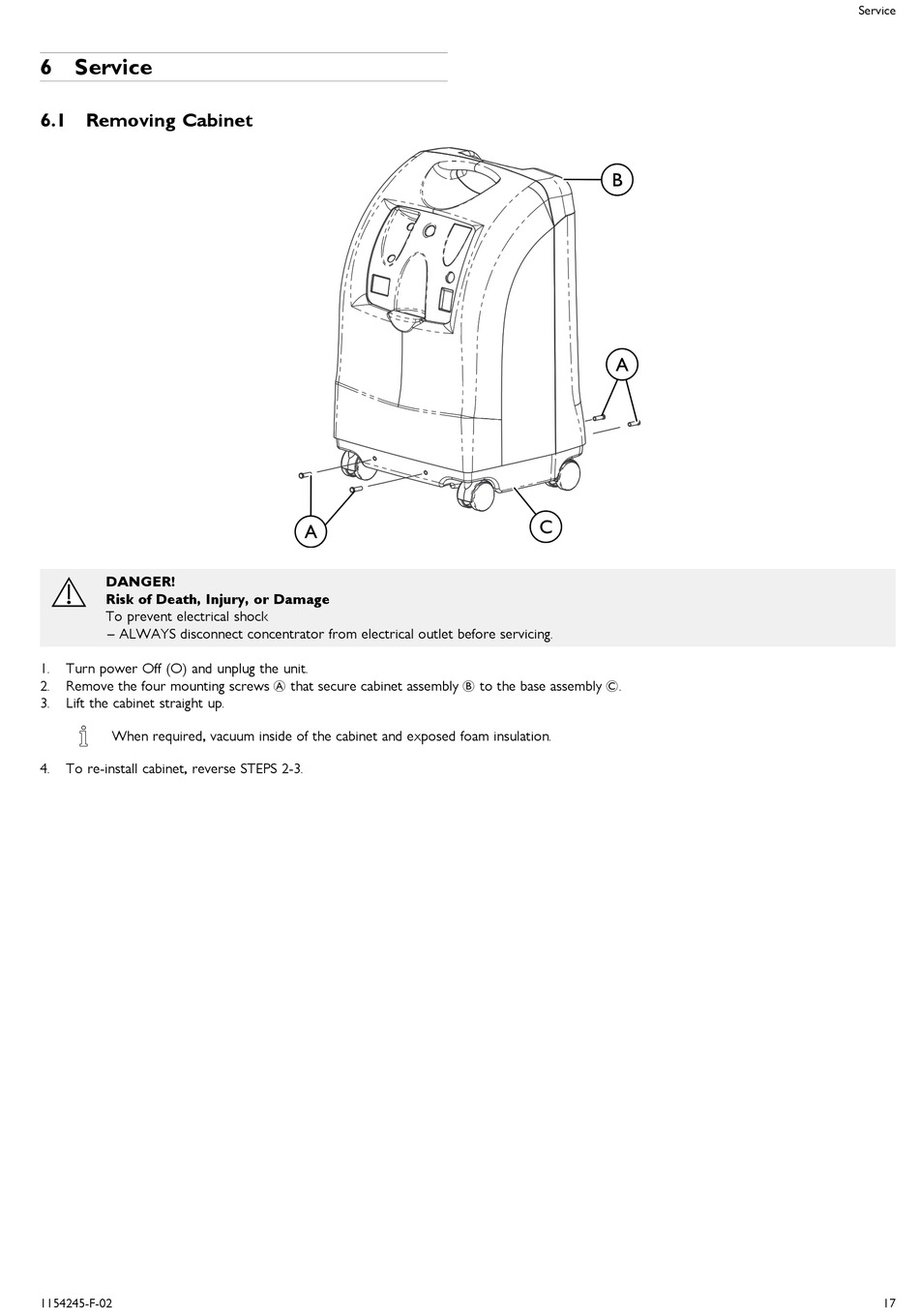

6.1 Removing Cabinet

DANGER!
Risk of Death, Injury, or Damage
To prevent electrical shock
– ALWAYS disconnect concentrator from electrical outlet before servicing.
1. Turn power Off (O) and unplug the unit.
Remove the four mounting screws A that secure cabinet assembly B to the base assembly C.
2.
3. Lift the cabinet straight up.
When required, vacuum inside of the cabinet and exposed foam insulation.
4. To re-install cabinet, reverse STEPS 2-3.
