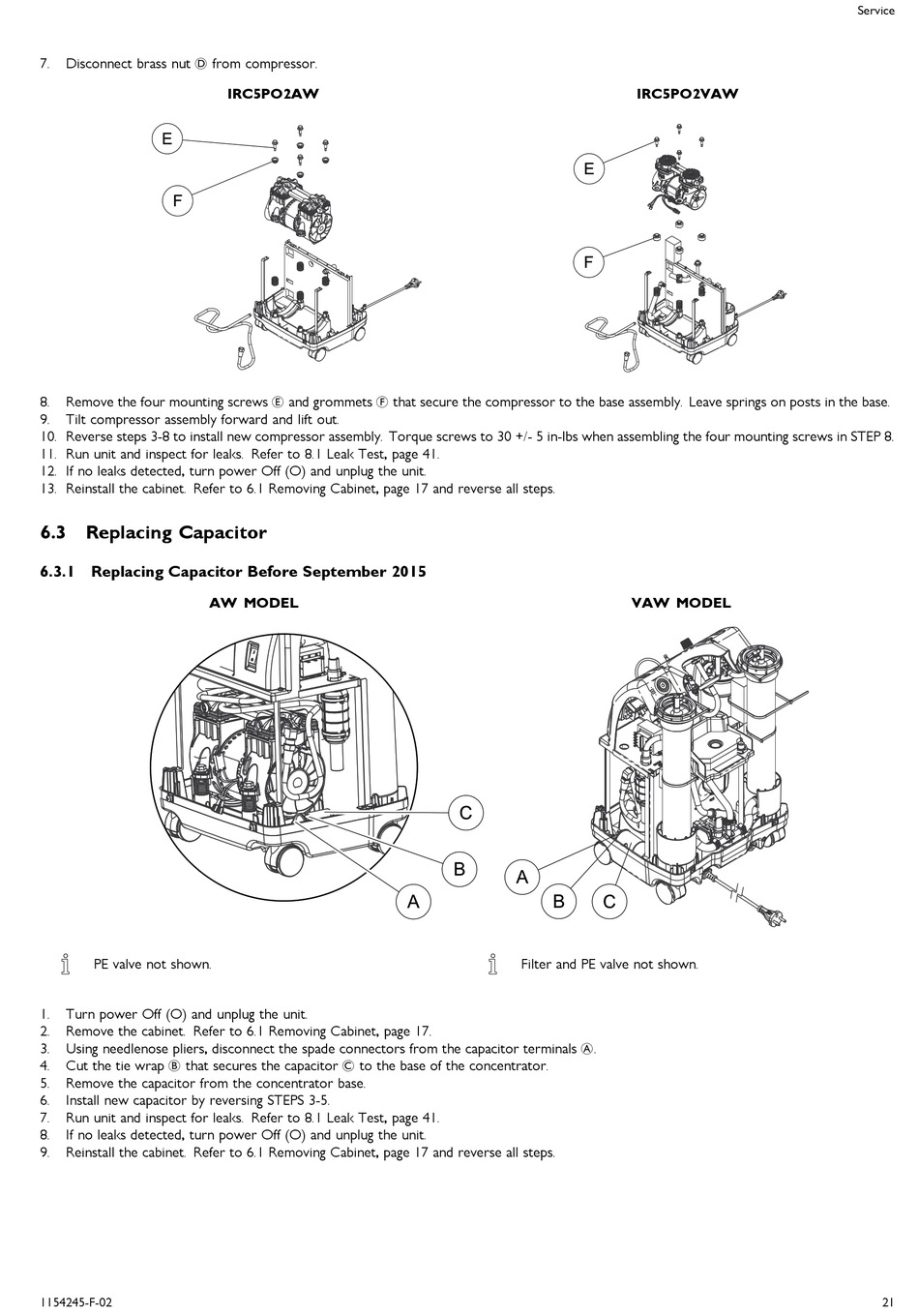

Replacing Capacitor; Replacing Capacitor Before September 2015 - Invacare Perfecto2 IRC5PO2AW Service Manual

Disconnect brass nut D from compressor.
7.
Remove the four mounting screws E and grommets F that secure the compressor to the base assembly. Leave springs on posts in the base.
8.
9. Tilt compressor assembly forward and lift out.
10. Reverse steps 3-8 to install new compressor assembly. Torque screws to 30 +/- 5 in-lbs when assembling the four mounting screws in STEP 8.
11. Run unit and inspect for leaks. Refer to 8.1 Leak Test, page 41.
12. If no leaks detected, turn power Off (O) and unplug the unit.
13. Reinstall the cabinet. Refer to 6.1 Removing Cabinet, page 17 and reverse all steps.

6.3 Replacing Capacitor

6.3.1 Replacing Capacitor Before September 2015

AW MODEL
PE valve not shown.
1. Turn power Off (O) and unplug the unit.
2. Remove the cabinet. Refer to 6.1 Removing Cabinet, page 17.
Using needlenose pliers, disconnect the spade connectors from the capacitor terminals A.
3.
Cut the tie wrap B that secures the capacitor C to the base of the concentrator.
4.
5. Remove the capacitor from the concentrator base.
6. Install new capacitor by reversing STEPS 3-5.
7. Run unit and inspect for leaks. Refer to 8.1 Leak Test, page 41.
8. If no leaks detected, turn power Off (O) and unplug the unit.
9. Reinstall the cabinet. Refer to 6.1 Removing Cabinet, page 17 and reverse all steps.
1154245-F-02
IRC5PO2AW IRC5PO2VAW
VAW MODEL
Filter and PE valve not shown.
Service
21
