Invacare® Perfecto₂™ Oxygen Concentrator
If the oxygen level is not above 85% ± 2% after the first five minutes, the system will continue to monitor the O
30 minutes from start-up to reach 85% ± 2% before activating an alarm. Environmental factors such as low voltage, high altitude, or age
of the machine will affect the time required to reach 85% ± 2%.
If the oxygen level is not above 85% ± 2% within the first 30 minutes, the oxygen concentration alarm sequence will activate and the unit
will shut down.
When oxygen concentration is above 85% ± 2%, the sensor measures oxygen purity every 10 minutes. If a reading falls below 85% ± 2%, a
YELLOW light will illuminate. If the oxygen purity falls below 73% ± 3% the RED light/Alarm/Shut-Down mode will activate.

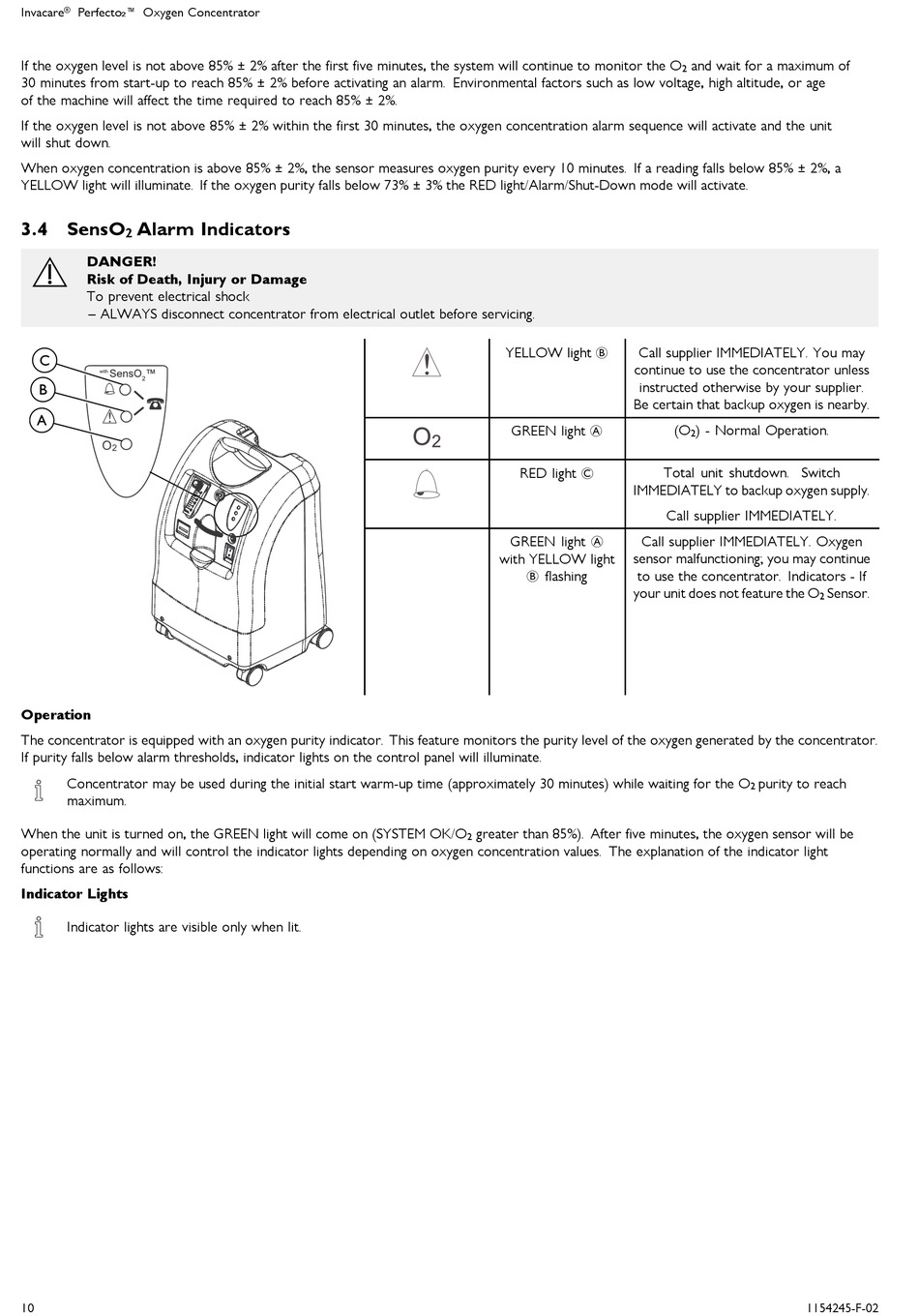

3.4 SensO Alarm Indicators
2
DANGER!
Risk of Death, Injury or Damage
To prevent electrical shock
– ALWAYS disconnect concentrator from electrical outlet before servicing.
Operation
The concentrator is equipped with an oxygen purity indicator. This feature monitors the purity level of the oxygen generated by the concentrator.
If purity falls below alarm thresholds, indicator lights on the control panel will illuminate.
Concentrator may be used during the initial start warm-up time (approximately 30 minutes) while waiting for the O
maximum.
When the unit is turned on, the GREEN light will come on (SYSTEM OK/O
operating normally and will control the indicator lights depending on oxygen concentration values. The explanation of the indicator light
functions are as follows:
Indicator Lights
Indicator lights are visible only when lit.
10
YELLOW light B
Call supplier IMMEDIATELY. You may
continue to use the concentrator unless
instructed otherwise by your supplier.
Be certain that backup oxygen is nearby.
GREEN light A
RED light C
IMMEDIATELY to backup oxygen supply.
GREEN light A
with YELLOW light sensor malfunctioning; you may continue
B flashing
to use the concentrator. Indicators - If
your unit does not feature the O
greater than 85%). After five minutes, the oxygen sensor will be
2
and wait for a maximum of
2
(O ) - Normal Operation.
2
Total unit shutdown. Switch
Call supplier IMMEDIATELY.
Call supplier IMMEDIATELY. Oxygen
purity to reach
2
1154245-F-02
Sensor.
2
