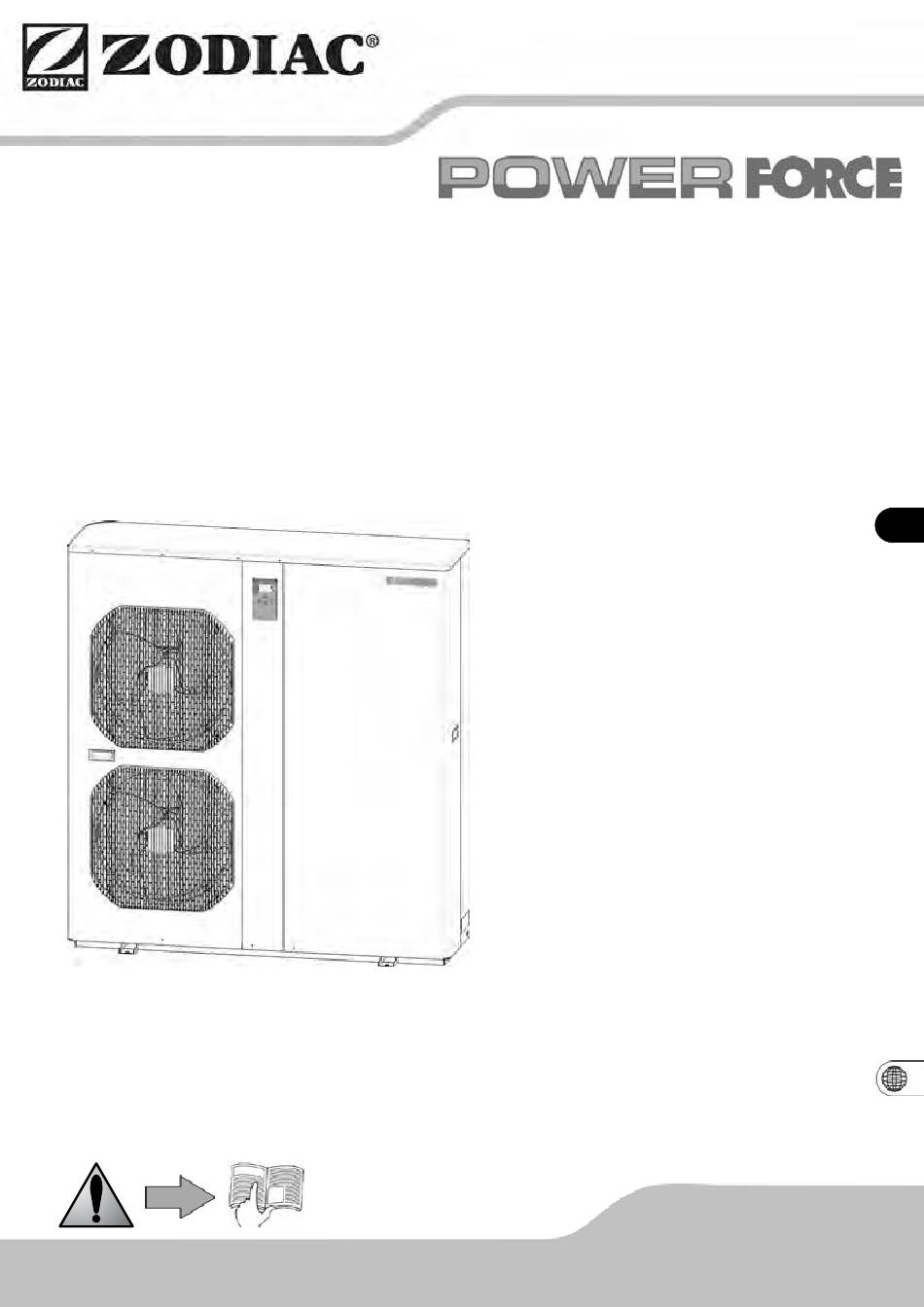

- Page 1 Instructions for installation and use English More documents on: www.zodiac-poolcare.com H0361900.E - 2015/02...
- Page 2 • Read this notice carefully before installing, maintaining or repairing this appliance! • The symbol indicates important information that you must take into account to avoid the risk of damage to persons or the appliance. • The symbol indicates useful information as an indication. Warning •...
-
Page 3: Table Of Contents
Contents 1. Information before installing ........................3 1.1 General delivery terms and conditions ...................... 3 1.2 Content ................................3 1.3 Technical specifications ..........................3 2. Installation ............................... 3 2.1 Selecting an installation site ........................3 2.2 Installing the appliance ..........................3 2.3 Hydraulic connections .......................... -
Page 4: Information Before Installing
1. Information before installing 1.1 General delivery terms and conditions All equipment, even postage and packing paid, travels at the risks and perils of the recipient. The latter must make written reserves on the transporter’s delivery documents if damage during transport is discovered (confirmed by registered letter to the transporter within 48 hours). -
Page 5: Hydraulic Connections
2.3 Hydraulic connections V1-2-3 : by-pass valves V4 : water intake valve V5 : water output valve * minimum distance Test pressure Service pressure Load loss Mean water flowrate m³/h Follow the hydraulic connection direction (see § «Dimensions» in the appendix). Disposing of condensation: Warning: your device can produce several litres of water per day. -
Page 6: Use
2.4.4 Connecting options Use cables with a cross-section: of 2 x 0.75 mm² or larger, of type RO2V or equivalent in countries outside of the European Community, with an outer diameter of between 8 and 13 mm. Remove the lid (just above the cable gland) and fit the supplied cable glands to run the cables into the device. The cables used for the optional features and the power supply must be held together using a collar inside the device, just after the cable gland. -
Page 7: Starting Up The Appliance
Symbol Designation steady flashing Water flow Water flow-rate ok Water flow too weak, high or absent Ambient air temperature Adequate Inadequate Operation indicator During heating or air conditioning On standby until operating command received Defrost indicator Defrost in progress On/off button button to set and confirm parameters value setting buttons 3.1.1 Reading and changing parameters... -
Page 8: Checks To Perform After Start-Up
• Switch on the filter system. • Progressively close valve 1 in order to increase the filter pressure to 150 g (0.150 bar). • Open valves 2, 3 and 4 completely, then half open valve 5 (see §2.3) (the air accumulated in the heat pump condenser and in the filter circuit is then bled). -
Page 9: Available Accessories
• Clean the outside of the unit with a solvent-free product. A specifi c PAC NET cleaning kit is available as an opti onal extra (see §4.3). • Check that the water condensati on fl ows out properly during the operati on of the device. •... -
Page 10: Appliance Malfunctions
Display Designation Cause Solution Reset Water flow-rate Sensor out-of-order or Replace or reconnect the Switch the power sensor defect disconnected (connector sensor supply off or (ST4) J8 white on plate A1) automatic reset if the defect disappears Defrost sensor Sensor out-of-order or Replace or reconnect the Switch the power defect (ST3) -
Page 11: Faq
• Note: your device can produce several litres of water per day. 6. Registering the product Register your product on our website: be the first to be informed of new Zodiac® products and special offers, help us to constantly improve our product quality. Europe & Rest of the World www.zodiac-poolcare.com... - Page 12 Electric diagram H0361900.E - EN - 2015-02...
- Page 13 U-V-W-N Power supply (400V/3N/50 Hz) Earth Pump control (max. 8A contact) Electrical heating control (max. 2A contact) Alarm control (max. 2A contact) Remote control 4-way valve coil Electronic board for regulation Electronic board for display Electronic board for ventilation Electronic pressure reducing valve board Low-pressure switch High-pressure switch Electronic board protection fuse...
- Page 14 Dimensions and description Power Force Weight (Kg) 25-35 Grid Condenser Display Compressor Pool water inlet Ø63 4-way valve Pool water outlet Ø63 Dehydrator Evaporator Liquid bottle Stuffing box HP switch Supply terminal board LP switch Electronic board Flow controller Fuse F1 H0361900.E - EN - 2015-02...
- Page 15 Notes...
- Page 16 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
