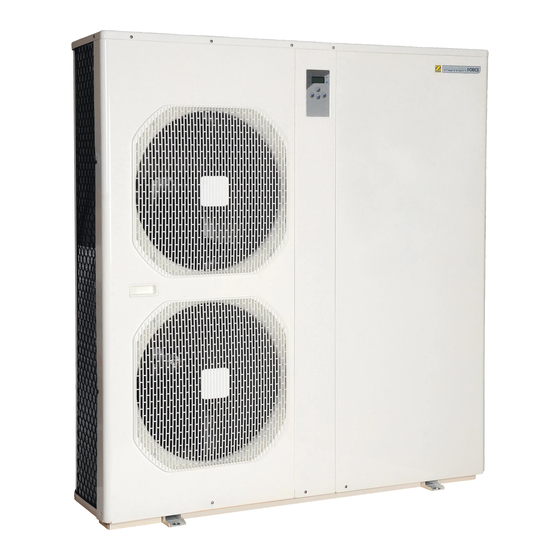

Summary of Contents for Zodiac Power Force 25
- Page 1 Power Force Instructions for installation and use - English Heat pump Translation of the original instructions in french More documents on: www.zodiac.com H0361900_REVH - 2020/12...
- Page 2 • The distribution or modification of this document in any way is prohibited, without prior authorisation from Zodiac®. • Zodiac® is constantly developing its products to improve their quality. The information contained herein may therefore be modified without notice. GENERAL WARNINGS •...
- Page 3 WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES • The power supply to the appliance must be protected by a dedicated 30 mA Residual Current Device (RCD), complying with the standards and regulations in force in the country in which it is installed. •...
- Page 4 the high and low pressure switches must be checked to ensure that they are securely fastened to the cooling circuit and that they cut off the electrical circuit when tripped. • During maintenance work, ensure there are no traces of corrosion or oil around the cooling components.
-
Page 5: Table Of Contents
CONTENTS ❶ Installation 1.1 I Selecting the location 1.2 I Hydraulic connections 1.3 I Electricity supply connections 1.4 I Option connections ❷ Use 2.1 I Operating principle 2.2 User interface presentation 2.3 I Operating 2.4 I Additional user functions 2.5 I Presentation of the menu ❸... -
Page 6: ❶ Installation
❶ Installation 1.1 I Selecting the location • The device must be installed at a minimum distance from the pool's surrounding edge. This distance is determined by the electrical standards which apply in the installation country. • Do not lift the device by the body; use its base. •... -
Page 7: I Hydraulic Connections
1.2 I Hydraulic connections • The device will be connected with a Ø63 PVC pipe, using the half union connectors supplied, to the pool's filtration circuit, after the filter and before the water treatment. • Respect the direction of hydraulic connection. •... -
Page 8: I Electricity Supply Connections
1.3 I Electricity supply connections • Incorrectly tightened terminals may cause the terminal unit to heat up and invalidate the warranty. • Before any work inside the device, you must cut the electricity supply as there is a risk of electric shock which may cause material damage, serious injury or even death. - Page 9 1.4.2 "Heating priority" option • This function helps to keep the water temperature constant by checking the water temperature at regular time intervals (minimum 5 minute cycle every 60 minutes) by filtration pump control. The filtration is kept operating if the pool temperature is below the temperature requested.
-
Page 10: ❷ Use
❷ Use 2.1 I Operating principle Your heat pump uses the calories (heat) in the air to heat up your pool's water. The process to heat your pool's water to the temperature you want may take a few days as it depends on the weather conditions, your heat pump's power and the difference between the water temperature and the temperature you want. -
Page 11: I Operating
2.3 I Operating • Check that there are no tools or other foreign objects in the machine. • The panel that provides access to the technical section must be put in place. • Set the valves as follows: valve B wide open, valves A, C, D and E closed : water entry valve : by-pass valve : water exit valve... -
Page 12: I Presentation Of The Menu
2.5 I Presentation of the menu To access the menu, press To browse the menus and modify the values, press To validate a selection, press To exit the menu, press Select the language for the interface (2 languages available: French and English) Optional Select the device's operating mode:... -
Page 13: ❸ Maintenance
❸ Maintenance 3.1 I Wintering • Wintering is vital to prevent the condenser breaking due to freezing. This is not covered by the warranty. • To avoid damaging the equipment with condensation, do not fully cover it. • Set the regulator to "standby" mode by pressing and holding for 3 seconds and disconnect the power supply, •... -
Page 14: ❹ Troubleshooting
❹ Troubleshooting • Before you contact your reseller, please carry out these few simple checks using the following tables if a problem occurs. • If the problem continues contact your reseller. • : Actions reserved for a qualified technician 4.1 I Device behaviour •... -
Page 15: I Error Code Display
4.2 I Error code display Display Possible causes Solutions Resetting Wait until the exterior temperature ST4 sensor temperature too low Automatic rises Exchanger protection in cool mode Automatic if ST3 sensor temperature over Clean the evaporator, if problem ST3 sensor 60°C or evaporator scaled up persists, call an approved technician temperature below... -
Page 16: I Additional Menus
Display of Possible causes Solutions Resetting By electricity supply Sensor is faulty or offline (J7-A1 disconnection or Reconnect or change the sensor ST5 sensor error connector) automatic if the compressor discharge fault disappears sensor Check the J8, J9, J7 and J4- Bad connection between the A1 By electricity J5 connectors on the link cable... -
Page 17: I Wiring Diagram
4.4 I Wiring diagram U-V-W-N Power supply (380-415V/3N/50Hz) Phase order controller Earth Compressor casing resistance Pump command (8A contact maximum) R1-R2 Anti-freeze resistance (condenser) Electric heater command (2A contact Water regulation sensor maximum) Alarm command (2A contact maximum) Anti-freeze sensor Remote "on/off"... -
Page 18: ❺ Characteristics
❺ Characteristics 5.1 I Description *In a bag in the technical compartment Power Force Ø63 connector (x2) Anti-vibration studs (x4) Wintering cap (x2) Heating priority Remote control Condensate pan PAC NET (cleaning product) : supplied : available as accessories 5.2 I Technical specifications Power Force -12 to 38 °C Operating temperature range... -
Page 19: I Dimensions And Marking
5.3 I Dimensions and marking Front : Base : Front panel : Cover : Technical access door : Rear panel : Column : Grid : User interface : Pool water intake : Pool water output : Evaporator : Gland Side Overall dimensions Rear... - Page 20 For more information, product registration and customer support: www.zodiac.com ©2020 Zodiac Pool Systems LLC. All rights reserved. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks are the property of their respec- tive owners.
