Summary of Contents for Barco MDSC-2326 MNAH

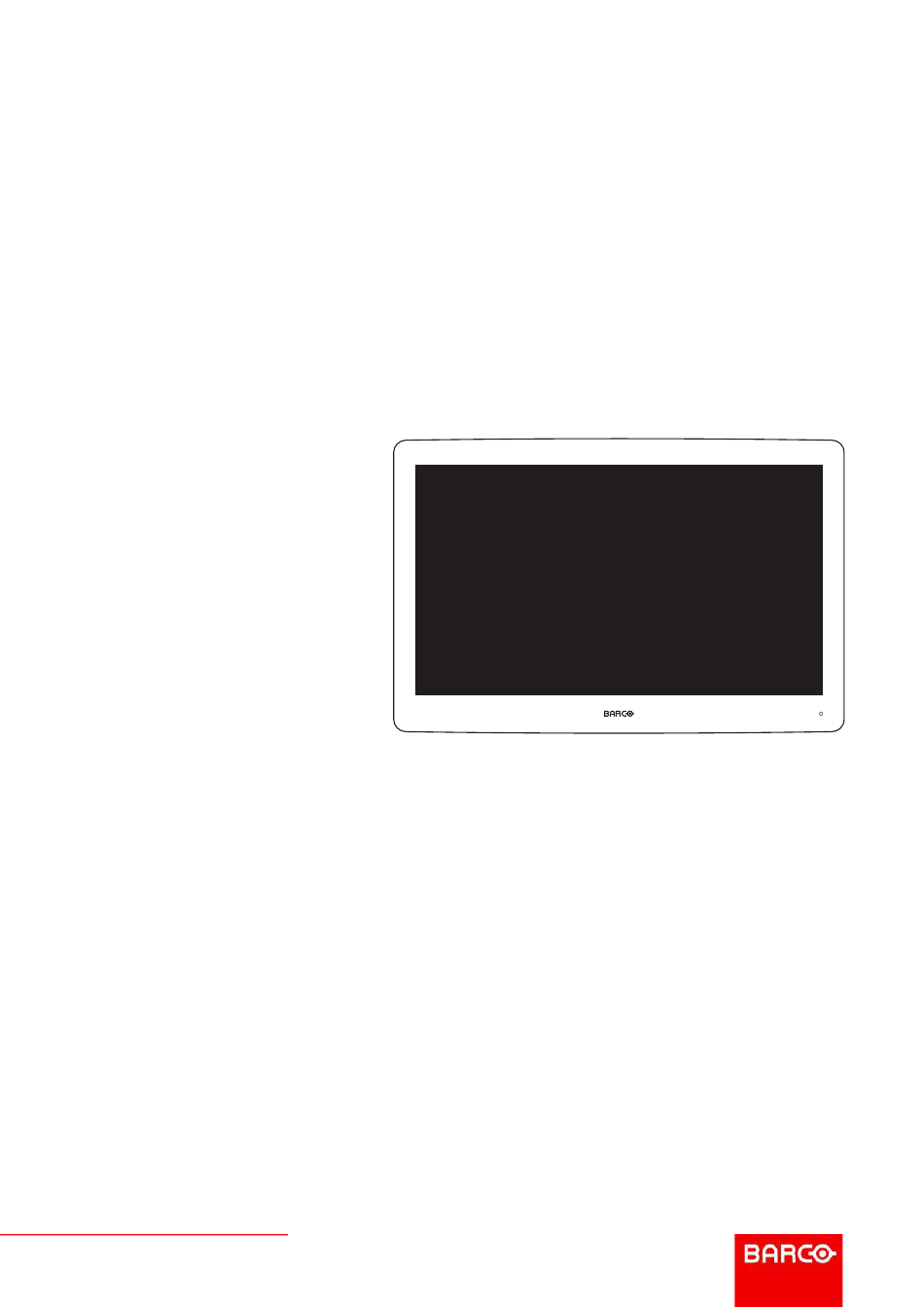

- Page 1 MDSC-2326 26” Full HD surgical display User Guide MDSC-2326 MNAH MDSC-2326 MNA MDSC-2326 DDIH MDSC-2326 DDI MDSC-2326 LEDH MDSC-2326 LED ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
Table of contents 1 Welcome!.......................................... 7 About the product....................................8 What’s in the box....................................8 About this user guide ..................................9 2 Product overview ....................................11 Front view......................................12 Rear view......................................13 Connector view ....................................13 2.3.1 MDSC-2326 DDI(H) version ..........................13 2.3.2 MDSC-2326 LED(H) version ..........................14 2.3.3 MDSC-2326 MNA(H) version..........................14 Connector pin assignments ..............................15... - Page 4 Cable routing .....................................28 4 Daily operation ......................................31 Keyboard activation/deactivation............................32 Keyboard backlight ..................................32 On/Off switching ....................................32 Power led status ....................................33 OSD menu activation..................................33 OSD menu navigation ..................................33 Shortkey functions..................................34 4.7.1 Main source selection...............................35 4.7.2 Multi-image configuration ............................35 4.7.3 Zoom factor selection ...............................35 4.7.4 Brightness adjustment..............................36 Extended keyboard functions..............................36...
- Page 5 5.4.5 OSD setting ..................................51 5.4.5.1 OSD Horizontal Position ......................51 5.4.5.2 OSD Vertical Position ........................51 5.4.5.3 OSD Time-out ............................51 5.4.6 Recall Profile..................................52 5.4.7 Save Profile ..................................52 System menu ....................................52 5.5.1 Power on DVI 1 ................................52 5.5.2 Power on DVI 2 ................................53 5.5.3 DVI Output ..................................53 5.5.4...
- Page 6 K5902135 (451920612565) /04 MDSC-2326...
-
Page 7: Welcome
Welcome! K5902135 (451920612565) /04 MDSC-2326... -
Page 8: About The Product
1.1 About the product Overview Barco’s MDSC-2326 is a 26-inch surgical display that offers high brightness for improved visualization under all ambient conditions. Purpose-built for the operating room, the MDSC-2326 features an easy-clean design, smart mechanics and the most accurate FHD images in the operating room today. -
Page 9: About This User Guide
Welcome! The user guides are also available on www.barco.com/support Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. 1.3 About this user guide Overview This manual provides support to the user during the installation, set up and utilization of the MDSC-2326 display. - Page 10 Welcome! K5902135 (451920612565) /04 MDSC-2326...
-
Page 11: Product Overview
Product overview K5902135 (451920612565) /04 MDSC-2326... -
Page 12: Front View
Product overview 2.1 Front view Overview Image 2-1 Input Selection key Multi-image selection key / Down key Image zoom key / Up key OSD Menu key / Enter key Brightness decrease / Left key Brightness increase / Right key Stand-by key A 7-key capacitive keypad is located on the front of the display. -
Page 13: Rear View
Product overview 2.2 Rear view Overview Image 2-2 VESA mount screw holes Cable routing channel Cable routing channel expansion clip Connector compartment cover Connector compartment cover fixation screw 2.3 Connector view 2.3.1 MDSC-2326 DDI(H) version Overview 13 17 16 18 Image 2-3 DVI-2 RS232... -
Page 14: Mdsc-2326 Led(H) Version
Product overview B/Pb S-Video out S-Video Service Potential Equalization pin (POAG: DIN42801) 2.3.2 MDSC-2326 LED(H) version Overview 10 14 13 15 Image 2-4 RS232 Input power connector DVI out DVI-1 (digital & analog – HDMI video support with HDCP) SDI-1 out SDI-1 DisplayPort (VESA std 1.1a) Sync... -
Page 15: Connector Pin Assignments
S-Video out S-Video Service Potential Equalization pin (POAG: DIN42801) (*) Nexxis OR functionality: for more detailed information on Barco's Nexxis integrated OR solution please refer to the dedicated user guides. Please visit my.barco.com to obtain these user guides. (**) SDI is not always present in combination with Nexxis input 2.4 Connector pin assignments... -
Page 16: Dvi-1 Connector (Dvi-I)
Product overview 2.4.2 DVI-1 connector (DVI-I) Overview Image 2-7 D2_Rx- (T.M.D.S.) D2_Rx+ (T.M.D.S.) GND (data 2 shield) Not connected Not connected SCL (for DDC) SDA (for DDC) Analog vertical sync D1_Rx- (T.M.D.S.) D1_Rx+ (T.M.D.S.) GND (data 1 shield) Not connected Not connected +5V input (DDC supply) (*) GND (cable sense) -
Page 17: Dvi Out Connector (Dvi-D)
Product overview SCL (for DDC) SDA (for DDC) Not connected D1_Rx- (T.M.D.S.) D1_Rx+ (T.M.D.S.) GND (data 1 shield) Not connected Not connected +5V input (DDC supply) (*) GND (cable sense) Hot plug detect (*) D0_Rx- (T.M.D.S.) D0_Rx+ (T.M.D.S.) GND (data 0 shield) Not connected Not connected GND (clock shield) -
Page 18: Rs232 Connector
Product overview 2.4.5 RS232 connector Overview Image 2-10 Not connected Rx (driven by host) Tx (driven by display) Not connected Ground Not connected Not connected Not connected Not connected 2.4.6 USB type A connector Overview Image 2-11 +5 VDC Data - Data + 2.4.7 Mini USB connector Overview... -
Page 19: S-Video And S-Video-Out Connector
Product overview ML_Lane 2 (p) ML_Lane 1 (n) ML_Lane 1 (p) ML_Lane 0 (n) ML_Lane 0 (p) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return DP_PWR (+3.3 VDC @ 500 mA max) 2.4.9 S-Video and S-Video-out connector Overview Image 2-14 Ground (Y) - Page 20 Product overview K5902135 (451920612565) /04 MDSC-2326...
-
Page 21: Display Installation
Display installation K5902135 (451920612565) /04 MDSC-2326... -
Page 22: Vesa Mount Installation
Display installation 3.1 VESA mount installation Overview The display supports mounting arm & stands according to the VESA 100 mm standard. CAUTION: Use an arm that is approved by VESA. CAUTION: Use an arm that can support a weight of least 10 kg (22,05 lbs). The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). -
Page 23: Cover Removal
Display installation 3.2 Cover removal To remove the connector compartment cover Loosen the screw fixing the connector compartment cover. Slide the cover downwards to remove it from the display. Image 3-3 3.3 Video input connection About video input connections The MDSC-2326 can have multiple different video inputs connected (depending on the display version). Switching between the different inputs can be easily done by pressing the direct access key for this. -
Page 24: Mdsc-2326 Led(H) Version
Display installation Image 3-4 (*) PC analog (VGA) input source can be connected to the DVI-I input connector using a DVI-I to VGA adapter. The use of an adapter cable of at least 0.15 m long will allow an easy placement inside the cable cover. -
Page 25: Video Output Connection
Display installation DVI or VGA (*): 5 DisplayPort: 6 SDI (**): 1 R/G/B/S: 6/7/8/2 R/G/B (SOG): 7/8/9 Y/Pb/Pr: 8/9/7 CVBS: 3 S-Video: 10 (*) PC analog (VGA) input source can be connected to the DVI-I input connector using a DVI-I to VGA adapter. -
Page 26: Mdsc-2326 Led(H) Version
Display installation Image 3-7 3.4.2 MDSC-2326 LED(H) version To connect the video outputs Connect one or more of the available video sink(s) to the corresponding video outputs using the appropriate video cable(s). SDI: 1 CVBS: 2 S-Video: 3 DVI: 4 ( (to be configured in OSD menu, see “System menu”, page 52) Image 3-8 3.4.3 MDSC-2326 MNA(H) version To connect the video outputs... -
Page 27: Nexxis Or
(*) SDI is not always present in combination with Nexxis input 3.5 Nexxis OR Overview Connecting your MDSC-2326 to Barco's Nexxis OR system allows you to distribute video, graphics, audio and computer data over the IP network, in raw uncompressed format, inside the operating room and even between surgical suites. -
Page 28: Cable Routing
Display installation Image 3-11 CAUTION: The display must be earthed. Potential equalization When potential equalization between the display and other devices is required then connect the potential equalization pin (POAG: DIN42801) to the potential equalization terminal of the equipment. Image 3-12 3.7 Cable routing To route the cables For displays mounted to a VESA arm with internal cable routing provisions, route all cables through the... - Page 29 Display installation Image 3-14 WARNING: When the display is assembled in the medical system, take care of the fixation of all cables, to avoid unwanted detachment. K5902135 (451920612565) /04 MDSC-2326...
- Page 30 Display installation K5902135 (451920612565) /04 MDSC-2326...
-
Page 31: Daily Operation
Daily operation K5902135 (451920612565) /04 MDSC-2326... -
Page 32: Keyboard Activation/Deactivation
Daily operation 4.1 Keyboard activation/deactivation To activate the keyboard: In order to avoid unwanted or accidental activation of the OSD keyboard, a lock/unlock mechanism has been implemented. This means that, before the OSD keyboard can be used to change any of the setting of the display, it needs to be unlocked. -
Page 33: Power Led Status
Daily operation While your display is off, press and hold the stand-by key for approximately 3 seconds (or until the keyboard backlight stops blinking). To minimize the power consumption, also the external power supply has to be switched off. To switch off your display: While your display is switched on, unlock the keyboard see “Keyboard activation/deactivation”, page 32. -
Page 34: Shortkey Functions
Daily operation Picture Profile Factory Brightness Contrast Saturation Color temperature 6500K Gamma Native Sharpness DVI 1280x800@60Hz Image 4-1 Menu Sub-menu Status bar Legend (shows the functionality associated to each keyboard key) Selector/Slider Item To navigate through the OSD menu Image 4-2 •... -
Page 35: Main Source Selection
Daily operation Unlike the extended keyboard functions (described in next chapter), the shortkey functionality is immediately available without the need to first enable this in the OSD menu. When the extended keyboard functionality is enabled, all the shortkey functions described below (except for the brightness adjustment), will no longer be available and will be replaced by the corresponding extended keyboard functions described in the next chapter. -
Page 36: Brightness Adjustment
Daily operation 4.7.4 Brightness adjustment To quickly adjust the brightness While no OSD Menu is on the screen, press the Brightness decrease ( ) or Brightness increase ( ) keys to adjust the brightness as desired. Brightness Image 4-4 When the extended keyboard functionality is enabled, this shortkey functions will remain available. 4.8 Extended keyboard functions About extended keyboard functions The concept of the extended keyboard is to present a large selection of functions immediately available to the... -
Page 37: Main Source Selection
Daily operation Zoom factor selection 4.8.1 Main source selection To quickly select the main source While no OSD Menu is on the screen, press the Input selection key ( ) to bring up the main source quick selection menu. Toggle the available main source options by pressing the key corresponding to the desired option. If two options are available for one key, the first key press will select the upper option, a second press selects the lower option. -
Page 38: Common Functions: Transfer Function Selection
Daily operation Multi image config. Native Aspect Fill Small Large None Image 4-8 4.8.4 Common Functions: Transfer function selection To quickly select the transfer function While no OSD Menu is on the screen, press the Image zoom key ( ) to bring up the common functions quick selection menu. -
Page 39: Common Functions: Zoom Factor Selection
Daily operation 4.8.6 Common Functions: Zoom factor selection To quickly select the zoom factor While no OSD Menu is on the screen, press the Image zoom key ( ) to bring up the common functions quick selection menu. Toggle the available zoom factors by repeatedly pressing the key until the desired zoom factor is shown. - Page 40 Daily operation K5902135 (451920612565) /04 MDSC-2326...
-
Page 41: Advanced Operation
Advanced operation K5902135 (451920612565) /04 MDSC-2326... -
Page 42: Osd Picture Menu
Advanced operation 5.1 OSD picture menu 5.1.1 Profile About profiles To select a profile means to load a set of predefined video parameters like Brightness, Contrast, Saturation, Input selection (Primary & Secondary), Multi-image layout selection, etc. The user can modify the default video parameters associated to each profile and save the new parameters setting under the User 1, User 2 or User 3 profile. -
Page 43: Saturation
Advanced operation 5.1.4 Saturation To adjust the saturation level Bring up the OSD main menu. Navigate to the Picture menu. Enter the Saturation submenu. The command bar Saturation is highlighted. Set the saturation level as desired and confirm. 5.1.5 Color temperature About color temperature presets The available color temperature presets for your display are: •... -
Page 44: Picture Advanced Menu
Advanced operation To select a gamma preset Bring up the OSD main menu. Navigate to the Picture menu. Enter the Gamma submenu. Select one of the available gamma presets and confirm. 5.1.7 Sharpness To adjust the sharpness level Bring up the OSD main menu. Navigate to the Picture menu. -
Page 45: Image Position
Advanced operation • Surgical 1 (low latency, optimized for fast moving images) About latency The video latency is defined as the delay between the monitor input video level transition time to the corresponding light output transition on the screen top-left corner. The maximum latency in Surgical mode is less than 1 Video Frame period for all the monitor electrical inputs while in Diagnostic mode the latency is between 1 to 2 Video Frame periods excluding S-Video, CVBS analog and SFP optical (MNA(H) versions) inputs which have an additional delay of maximum 1 Video Frame period. -
Page 46: Display Format Menu
Advanced operation To manually adjust the phase Bring up the OSD main menu. Navigate to the Picture advanced menu. Enter the Phase submenu. The command bar Phase is highlighted. Set the phase as desired and confirm. 5.2.7 Clock/Line This menu item is only available when VGA input is connected. About clock/line If the result of the Auto Adjustment procedure described above isn’t satisfactory, the Clock/Line can be manually adjusted by following this procedure. -
Page 47: Component Mode
Advanced operation If you selected the Auto Search preset, the display will automatically detect the connected signal. 5.3.2 Component Mode About component modes The available component modes for your display are: • YPbPr • To select the component mode Bring up the OSD main menu. Navigate to the Display Format menu. -
Page 48: 2Nd Picture Mode
Advanced operation Navigate to the Display Format menu. Enter the Image Size submenu. Select one of the available image sizes and confirm. 5.3.5 2nd Picture Mode About 2 picture modes The available 2 picture modes for your display are: • •... -
Page 49: 2Nd Picture Position
Advanced operation To select the 2 picture source Bring up the OSD main menu. Navigate to the Display Format menu. Enter the 2 Picture Source submenu. Select one of the available 2 picture sources and confirm. 5.3.7 2nd Picture Position About 2 picture positions The available 2... -
Page 50: Language
Advanced operation 5.4.2 Language About languages The available languages for your display OSD menu are: • English • Français • Deutsch • Español • Italiano To select the language Bring up the OSD main menu. Navigate to the Configuration menu. Enter the Language submenu. -
Page 51: Osd Setting
Advanced operation • Multi-image configuration • Color temperature selection • Image size selection • Zoom factor selection To enable/disable the extended keyboard Bring up the OSD main menu. Navigate to the Configuration menu. Enter the Extended keyboard submenu. Enable/Disable the extended keyboard as desired and confirm. 5.4.5 OSD setting 5.4.5.1 OSD Horizontal Position To adjust the OSD horizontal position... -
Page 52: Recall Profile
Advanced operation 5.4.6 Recall Profile About recalling profiles To recall a profile means to restore the default factory settings (Factory and X Ray profiles) or recall the user defined profiles. The available profiles to recall from your display are: • Factory •... -
Page 53: Power On Dvi 2
Advanced operation 5.5.2 Power on DVI 2 About power on DVI 2 This setting allows you to select the pin of DVI port 2 connector on which the +5V DC supply is applied. The available options are: • Disabled • +5V on Pin 14 •... -
Page 54: Keyboard Lock
Advanced operation DVI Output option Main picture 2nd picture “DVI 1” “DVI 2” “None” DVI 2 SDI 1 SDI 2 Other SDI 2 DVI 1 DVI 2 SDI 1 SDI 2 Other Other DVI 1 DVI 2 SDI 1 SDI 2 Other MDSC-2326 MNA(H) version DVI Output option... -
Page 55: Keyboard Backlight
Advanced operation 5.5.5 Keyboard backlight About the keyboard backlight By default, after lighting up, the keyboard backlight will dim again if no further actions are taken within the following 5 seconds. However, this behavior can be changed so that the keyboard backlight is always on. To adjust the keyboard backlight Bring up the OSD main menu. - Page 56 Advanced operation K5902135 (451920612565) /04 MDSC-2326...
-
Page 57: Important Information
Important information K5902135 (451920612565) /04 MDSC-2326... -
Page 58: Safety Information
Important information 6.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. - Page 59 Important information Mission critical applications We strongly recommend there is a replacement monitor immediately available in mission critical applications. Use of Electrical Surgical Knives Provide as much distance as possible between the electrosurgical generator and other electronic equipment (such as monitors). An activated electrosurgical generator may cause interference with them. The interference can activate the OSD menu of the display and as such disrupt the functionality of the display.
- Page 60 Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall for withstanding the display's weight. Be sure to entrust the attachment of this equipment to the wall to licensed contractors of Barco and pay adequate attention to safety during the installation and usage. •...
-
Page 61: Environmental Information
Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”. - Page 62 Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
-
Page 63: Biological Hazard And Returns
Important information RoHS Directive 2011/65/EC on the restriction of certain hazardous substances in electrical and electronic equipment. According to what declared by our components suppliers, this product is RoHS compliant. 6.3 Biological hazard and returns Overview The structure and the specifications of this device as well as the materials used for manufacturing makes it easy to wipe and clean and therefore suitable to be used for various applications in hospitals and other medical environments, where procedures for frequent cleaning are specified. -
Page 64: Emc Notice
Important information Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC Class B (valid for MDSC-2326 LED(H) and MDSC-2326 DDI(H) version) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 65 Important information Electromagnetic environment – Compliance Emissions test Guidance RF emissions Group 1 The MDSC-2326 uses RF energy only for its internal function. CISPR 11 Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
- Page 66 Important information IEC 60601-1-2 4 edition Electromagnetic (2014) Immunity test Compliance level environment – guidance Test levels Voltage dips, short < 5% U (> 95% dip in < 5% U (> 95% dip in U Mains power quality interruptions and voltage ) for 0.5 cycle for 0.5 cycle should by that of a typical...
-
Page 67: Cleaning And Disinfection
Important information IEC 60601-1-2 4 edition Electromagnetic (2014) Immunity test Compliance level environment – guidance Test levels Interference may occur in the vicinity of equipment marked with symbol: At 80 MHz and 800 MHz, the higher frequency range applies. These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. -
Page 68: Explanation Of Symbols
Important information • Cidex® (2.4 percent glutaraldehyde solution) • Sodium hypochlorite (bleach) 10 percent • “Green soap” (USP) • 0.5 percent Chiorhexidine in 70 percent isopropyl alcohol. • Like Cleansafe® optical cleaning liquid • Surfanios • Bacillol AF 6.7 Explanation of symbols Symbols on the device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates the device meets the requirements of the applicable EC directives/... - Page 69 Important information Indicates the device is approved according to the RCM regulations. Indicates the device is approved according to the EAC regulations. Caution: Federal law (United Stated of America) restricts this device to sale by or on the order of a licensed healthcare practitioner. IS 13252 (Part 1) Indicates the device is approved according to the BIS regulations.
- Page 70 Important information Caution Consult the Instructions For Use. Consult the Instruction For Use on website address that is provided as eIFU indicator. eIFU indicator Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive.
-
Page 71: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. - Page 72 Important information Maximum luminance 500 cd/m² (panel typical) 400 cd/m² 'stabilized @6500K & ITU-709 Contrast ratio 1400:1 (panel typical) Response time (Tr + Tf) 18 ms (typical) Housing color White RAL 9003 Video inputs MDSC-2326 LED(H) DVI-I (Digital & Analog – HDMI support) 3G-SDI(1x BNC) DisplayPort 1.1a Component Video RGBS / YPbPr (4xBNC)
- Page 73 1x documentation disc, containing all translations of the User Guide 1x external power supply 4 screws, 4 dented washers and an Allen key Mains cables Optional accessories Barco stand (K9302097A) Power extension cable 10m (K3495066) Power extension cable 30m (K3495068) Warranty 3 years Operating temperature 10 ~ 35°C for performance / 0 ~ 40°C for safety...
- Page 74 Important information Timings DVI-VGA Hor. Fr. Vert. Fr. Hor. Vert. Item Name Pixel x Line Format (kHz) (Hz) Total Total 480i 720 x 487 NTSC 15,734 59,94 480p59 720 x 480 480p 31,47 59,94 480p60 720 x 480 480p 31,5 576i 720 x 576 PAL I...
- Page 75 Important information Hor. Fr. Vert. Fr. Hor. Vert. Item Name Pixel x Line Format (kHz) (Hz) Total Total VESA 640 x 350 37,9 VESA 640 x 400 24,8 56,3 640 x 400 31,5 70,0 (Diag. mode) VESA 640 x 400 37,9 85,0 Timings Comp - SOG...
-
Page 76: Open Source License Information
A list of the Open Source Software components used is available in the applicable EULA, through the “My Barco” section of the Barco website or through other (online) means. Copyright on each Open Source Software component belongs to the respective initial copyright holder, each... - Page 77 Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever.
- Page 78 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902135 (451920612565) /04 | 2020-02-27 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
