Instructions-Parts
SaniForce
Integrated Air Controls for use with Sanitary Supply Systems.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Model information.
Air Controls
3A5800C
Integrated Air Controls
ti10438a
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SaniForce Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco SaniForce Series

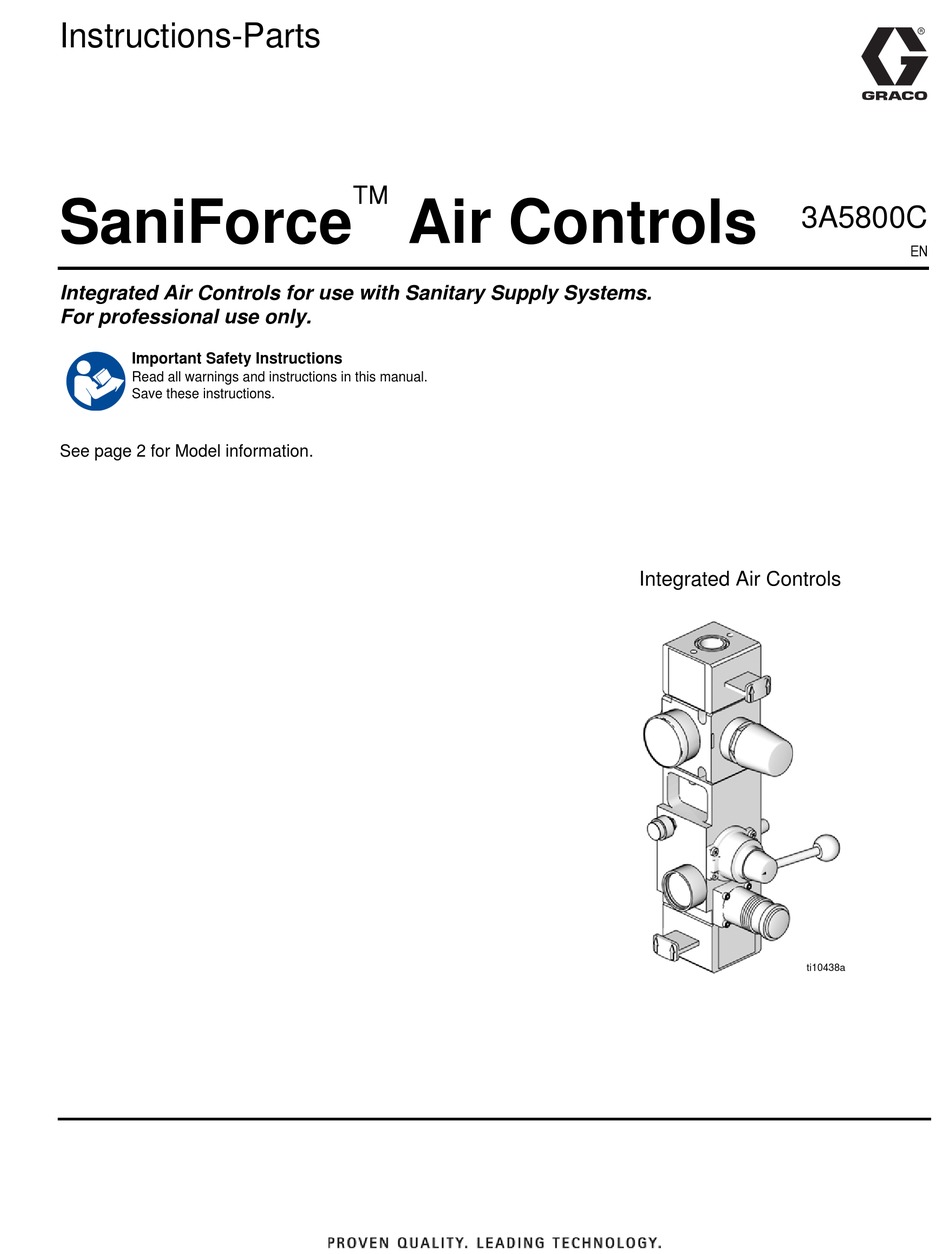

  • Page 1 Instructions-Parts  SaniForce Air Controls 3A5800C Integrated Air Controls for use with Sanitary Supply Systems. For professional use only. Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. See page 2 for Model information. Integrated Air Controls ti10438a...
  • Page 2: Table Of Contents

    Replace Air Motor Regulator ....5 Graco Information ......10 Replace Ram Air Regulator .
  • Page 3: Models

    Models Models Air Controls Maximum Regulated Working Model Pressure Description psi (MPa, bar) Air Inlet Size 100 (0.7, 7) 3/4 npt(f) Air Controls for SPU 5 gal (20 l) and SDU 55 gal (208 l) Sanitary 25M879 Supply Systems, Carbon Steel Frame, Static Seal 100 (0.7, 7) 3/4 npt(f) 25E030...
  • Page 4: Integrated Air Controls

    Integrated Air Controls Integrated Air Controls Disassembly WARNING Follow the Pressure Relief Procedure whenever you see this symbol. PRESSURIZED FLUID HAZARD WARNING This equipment stays pressurized until pressure is relieved manually. To help prevent serious injury from moving parts, or from pressurized fluid, such as splashing in the eyes or on skin, follow the Pressure Relief Procedure when you stop pumping and before you clean, check, or service the equipment.
  • Page 5: Replace Director Valve

    Integrated Air Controls • Source air supply (A1): facility air supply to power 7. Attach new director valve with screws (4a). Tighten SPU. screws until snug. • Air motor drive air (A2): air supply to drive pump air motor. • Main air slider valve (BA): turns air on and off to the system.
  • Page 6: Replace Ram Air Regulator

    Integrated Air Controls Replace Ram Air Regulator Numbers in parentheses refer to Parts, page 7. 1. Disassemble the air control. See Disassembly, page 4. 2. Remove four screws (7a) and take off the ram air regulator (7). 3. Replace o-rings (7b) on back side of regulator. 4.
  • Page 7: Parts

    Parts Parts Integrated Air Controls Models 25M879, 25E030, 25E650, 25E651 Ref. Part Description - - - MANIFOLD VALVE, shutoff (includes o-rings and screws) 121108 models 25M879, 25E030 16Y167 models 25E650, 25E651 VALVE, director (includes 4a and 4b, plus all parts shown in F .
  • Page 8: Pneumatic Schematic

    Pneumatic Schematic Pneumatic Schematic Integrated Air Control Module 25M879, 25E030 INTEGRATED AIR CONTROL MODULE Pump Pressure Air Motor Regulator Shutoff Pump Air MAIN Motor AIR IN Air Pressure Relief Valve Ram Pressure Ram Directional Ram Down Regulator Control Valve Blow Off Valve Platen DOWN...
  • Page 9: Integrated Air Control Module 25E650, 25E651

    Pneumatic Schematic Integrated Air Control Module 25E650, 25E651 AIR PRESSURE AIR PRESSURE RELIEF VALVE RELIEF VALVE SEAL PRESSURE INFLATABLE NEEDLE REGULATOR SEAL VALVE VALVE PUMP MAIN AIR (AIR MOTOR) SUPPLY AIR PRESSURE RELIEF VALVE MAIN AIR PUMP PRESSURE AIR MOTOR SHUTOFF REGULATOR SHUTOFF...
  • Page 10: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
