Control Panel; Setup And Adjustments - Lectrosonics DHu Quick Start Manual

Control Panel

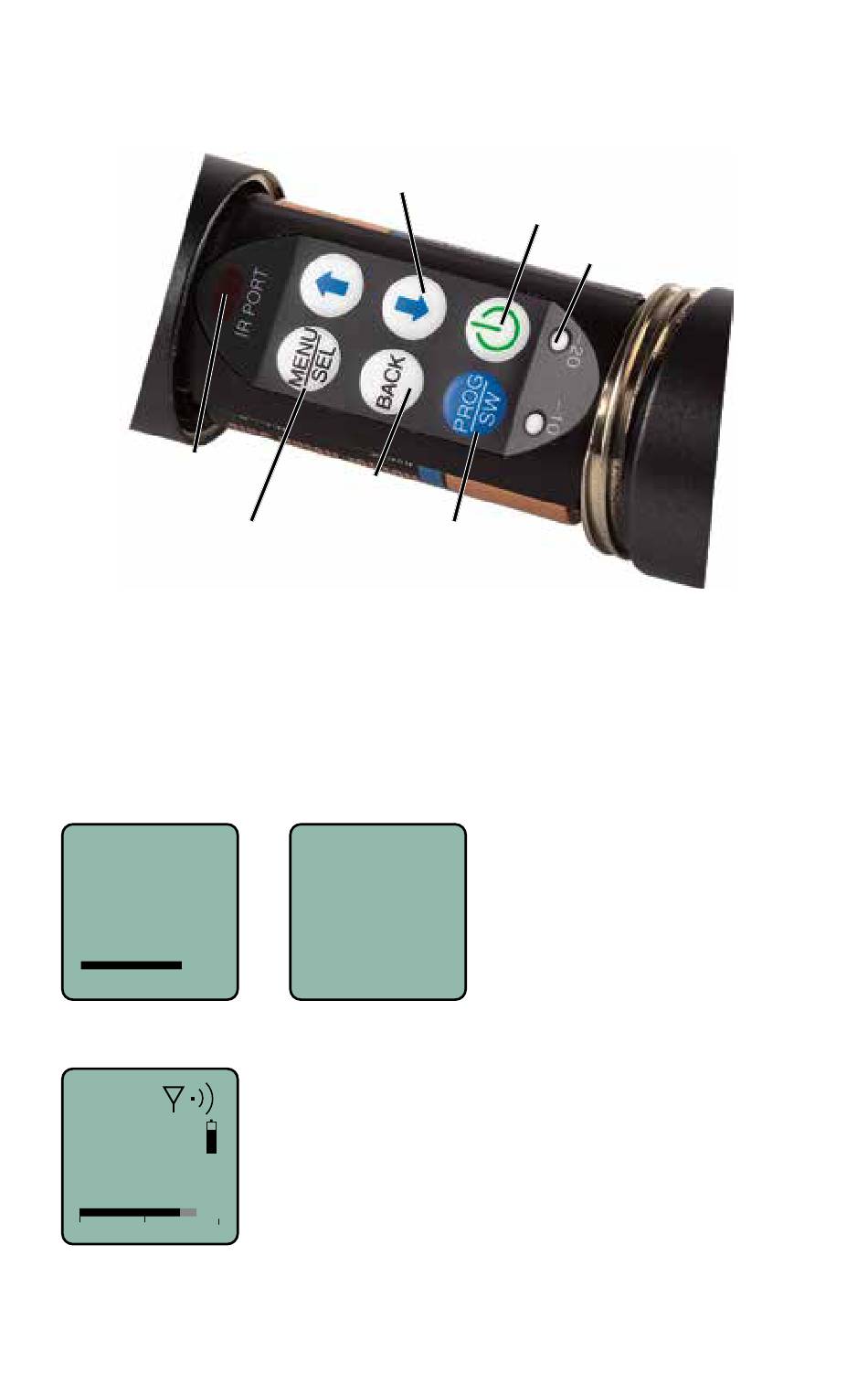

Six membrane switches on the control panel are used to set up the transmit-
ter by navigating the menus on the LCD and selecting the desired values.
IR Sync Port
Enter Menu and
Select Item

Setup and Adjustments

Powering On
Press and hold the Power Button until a status bar on the LCD is completed.
The status bar will appear on the LCD, followed by a display of the model,
firmware version, frequency band and compatibility mode.
Hold
for
Rf On
When you release the button, the unit will be operational with the RF output
turned ON and the Main Window displayed.
5
A
623.400
-40 -20
4
UP/DOWN Buttons for
Menu Item Selection
Previous
Screen
Programmable switch
DHu
V1.01
The Main Window
RF output ON
0
Power Button
setup button
