Lectrosonics DHu Quick Start Manual

Digital handheld transmitter
Hide thumbs Also See for DHu:
Table of Contents

Advertisement

Quick Links

Download this manual
Q
uick
S
tart
G
uide

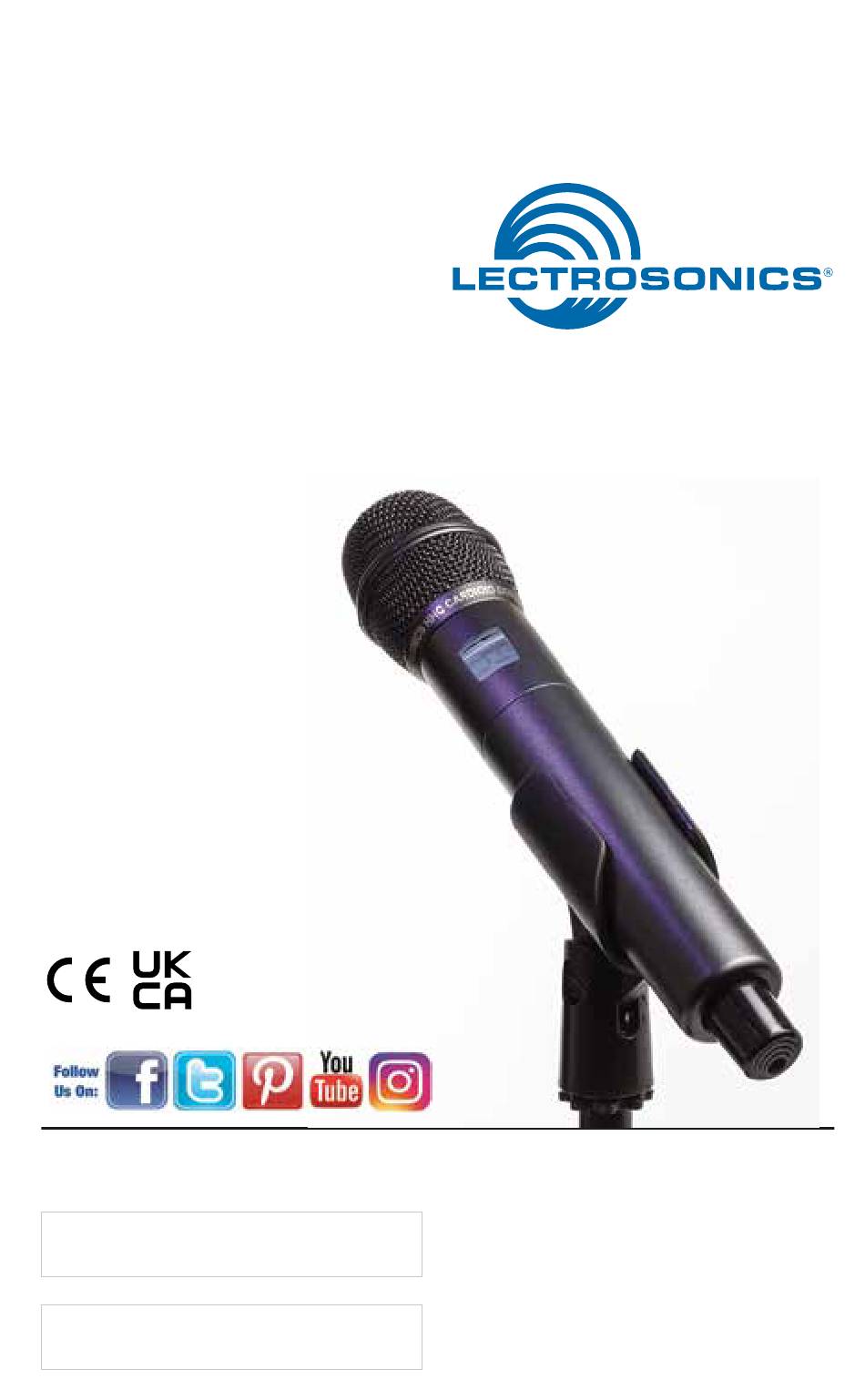

Digital Handheld
Transmitter
DHu, DHu/E01,
DHu/E01-B1C1
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist
with initial setup and operation of
your Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
U.S. Patent 7,225,135
12 September 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHu and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lectrosonics DHu

Summary of Contents for Lectrosonics DHu

  • Page 1 Digital Handheld Transmitter DHu, DHu/E01, DHu/E01-B1C1 U.S. Patent 7,225,135 This guide is intended to assist Fill in for your records: with initial setup and operation of Serial Number: your Lectrosonics product. For a detailed user manual, down-...

  • Page 2: Mechanical Assembly

    28 threads per inch and three contact rings Microphone Capsules: Lectrosonics offers two types of capsules. The HHC is the standard capsule and the HHVMC is the Variable Mic Capsule which includes adjustments for Bass, Midrange and Treble.

  • Page 3: Battery Installation

    Close eject is being handled. Pull the eject lever out- lever to install ward to remove the batteries. The battery batteries tips will move outward, making them easier to grasp. Pull eject lever outward to release batteries from contacts www.lectrosonics.com...

  • Page 4: Control Panel

    Hold V1.01 Rf On When you release the button, the unit will be operational with the RF output turned ON and the Main Window displayed. The Main Window RF output ON 623.400 LECTROSONICS, INC.

  • Page 5: Powering Off

    A notice will appear briefly confirming that the RF output of the trans- mitter is turned off, followed by the Main Window. The antenna symbol will blink as a reminder that the RF output is turned off. MUTE Symbol blinks 623.400 when RF output is turned OFF www.lectrosonics.com...

  • Page 6: Entering The Main Menu

    RF On/Off Audio Mute or Status Talkback status MUTE 545.400 Battery status Frequency (MHz) Audio level If the programmable switch function is set for Mute or Talkback, the Main Window will indicate that the function is enabled. LECTROSONICS, INC.
  • Page 7 Y e s A b o u t A b o u t D H u to go back. BACK V 1 . 1 3 / 2 . 0 0 www.lectrosonics.com...
  • Page 8 LECTROSONICS, INC.

  • Page 9: Setting Frequency

    Phase Nor mal Inver t Xmit Setting Frequency Frequency (mHz and kHz) in can be set by using the MENU/SEL button to choose mHz or kHz and the UP and DOWN arrows to adjust frequency. www.lectrosonics.com...
  • Page 10 Turn it back on to begin transmitting.. Use the UP and DOWN arrow buttons to toggle and MENU/SEL to save. TxPower Allows the transmitter output power to be set as 25 or 50 mW. Use the UP and DOWN arrow buttons to scroll and MENU/SEL to save. LECTROSONICS, INC.
  • Page 11 The programmable switch on the top panel can be configured using the menu to provide several functions: • (none) - disables the switch • Mute - mutes the audio when switched on; LCD will display a blinking “MUTE” and the -10 LED will glow solid red. www.lectrosonics.com...

  • Page 12: Selecting Battery Type

    Backlit Sets the screen backlight to be always on, on for 30 seconds or on for 5 seconds. Restoring Default Settings (Default) This is used to restore the factory settings. LECTROSONICS, INC.
  • Page 13 About This shows version and firmware information. www.lectrosonics.com...
  • Page 14 NOTE: When the button on the housing is set to Power, it will turn on the transmitter in the operating mode with the RF output on. Cough is a momentary mute switch. Audio is muted ProgSw while the button on the housing is held in. Cough LECTROSONICS, INC.
  • Page 15 The function of the Programmable Switch is displayed in the LCD Main Window. In the None and Power functions, no indication is displayed. In the Mute and Cough functions, the word MUTE is displayed. Reverse video MUTE MUTE 545.400 545.400 545.400 <–MUTE–> None/Power Mute/Cough Mute active (MUTE blinks) www.lectrosonics.com...

  • Page 16: Limited One-Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
