2.2 Sending GPS Position to the Intuicom RTK Bridge–X from the
Trimble
It may be desired to send the corrected position of the receiver to the network in order to view
the position quality on the network. The RTK Bridge-X can be configured to accept a GGA
position on the serial port and use that position to send to the network. To be able to send the
GGA position from the receiver:

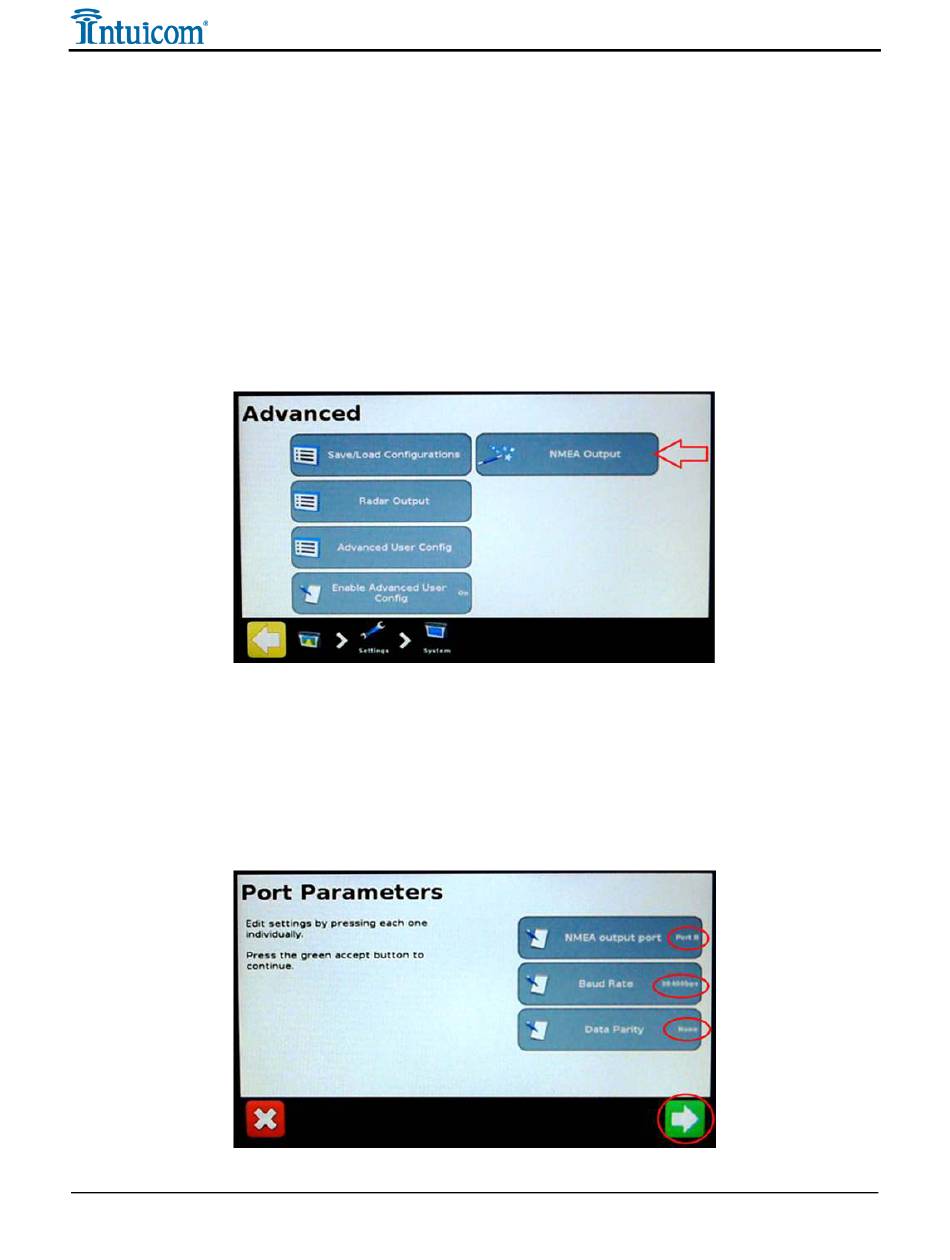

• From Main screen:
o Select "Settings"
o Select "System"
o Select "Advanced"
o Select "NMEA" Output
• This brings up the Port Parameters screen. Ensure the following settings are set:
o NMEA: Port B
o Baud rate: 38400
o Data Parity: None
• Continue by selecting the green check icon
