Intuicom RTK Bridge-X Installation Manual page 13

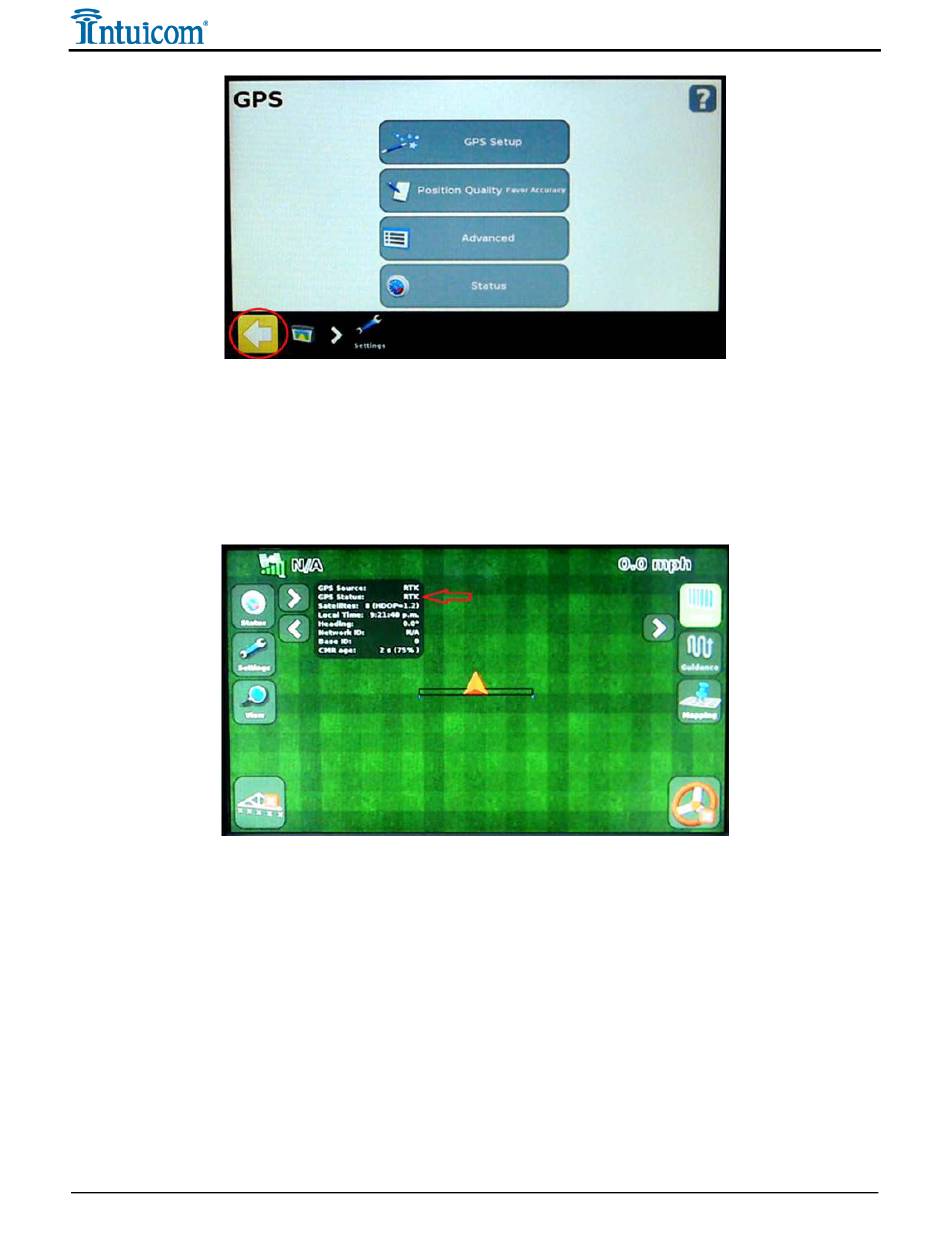

• From the Main screen, select the round "Status" icon from the uppermost left. A
small screen within the Main screen appears, displaying data about the Field name,
Field Area, and other parameters. Selecting the "Status" icon a second time brings up
another small screen which displays real time GPS data. From this screen, verify the
GPS Status is "RTK"
• Configuration is now complete. If it is desired to send GPS data from the Trimble®
CFX/Case IH FM-750 to the RTK Bridge-X to send to the network, then proceed to
Section 2.2.
Version 1.0
Section 2: Installation Instructions
11 Intuicom, Inc.
