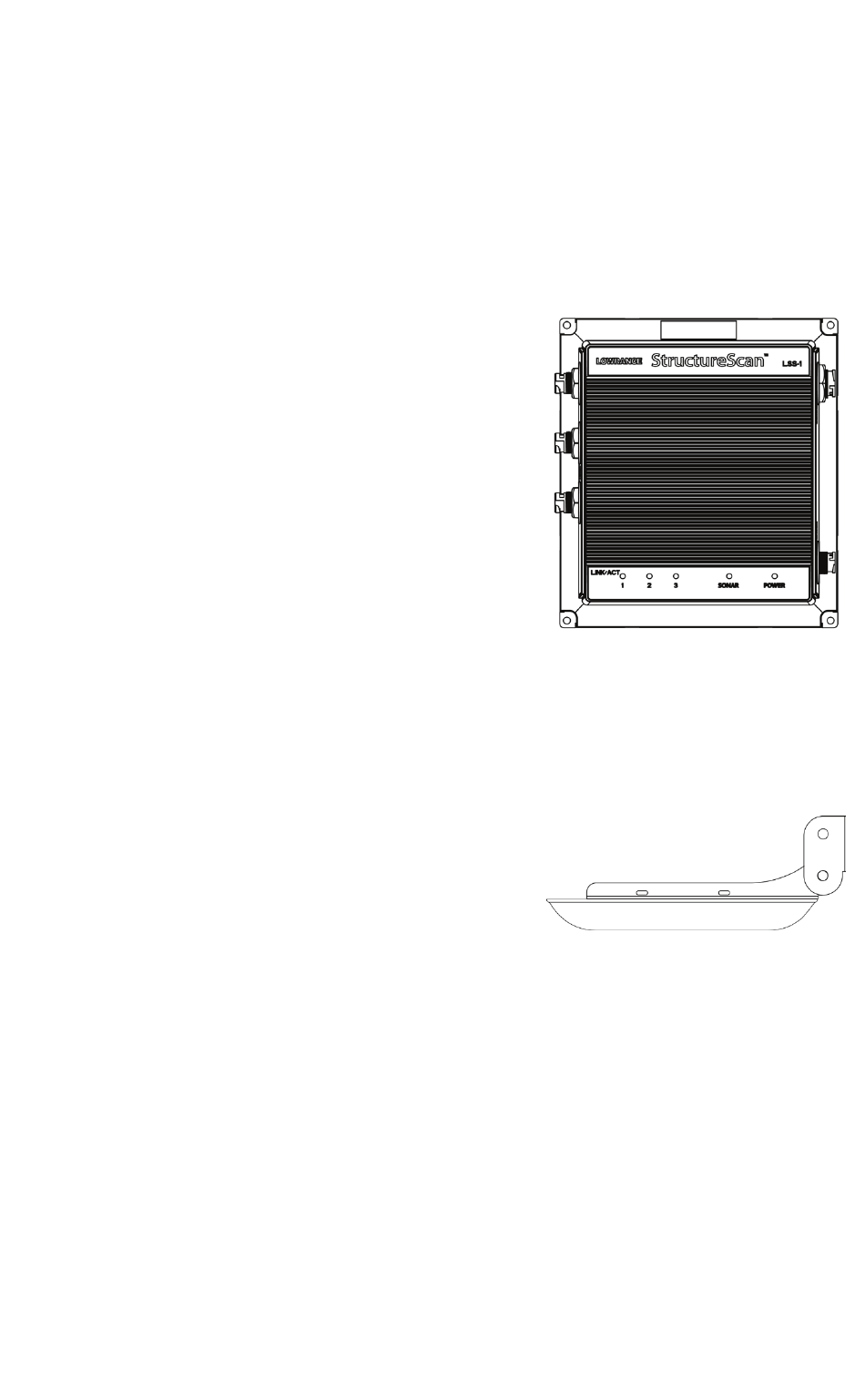

Mounting the LSS-1
The LSS-1 can be mounted under the dash, in the rod locker or in the battery
compartment. Select a mounting location that will protect the LSS-1 from standing
water.
To mount the LSS-1:
1.
Make sure the transducer cable is long enough to connect to the
LSS-1 from the desired transducer
mounting
transducer cable is not long enough,
a 10' extension cable is available (part
number: 000-00099-006).
2.
Place the LSS-1 into the desired
mounting
connectors will be easily accessible.
3.
Use a pencil to mark the LSS-1 mount-
ing holes.
4.
Drill the pilot holes.
5.
Use the supplied No. 8 self-tapping screws to mount the LSS-1 to
the location.
Transducer angle
After mounting the StructureScan transducer, make
sure the transducer is adjusted so it will be parallel
with the waterline when moving at trolling speed.
Downscan Overlay
The StructureScan transducer should be installed within approximately 1 foot of
the broadband sounder transducer to get optimum performance from the Downscan
Overlay feature.
It is recommended you turn off Downscan Overlay when using your trolling motor
as the sonar source, unless the StructureScan transducer and broadband sounder
transducer both are installed on the trolling motor.
Downscan overlay performance could be degraded if the StructureScan transducer
is too far away from the broadband sounder transducer installed on the trolling
motor.
location.
If
location
where
the
20'
the
5
