Installation; Mounting Options - Lowrance StructureScan Installation Manual

2.1"(55.5mm)

Installation

When mounting the StructureScan transducer, make sure the there is nothing around
the mounting location that could interfere with the StructureScan transducer sonar
beams.

Mounting Options

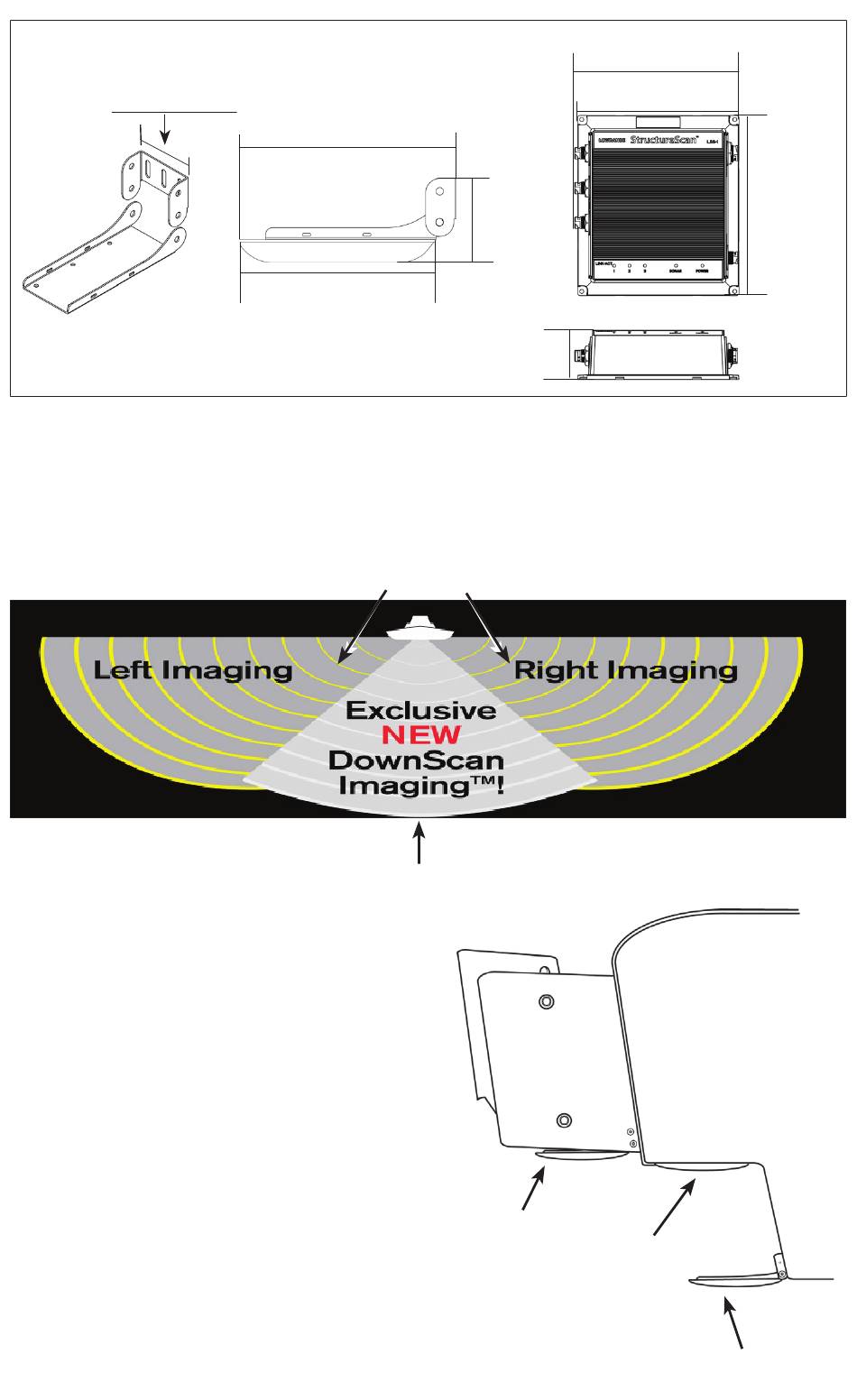

The StructureScan transducer can be
mounted on the transom, jackplate, step,
trolling motor or directly to your boat's
hull.
When mounting it directly to the hull,
you must purchase a high-quality,
marine grade above- or below-waterline
sealant/adhesive compound.
Use the following table to determine
which mounting option is best suited to
your boat/installation preferences.
7.5"(190.7mm)
6.8"(173.4mm)
Sidescan
Downscan Sonar
2
7.5"(191.mm)
7.4"(188mm)
2.8"
(72.7mm)
2.27"
(57.6mm)
Jackplate
Mount Step mount/
Direct mount
8.26"
(210mm)
Transom mount
