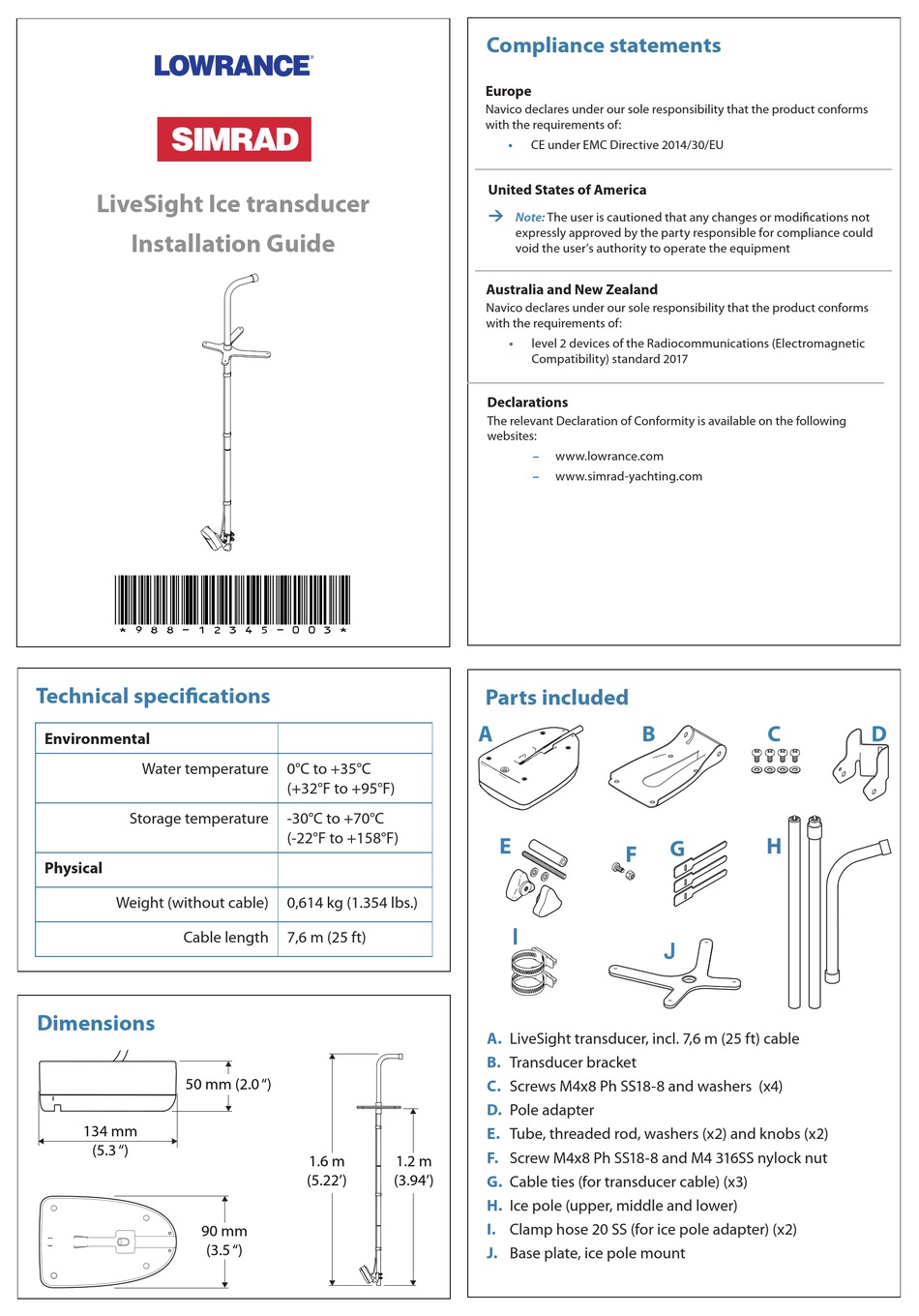

Lowrance SIMRAD Ice transducer Installation Manual

LiveSight Ice transducer
Installation Guide
*988-12345-003*
Technical specifications
Environmental
Water temperature
Storage temperature
Physical
Weight (without cable)
Cable length
Dimensions
50 mm (2.0 ")
134 mm
(5.3 ")
90 mm
(3.5 ")
0°C to +35°C
(+32°F to +95°F)
-30°C to +70°C
(-22°F to +158°F)
0,614 kg (1.354 lbs.)
7,6 m (25 ft)
1.6 m 1.2 m
(5.22') (3.94')
Compliance statements
Europe
Navico declares under our sole responsibility that the product conforms
with the requirements of:
• CE under EMC Directive 2014/30/EU
United States of America
¼
Note: The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment
Australia and New Zealand
Navico declares under our sole responsibility that the product conforms
with the requirements of:
• level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
Declarations
The relevant Declaration of Conformity is available on the following
websites:
–
www.lowrance.com
–
www.simrad-yachting.com
Parts included
A B
E
F
I
A.
LiveSight transducer, incl. 7,6 m (25 ft) cable
B.
Transducer bracket
C. Screws M4x8 Ph SS18-8 and washers (x4)
D.
Pole adapter
E.
Tube, threaded rod, washers (x2) and knobs (x2)
F. Screw M4x8 Ph SS18-8 and M4 316SS nylock nut
G.
Cable ties (for transducer cable) (x3)
H.
Ice pole (upper, middle and lower)
I. Clamp hose 20 SS (for ice pole adapter) (x2)
J.
Base plate, ice pole mount
C
H
G
J
D
