StructureScan Installation
Accessories
If you received this manual with a StructureScan accessory, you will notice that
some information in the document does not apply to the accessory. This manual has
installation instructions for your accessory, and accessory pack content tables on the
back cover.
Contents

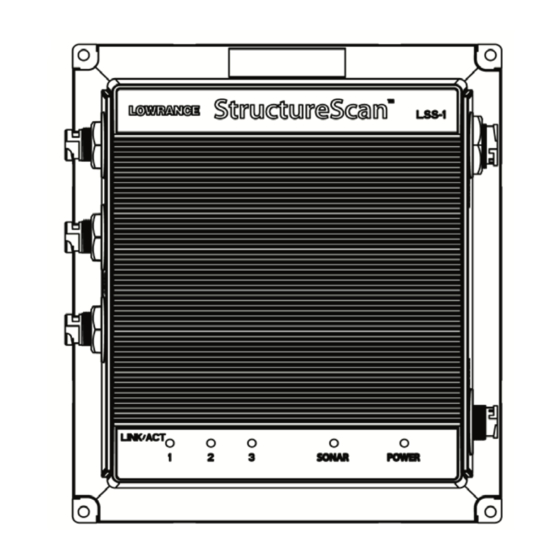

Your StructureScan box is packed with the LSS-1 black box, a Power cable, fuse
and fuse holder, StructureScan transducer, mounting bracket, 15 foot (4.5m) ethernet
cable and a hardware kit. The transducer has a 20 foot (6m) cable attached.
LSS-1 module, ethernet cable, StructureScan transducer, transducer
Transom mount screws (2)
Bracket Assembly bolts (2)
Bracket Assembly washers (4)
Bracket Assembly nuts (2)
Transducer attachment screws (6)
Required Tools and Supplies (Not Included)
mounting bracket and power cable.
Hardware Mounting Kit (Included)
Drill
Drill bits
Transducer attachment lock
nuts (6)
LSS-1 Mounting screws (4)
Closed end crimp connector (1)
Phillips (slotted-head) screwdriver
Marine grade above- or below-
waterline sealant
1
Zip ties (2)
Advertisement
Table of Contents
Related Manuals for Lowrance StructureScan
Summary of Contents for Lowrance StructureScan
- Page 1 Contents Your StructureScan box is packed with the LSS-1 black box, a Power cable, fuse and fuse holder, StructureScan transducer, mounting bracket, 15 foot (4.5m) ethernet cable and a hardware kit. The transducer has a 20 foot (6m) cable attached.
-
Page 2: Installation
(210mm) (72.7mm) 6.8”(173.4mm) 2.27” (57.6mm) Installation When mounting the StructureScan transducer, make sure the there is nothing around the mounting location that could interfere with the StructureScan transducer sonar beams. Sidescan Downscan Sonar Mounting Options The StructureScan transducer can be mounted on the transom, jackplate, step, trolling motor or directly to your boat’s... - Page 3 StructureScan Transducer Mounts • Keeps transducer in the water when the boat is on plane, allowing you to track bottom at high speeds Transom Mount • Transducer angle can be adjusted so it is parallel (Page 6) with the water •...
- Page 4 Bracket and Transducer assembly The StructureScan bracket comes with four washers, two bolts and two nuts. If you plan to mount the StructureScan transducer directly to the step (Step Mount) or on the trolling motor, you do not need to assemble the bracket.
-
Page 5: Transducer Angle
Downscan Overlay The StructureScan transducer should be installed within approximately 1 foot of the broadband sounder transducer to get optimum performance from the Downscan Overlay feature. -
Page 6: Transom Mount
Transom Mount The StructureScan transducer can be mounted just like a skimmer transducer, where it is in the water when you are on plane or can be mounted so it is only in the water, when you are moving at trolling speed. - Page 7 Jackplate Mount You can mount the StructureScan transducer inside or outside of the jackplate by drilling through the jackplate, then inserting bolts though hinge hole in the side of the bracket mount into the jackplate. Jackplate Mount Supplies (not included) M6 or 1/4”...
- Page 8 Step Mount Mounting the StructureScan transducer under the step not only protects the transducer from hitting objects in the water, but does not cause any drag on your boat when it is on plane. Step Mount Supplies (not included) Marine grade above- or below- 1/8”...
- Page 9 (not supplied). Do NOT overtighten the screws; otherwise you could strip out the fiberglass pilot holes or crack the mounting holes on the StructureScan transducer. Connect the transducer cable to the LSS-1 and then turn on the Flip Left/Right feature in your display unit.
- Page 10 Trolling Motor/Towfish Mount The StructureScan transducer can be mounted on a trolling motor or towfish with the purchase of a trolling motor mount accessory kit. Trolling Motor Mount (sold separately — p/n: 000-00099-004 Trolling motor bracket Hose Clamps (2) No 8. Transducer attachment screws (6)
- Page 11 If you connect the yellow wire to the yellow wire on your HDS unit, StructureScan will be turned on/off when the HDS unit is turned on/off. Refer to the Power/Data cable wiring diagram in your HDS Installation manual for more information.
-
Page 12: Visit Our Website
StructureScan LSS-1 Module (000-00099-002) LSS-1 mounting screws (4) Closed-end crimp connector Fuse and fuse holder StructureScan Trolling Motor Bracket (000-00099-004) Trolling motor bracket hose clamps (2) Zip ties (4) No. 8 transducer attachment screws (6) StructureScan Skimmer Bracket (000-00099-005) Transom mount screws (2)
