- Page 1 StructureScan 3D Transducer Installation manual ENGLISH www.simrad-yachting.com | www.lowrance.com...
- Page 2 CE under EMC directive 2014/30/EU • The requirements of level 2 devices of the Radiocommunications (Electromagnetic Compatibility) standard 2008 The relevant Declaration of Conformity is available at the following websites under the StructureScan 3D Transducer documentation section: • http://www.lowrance.com/ •...
- Page 3 ® ® StructureScan (StructureScan), and StructureScan (StructureScan HD). Copyright: Copyright © 2015 Navico Holding AS. Preface | StructureScan 3D Transducer...
- Page 4 Check the contents Included with the StructureScan 3D Transducer, is the transom mounting bracket, and a hardware mounting kit. The transducer has a 6 m (20 ft) cable attached. Hardware mounting kit (included) Transom mount screws #10x1-1/4" (3) Bracket assembly bolts M6x12mm (2)
- Page 5 Jackplate mount (Transom bracket) Direct Step mount (Flush bracket) Step mount (Transom bracket) Transom mount (Transom bracket) Installation | StructureScan 3D Transducer...
- Page 6 StructureScan 3D Transducer mounting options • Keeps transducer in the water when the boat is on plane, allowing you to track bottom at high speeds • Transducer angle can be adjusted so it is "Transom mount (Transom parallel with the water bracket)"...
- Page 7 The inside washer must be placed in the groove on the curved shield before putting the bolt through from the outside. Flush mount bracket assembly To mount the transducer directly to the step (Direct Step mount), use the flush mount bracket (sold separately). Installation | StructureScan 3D Transducer...
- Page 8 0.3 m (1 ft) of the broadband sounder transducer to get optimum performance from the Downscan Overlay feature. Downscan overlay feature performance could be degraded if the StructureScan 3D transducer is too far away from the broadband sounder transducer. Installation...
- Page 9 Transom mount (aluminum hull) supplies (not included) M4 Machine Screws Marine high-grade above- or below-waterline sealant/ adhesive compound Plastic isolating material such as King Starboard (prevents corrosion between bracket and aluminum hull) Installation | StructureScan 3D Transducer...
- Page 10 The illustration above shows the transom bracket mounted inside the jackplate. Note: Ú Sonar does not track bottom when the transducer is out of the water. Installation | StructureScan 3D Transducer...
- Page 11 Flip Left/Right feature in your display unit to ensure what is shown on the left and right side on your display corresponds with what is on the left and right side of your boat. Refer to your display unit's Operation manual for more information. Installation | StructureScan 3D Transducer...
- Page 12 After the transducer is connected and your boat is in the water, turn on the Flip Left/Right feature in your display unit to ensure what is shown on the left and right side on your display corresponds with Installation | StructureScan 3D Transducer...
- Page 13 Use a pencil to mark pilot holes through the mounting holes on the surface bracket. Drill the pilot holes. Apply a marine high-grade above- or below-waterline sealant/ adhesive compound to the pilot holes. Installation | StructureScan 3D Transducer...
-
Page 14: Connecting The Transducer

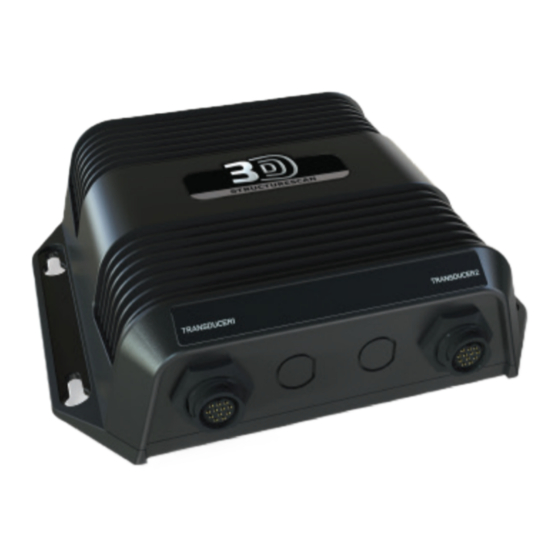

Refer to your display unit's Operation manual for more information. Connecting the transducer TRANSDUCER 1 TRANSDUCER 2 TRANSDUCER1 TRANSDUCER2 Installation | StructureScan 3D Transducer... - Page 15 (2.60 “) 258.30 mm (10.17“) Transducer cable 6 m (20’) 70 mm (2.75”) 230 mm (9.05”) 60 mm (2.36”) 60 mm (2.36”) 325 mm (12.79”) A 33mm (1.3”) diameter hole is recommended for cable clearance. Dimensions | StructureScan 3D Transducer...
- Page 16 Transom mount kit (000-12603-001) Includes transom mounting bracket, and bracket assembly and mounting screws, washers, and nuts. StructureScan 3D & TotalScan Skimmer Flush mount kit (000-12602-001) Includes 2 piece Flush mount mounting bracket. Use assembly and mounting hardware supplied with the transducer.
-
Page 17: Specifications
Optimum speed 16 kph (10 mph) or less Downscan specifications Max Depth 60 m (200 ft) Max Speed 88 kph (55 mph) Mark objects 56 kph (35 mph) Optimum speed 16 kph (10 mph) or less Specifications | StructureScan 3D Transducer... - Page 18 Troubleshooting tips Troubleshooting tips • Make sure StructureScan 3D module is powered • Check unit software is compatible StructureScan 3D • Make sure yellow wire is connected to data not displayed switched power source • Check fuse No Depth Check range or turn on auto range Data washed out / Turn down contrast;...
