BULLET SKIMMER
TRANSDUCER
INSTALLATION GUIDE
*988-13217-001*
In the box
A
B
C
D
E
A Transducer with cable
B Cable lock collar
C Transom mounting kit
1x bolt
1x locking nut
2x metal washers
2x rubber washers
1x bracket
1x ratchet
2x self-tapping
screws, No. 10
D Fuse and fuse holder
E Documentation

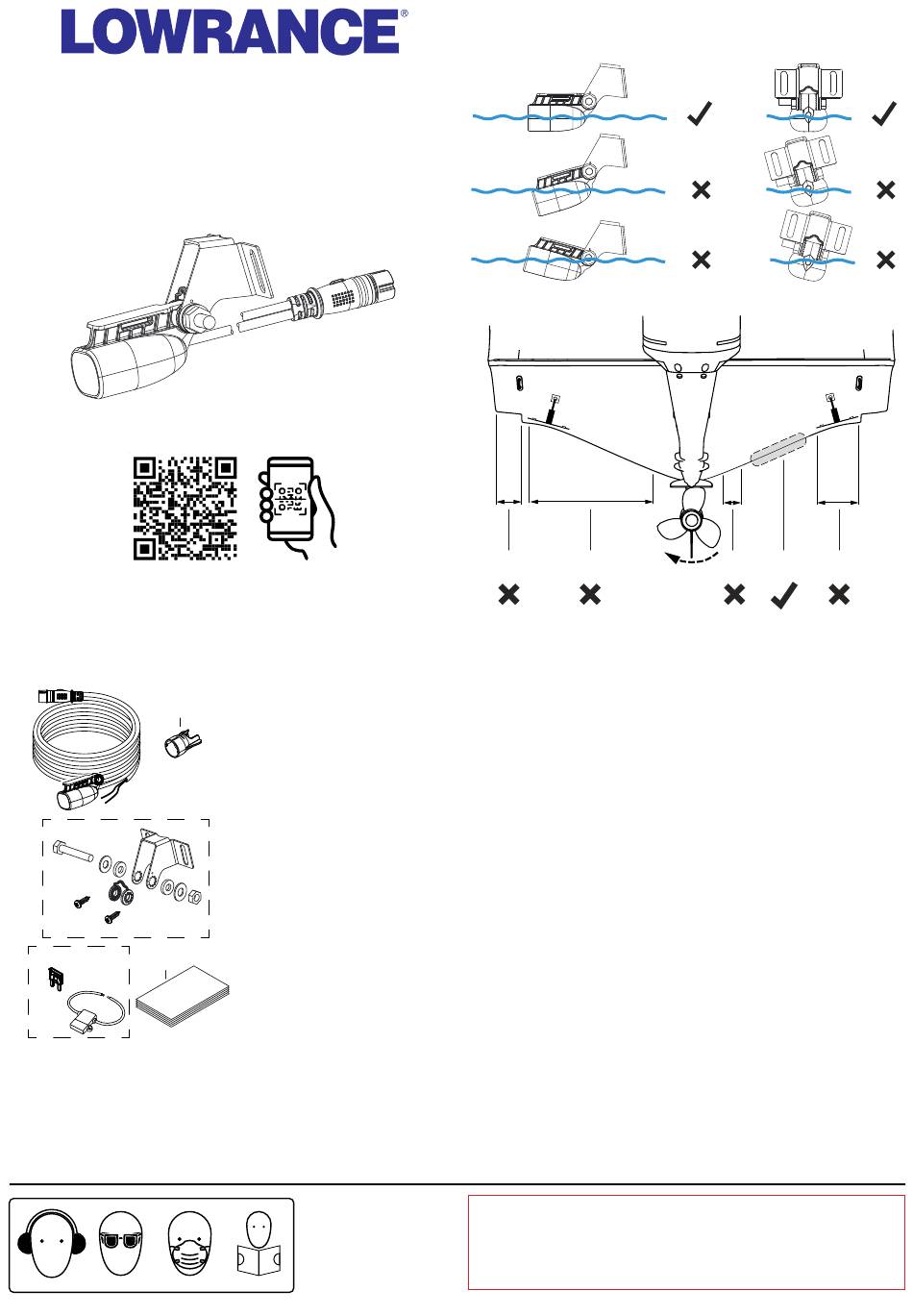

Transom mount guidelines
A
B
A Planing strake — avoid mounting
B Avoid mounting within 1 m (3.3 ft) to port (left) of propeller
C Avoid mounting within 7.5 cm (3 in) to starboard of
propeller
D Best mounting location — undisturbed water flow
E Trim tabs can cause turbulence — avoid mounting
Note:
¼
The example above describes a conventional
clockwise propeller rotation configuration. If the
propeller spins counter-clockwise, mount on the port
side.
Mount the transducer away from hull openings,
strakes, struts, trim tabs or any fittings that could
disturb water flow over the transducer.
If mounting the transducer in a location that comes
out of the water, for example when the boat is planing,
the sonar will not work while the transducer is out of
the water.
WARNING:
See the Transducers Safety, Disclaimer and
Compliance document included in the product packaging
for detailed warnings and other important safety
information regarding your transducer.
