Technical specifications
Environmental
Operating temperature
-15°C to +55° C (+5°F to +131°F)
Storage temperature
-30°C to +70°C (-22°F to +158°F)
Sonar
Output
Traditional, SideScan imaging,
DownScan imaging and
temperature
Frequency
Traditional
200 kHz / High Chirp
83 kHz / Medium Chirp
SideScan
455 kHz
800 kHz
Maximum depth*
Traditional
305 m (1000 ft) at 200 kHz / High Chirp and
83 kHz / Medium Chirp
DownScan
91 m (300 ft)
SideScan
91 m (300 ft) side range at 455 kHz
46 m (150 ft) side range at 800 kHz
* The maximum depth can vary depending on the output power of the
equipment the transducer is connected to.

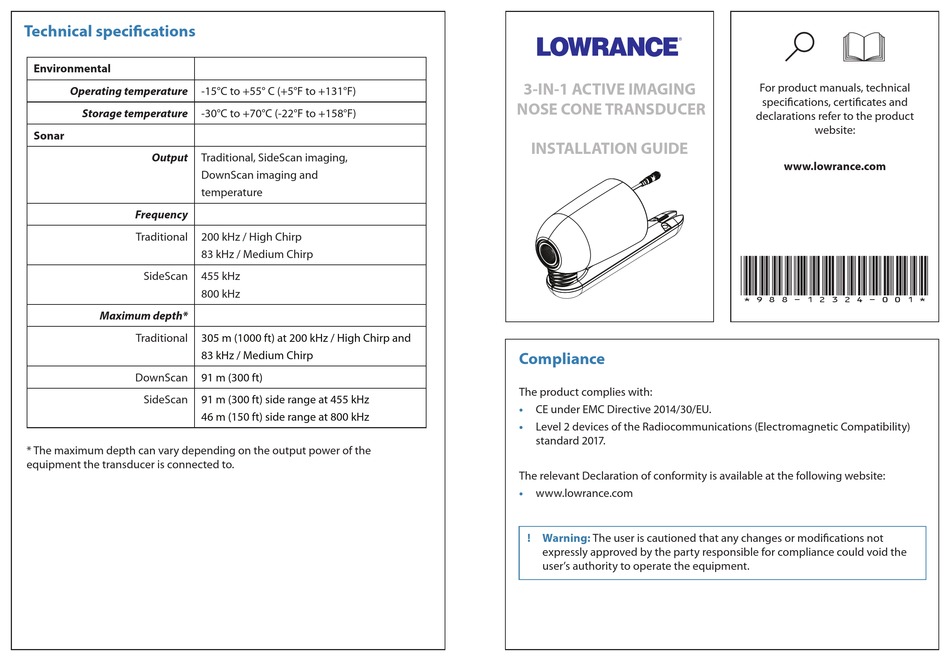

3-IN-1 ACTIVE IMAGING
NOSE CONE TRANSDUCER
INSTALLATION GUIDE
Compliance
The product complies with:
•
CE under EMC Directive 2014/30/EU.
•
Level 2 devices of the Radiocommunications (Electromagnetic Compatibility)
standard 2017.
The relevant Declaration of conformity is available at the following website:
•
www.lowrance.com
! Warning:
The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
For product manuals, technical
specifications, certificates and
declarations refer to the product
website:
www.lowrance.com
