4. INSTALLATION

All heavy-duty Opera-GH jackshaft operators are tested and adjusted at the factory. When installing your unit,
please note that the limit cams are resting in the center of the cam-shaft.

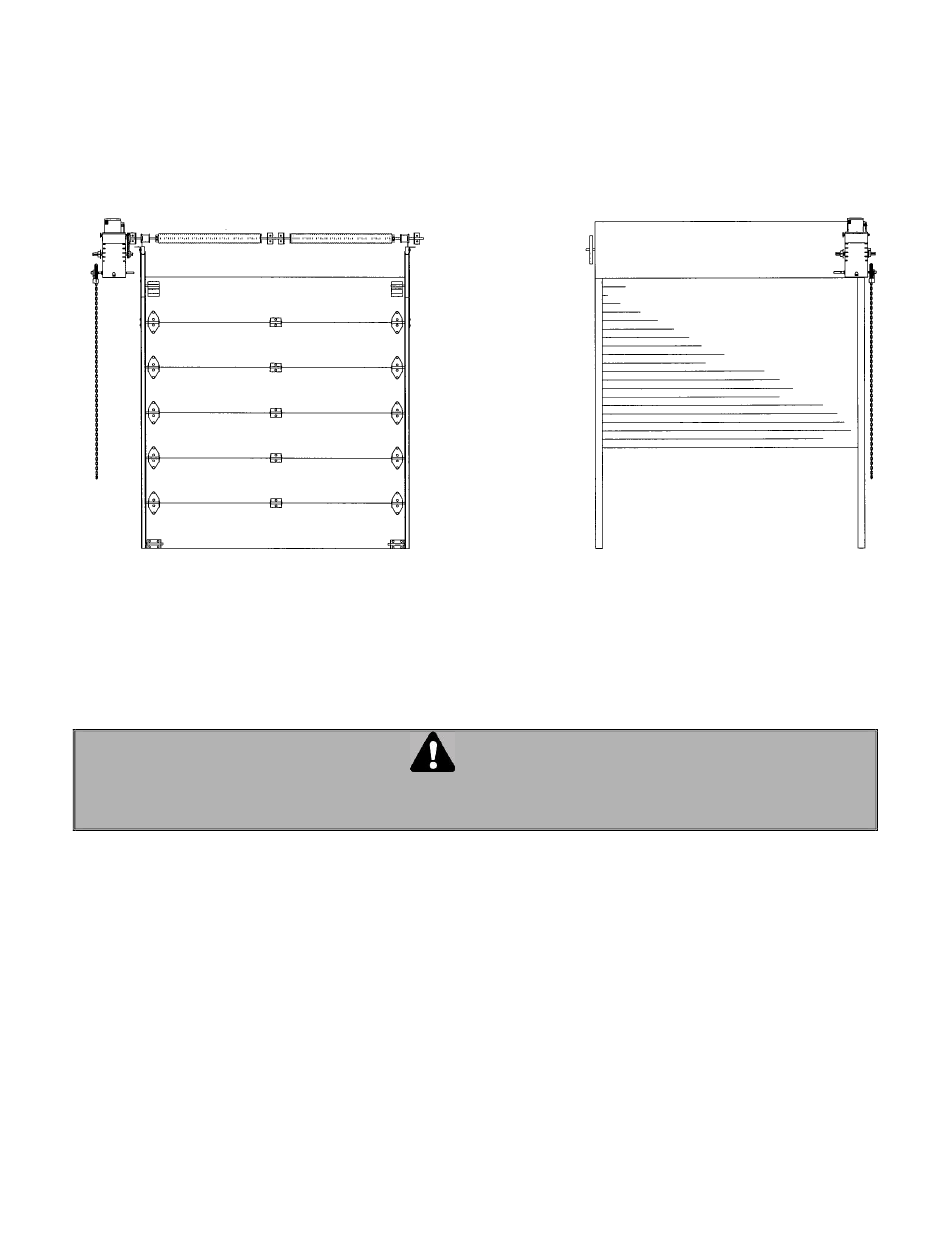

The Opera-GH operator has a dual output shaft and may be mounted on either the left or right hand side of a
sectional door (see Figure 2 and Figure 3). Place sprocket on either the right or the left end of the output shaft
according to the desired handing.
Figure 2
4.1 IMPORTANT INSTALLATION INSTRUCTIONS
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH, READ AND FOLLOW ALL INSTALLATION
1. Installation of this door operator must be done by a qualified installer.
2. Insure that the door is properly installed and works freely in both directions. Do not install the operator until all
door problems have been corrected. If necessary, oil all moving parts (chains, rollers, guides, etc.).
3. Remove all old accessories (locks, bolts, etc.) before installing door operator.
4. Do not connect the operator to a source of power until instructed to do so.
5. Locate control push-button station within sight of the door, at a minimum height of 5 ft. (1.5 m) so small
children cannot reach it, and away from all moving parts of the door.
6
Left side mount
WARNING
INSTRUCTIONS.
Figure 3
Right side Hood Mount
